Sony Trinitron KV-BM14M70 - 1 Disassembly; Rear Cover Removal; Speaker Removal; Chassis Assy Removal

– 6 –
KV-BM14M70
RM-W101
1 Two screw
(+BVTP 3 × 12)
1 Rear cover
2 Six screws
(+BVTP 4 × 16)
1 Terminal
bracket
3 Two screw
(+BVTP 4 × 16)
2 One screw
(+BVTP 3 × 16)
1 A board

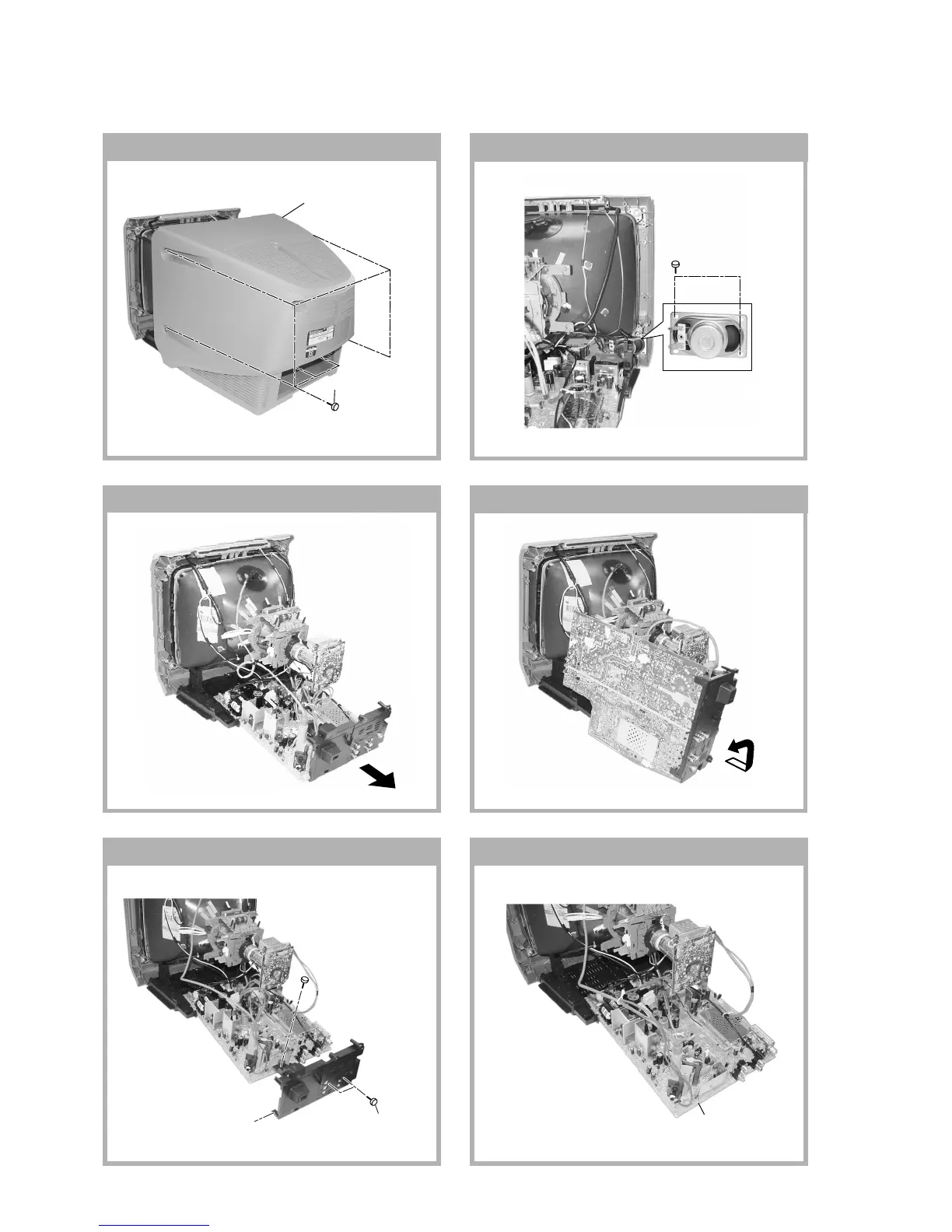

SECTION 1
DISASSEMBLY
1-2. SPEAKER REMOVAL
1-3. CHASSIS ASSY REMOVAL
1-4. SERVICE POSITION
1-5. TERMINAL BRACKET REMOVAL 1-6. A BOARD REMOVAL
1-1. REAR COVER REMOVAL
