Sony TRINITRON KV-PG14L70 - Exploded Views; Picture Tube and Chassis

– 39 –
KV-PG14P40/PG14L70/PG14L70/H
RM-952
4
25
7
8
8
9
10
12
14
15
26
5
17
13
6
16
18
20
21
23
22
19
11
1
2
24
3
SECTION 6
EXPLODED VIEWS
• Items marked " ∗ " are not stocked since
they are seldom required for routine
service. Some delay should be
anticipated when ordering these items.
The components identified by
shading and mark ! are critical
for safety.
Replace only with part number
specified.
NOTE:
• Items with no part number and no
description are not stocked because
they are seldom required for routine
service.
• The construction parts of an assembled
part are indicated with a collation
number in the remark column.

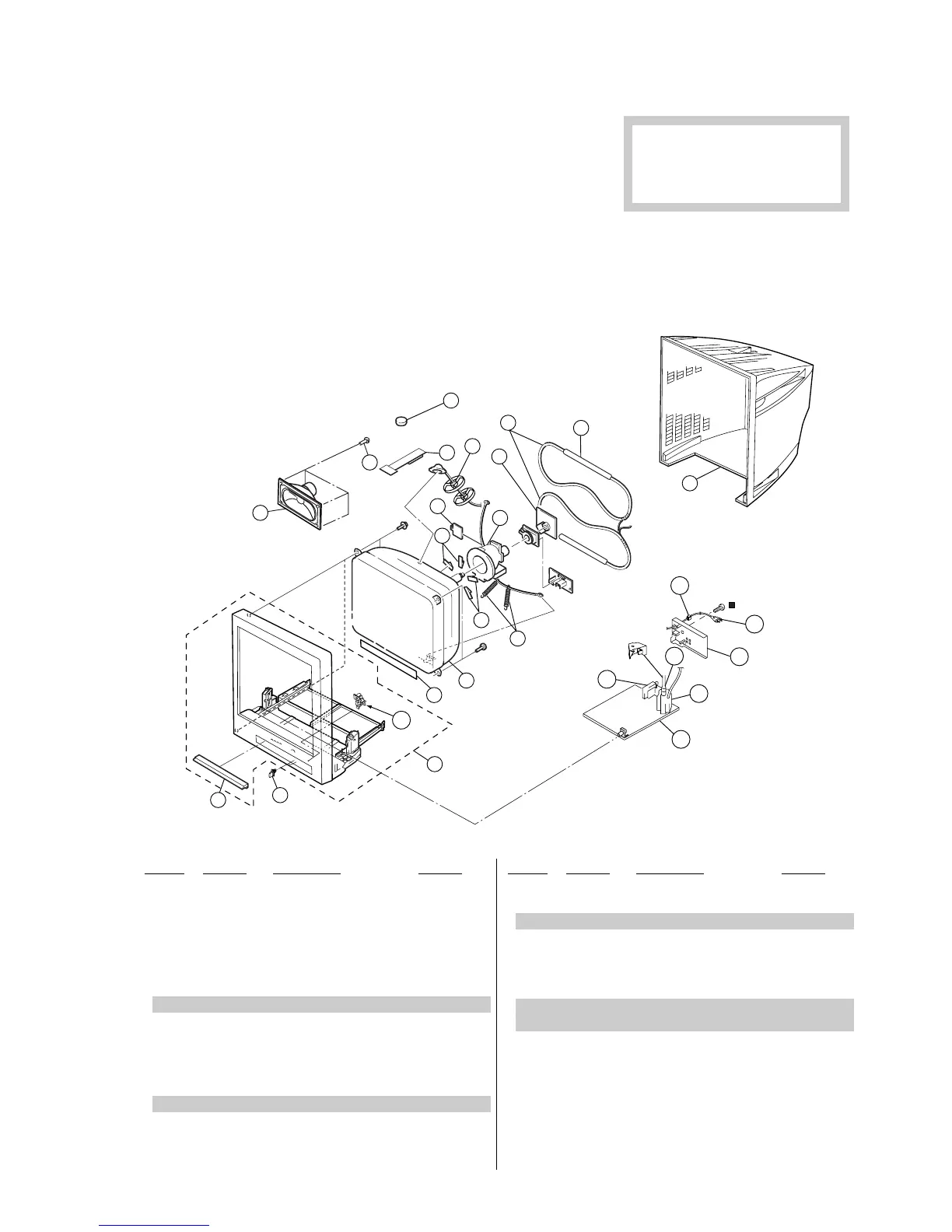

6-1. PICTURE TUBE AND CHASSIS
r : 7-685-648-79 SCREW +BVTP 3 × 12
p : 7-685-663-71 SCREW +BVTP 4 × 16
Caution : Do not take out CRT Support block while TV set in standing position.
1 X-4039-346-1 BEZNET ASSY 3, 24
(KV-PG14P40/PG14L70)
X-4039-255-1 BEZNET ASSY 3, 24
(KV-PG14L70/H)
2 4-081-868-01 BUTTON POWER
3 X-4039-301-1 DOOR ASSY, CONTROL (KV-PG14P40)
X-4039-269-1 DOOR ASSY, CONTROL (KV-PG14L70/H)
X-4039-303-1 DOOR ASSY, CONTROL (KV-PG14L70)
4 ! 8-735-570-05 PICTURE TUBE (A34LRG70X)
5 1-452-032-00 MAGNET DISC
6 4-082-275-01 COVER REAR ( p 8 SCREWS)
7 * 3-704-372-11 HOLDER HV CABLE
8 4-081-577-01 SPACER (S) DY
9 4-077-228-02 PIECE TLH CONVERGENCE
10 ! 8-451-401-11 DEFLECTION YOKE (Y14RSA-S)
11 1-900-212-58 LEAD ASSY FOCUS
12 * A-1332-226-A C BOARD MOUNTED
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
13 4-365-808-01 SCREW (5) TAPPING
14 4-078-765-01 SPRING EXTENSION
15 ! 1-419-185-11 COIL, DEGAUSSING
16 1-505-547-21 SPEAKER (5 x 9CM) ( r 4 SCREWS)
17 4-051-736-42 PIECE A (90) CONV, CORRECT
18 * A-1299-614-A A BOARD COMPLETE (KV-PG14P40)
* A-1299-591-A A BOARD COMPLETE (except KV-PG14P40)
19 ! 1-453-309-21 TRANSFORMER ASSY FLYBACK
(NX-4450//M3A4)
20 8-598-591-00 TUNER BT-AG402
21 4-022-115-00 HOLDER AC CORD
22 4-059-710-01 BRACKET TERMINAL BOARD ( p 1 SCREW)
23 1-574-062-11 CORD POWER WITH CONNECTOR
24 * 4-081-867-01 BAR OPTICAL
25 4-070-789-02 SHEET BLOTTING
26 4-072-857-02 CUSHION DGC
