Sony Trinitron PVM-14L4 Service Manual

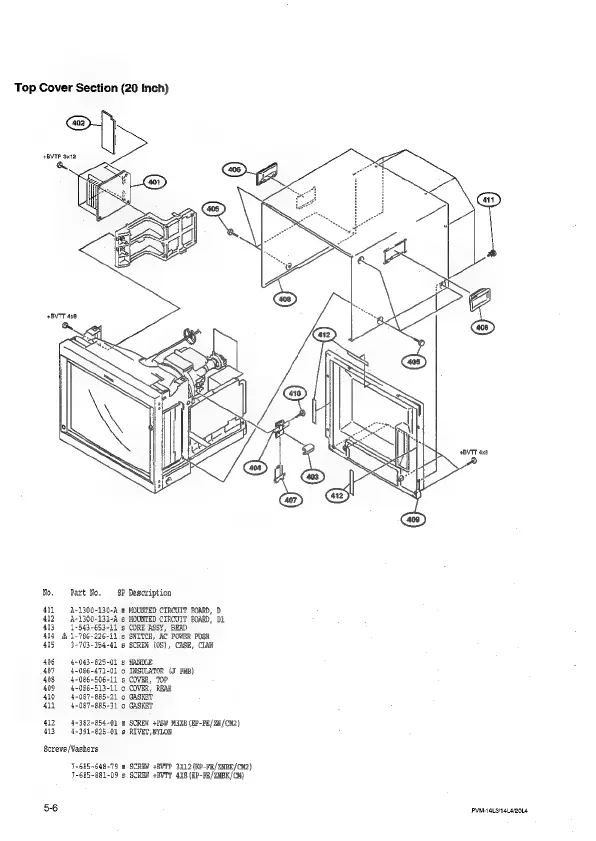

Top Cover Section (20 Inch)
+BVTP 3x12
No. Part No, SP Description
401 B-1300-130-A s MOUNTED CIRCUIT BOARD, D
402 A-1300-131-A s MOUNTED CIRCUIT BOARD, DL
403 1-543-653-11 s CORE ASSY, BRAD
404 A 1-786-226-11.s SNITCH, AC POWER PUSH
405 3-703-354-41 s SCREW (0S), CASE, CLAW
406 4-043-825-01 s HANDLE
407 4-086-471-01 o INSULATOR (J PWB)
408 4-086-506-11 s COVER, TOP
409 4-086-513-11 0
410 4-087-885-21 0 GASKET
411 4-087-885-31 0 GASKET
412 4-382-854-01 ¢ SCREW +PSi M3X8 (EP-FE/ZN/CM2)
413 4-391-825-01 s RIVET, NYLON
Screws flashers
7-685~648-79 s SCREW +BVEP 3X12 {BP-FE/ZNBK/CM2)
7-685-881-09 s SCREW +BVIT 4X8 (RP-FE/ZNBK/CH)
5-6
PYM-14L9/14L4/20L4
