Sony Trinitron PVM-14L4 Service Manual

No. Part No, SP Description
501 A-1300-109-A 8 MOUNTED CIRCUIT BOARD, HA
502 A-1300-127-A 8 MOUNTED CIRCUIT BOARD, HB
503 A-1391-158-A s MOUNTED CIRCUIT BOARD, X
504 -X-4039-740-2 s BRAEL ASSY
505 3-701-822-00 s HOLDER, WIRE
506 . 4-086-484-01 s BUTTON, POWER
507 4~086-502-01 o LABEL (R/U), CONTROL
508 4~086-505-01 o LABEL (R), CONTROL
509 © 4-086-507-11 o LABEL (L), CONTROL
510 4-086-508-01 o BUTTON (R}, MULTI
SLL 4+086-509-11 0 BUTTON {L}), MULTI
512 4-086-511-02 0 SWITCH; SHAFT
513 4-086-740-01 o LABEL (L/U}, CONTROL
Screws/tashers
7-682-548-09 s SCREW +B 3X8
7-685-648-79 s SCREW +BVIP 3X12 (EP-FE/ZNBK/CM2}
PYM-14La/t4L420L4

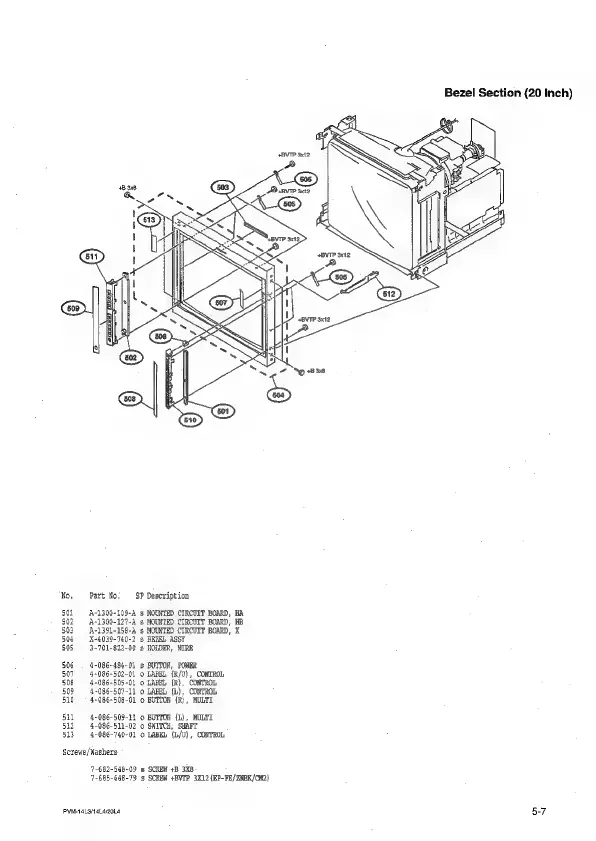

Bezel Section (20 Inch)
5-7
