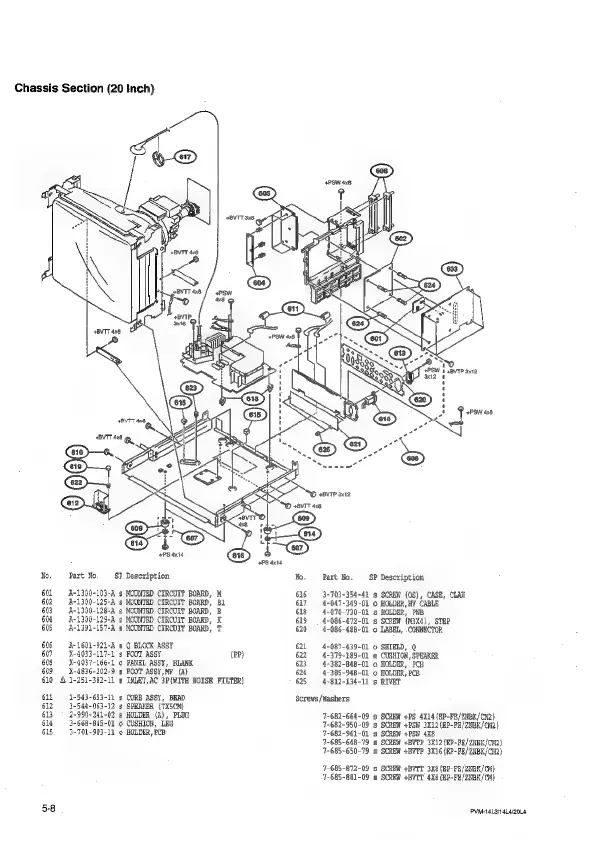

Sony Trinitron PVM-14L4 Service Manual

Chassis Section (20 Inch)
5-8
Part No,
SP Description
A-1300-103-A s MOUNTED CIRCUIT BOARD, M
B-1300-125-A s¢ MOUNTED CIRCUIT BOARD, B:
A-1300-128-A s MOUNTED CIRCUIT BOARD, B
4-1300-129-A s MOUNTED CIRCUIT BOARD, K
A-1391-157-A s MOUNTED CIRCUIT BOARD, T
A-1602-921-A s Q BLOCK ASSY
%-4033-117-1 s FOOT ASSY (BP)
X-4037-166-1 0 PANEL ASSY, BLANK
X-4836-202-9 s POOT ASSY,MF (A)
4 1-251-362-11 § INLET,AC 3P(WITH NOISE FILTER)
1-543-653-i1 s CORE ASSY, BEAD
1-544-063-12 s SPEAKER (7X5CM}
2-990-241-02 8 HOLDER (4), PLUG
3-668-845-01 0 CUSHION, LEG
3-701-903-11 9 HOLDER, PCB
i +PSW 48
bh. Part No. SP Description
616 3~-703-354-41 s SCREW (08), CASE, CLAW
6i7 4-047-349-01 © HOLDER, HV CABLE
618 4-070-730-01 s HOLDER, PHB
619 4-086-472-01 s SCREW (M3X4), STEP
620 © 4-086-488-01 0 LABEL, CONNECTOR
6a 4-087-439-01 0 SHIELD, Q
622 4-379-189-01 0 CUSHION, SPEAKER
623 4-382-848-01 o HOLDER, * PCB
624 4-385-948-01 © HOLDER, PCB
625, 4-812-134-11 5 RIVET
Screws /Washers
7-682-664-09 s SCREW +PS 4X14 (RP-FR/ZNBK/CN2)
7-682-950-09 s SCREW +PSN 3X12 (RP-PE/ZNBK/CN2)}
7-682-961-01 s SCREW +PSW 4X8
7-685-648-79 s SCREW +BVTP 3X12 (EP-PE/ZNBK/CM2)
7-685-650-79 $ SCREW 4BVPP 3X16{RP-FB/ZNBK/CN2}
7-685-872-09 s SCREW +BVIT 3X8 (EP-FE/ZNBK/CH)
7-685-881-09 s SCREW +BVIT 4X8 (BP-FE/ZNBK/CM)
PYM-14L9/14L4/20L4
