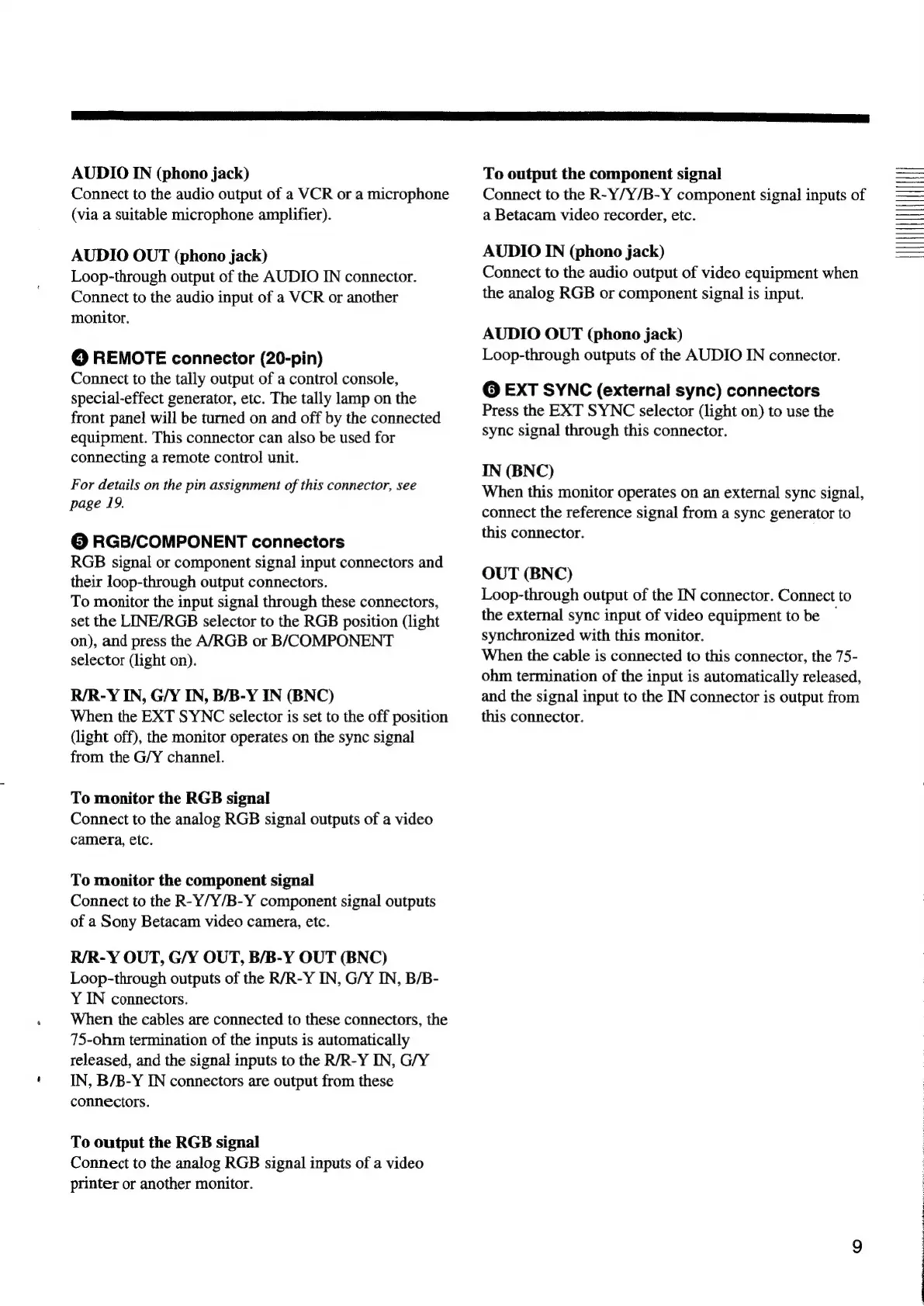

AUDIO
IN
(phono
jack)
Connect
to
the
audio
output
of
a
VCR
or
a
microphone
(via
a
suitable
microphone
amplifier).
AUDIO
OUT
(phono
jack)
Loop-through
output
of
the
AUDIO
IN
connector.
Connect
to
the
audio
input
of
a
VCR
or
another
monitor.
©
REMOTE
connector
(20-pin)
Connect
to
the
tally
output
of
a
control
console,
special-effect
generator,
etc.
The
tally
lamp
on
the
front
panel
will
be
turned
on
and
off
by
the
connected
equipment.
This
connector
can
also
be
used
for
connecting
a
remote
control
unit.
For
details
on
the
pin
assignment
of
this
connector,
see
page
19.
©
RGB/COMPONENT
connectors
RGB
signal
or
component
signal
input
connectors
and
their
loop-through
output
connectors.
To
monitor
the
input
signal
through
these
connectors,
set
the
LINE/RGB
selector
to
the
RGB
position
(light
on),
and
press
the
A/RGB
or
B/;COMPONENT
selector
(light
on).
R/R-Y
IN,
G/Y
IN,
B/B-Y
IN
(BNC)
When
the
EXT
SYNC
selector
is
set
to
the
off
position
(light
off),
the
monitor
operates
on
the
sync
signal
from
the
G/Y
channel.
To
monitor
the
RGB
signal
Connect
to
the
analog
RGB
signal
outputs
of
a
video
camera,
etc.
To
monitor
the
component
signal
Connect
to
the
R-Y/Y/B-Y
component
signal
outputs
of
a
Sony
Betacam
video
camera,
etc.
R/R-Y
OUT,
G/Y
OUT,
B/B-Y
OUT
(BNC)
Loop-through
outputs
of
the
R/R-Y
IN,
G/Y
IN,
B/B-
Y
IN
connectors.
When
the
cables
are
connected
to
these
connectors,
the
75-ohm
termination
of
the
inputs
is
automatically
released,
and
the
signal
inputs
to
the
R/R-Y
IN,
G/Y
IN,
B/B-Y
IN
connectors
are
output
from
these
connectors.
To
output
the
RGB
signal
Connect
to
the
analog
RGB
signal
inputs
of
a
video
printer
or
another
monitor.
To
output
the
component
signal
Connect
to
the
R-Y/Y/B-Y
component
signal
inputs
of
a
Betacam
video
recorder,
etc.
AUDIO
IN
(phono
jack)
Connect
to
the
audio
output
of
video
equipment
when
the
analog
RGB
or
component
signal
is
input.
AUDIO
OUT
(phono
jack)
Loop-through
outputs
of
the
AUDIO
IN
connector.
@
EXT
SYNC
(external
sync)
connectors
Press
the
EXT
SYNC
selector
(light
on)
to
use
the
sync
signal
through
this
connector.
IN
(BNC)
When
this
monitor
operates
on
an
external
sync
signal,
connect
the
reference
signal
from
a
sync
generator
to
this
connector.
OUT
(BNC)
Loop-through
output
of
the
IN
connector.
Connect
to
the
external
sync
input
of
video
equipment
to
be
—
synchronized
with
this
monitor.
When
the
cable
is
connected
to
this
connector,
the
75-
ohm
termination
of
the
input
is
automatically
released,
and
the
signal
input
to
the
IN
connector
is
output
from
this
connector.
