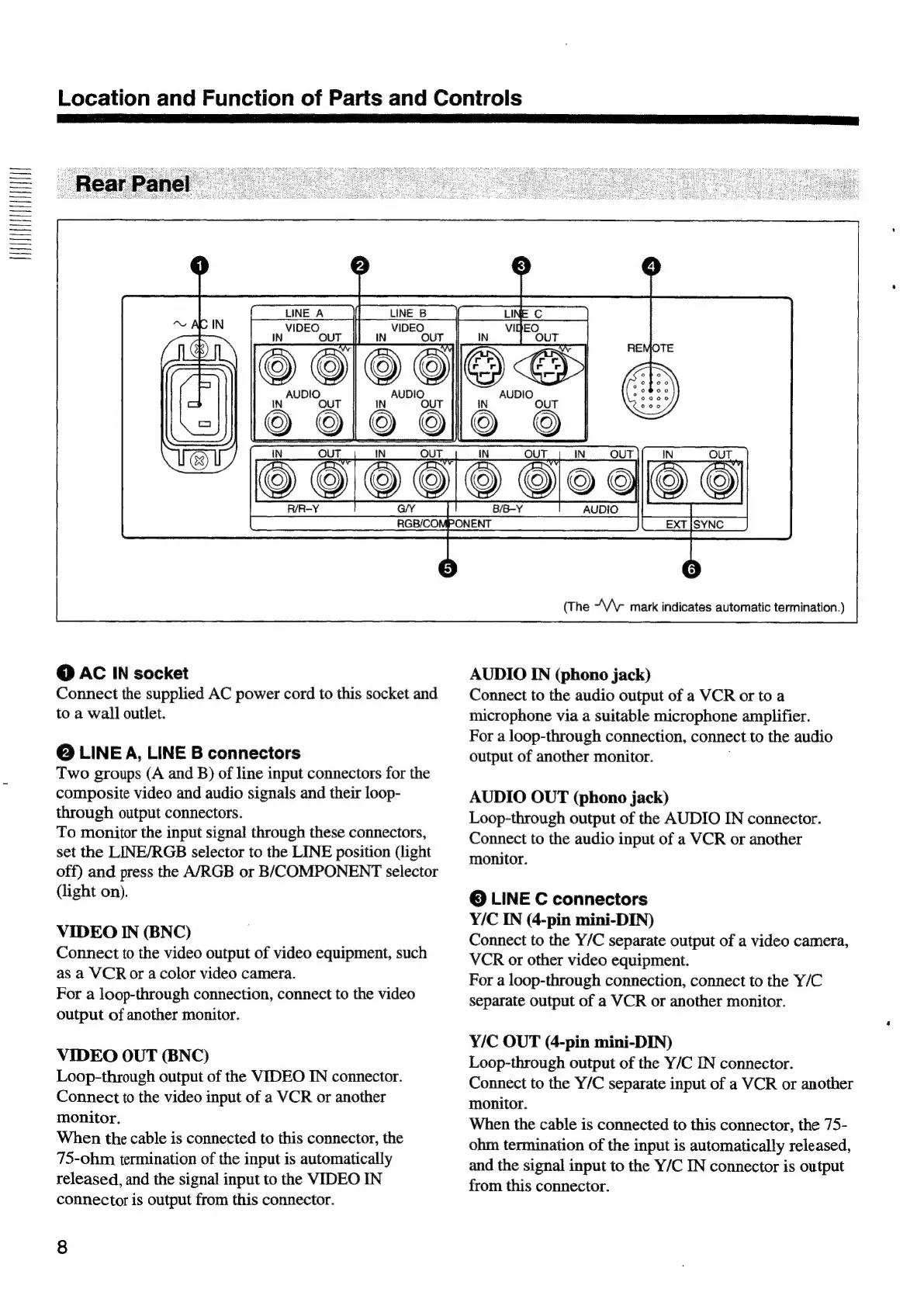

ATTN
Location
and
Function
of
Parts
and
Controls
OG
RGB/CO!
@
AC
IN
socket
Connect
the
supplied
AC
power
cord
to
this
socket
and
to
a
wall
outlet.
©
LINE
A,
LINE
B
connectors
Two
groups
(A
and
B)
of
line
input
connectors
for
the
composite
video
and
audio
signals
and
their
loop-
through
output
connectors.
To
monitor
the
input
signal
through
these
connectors,
set
the
LINE/RGB
selector
to
the
LINE
position
(light
off)
and
press
the
A/RGB
or
B/;COMPONENT
selector
(light
on).
VIDEO
IN
(BNC)
Connect
to
the
video
output
of
video
equipment,
such
as
a
VCR
or
a
color
video
camera.
For
a
loop-through
connection,
connect
to
the
video
output
of
another
monitor.
VIDEO
OUT
(BNC)
Loop-through
output
of
the
VIDEO
IN
connector.
Connect
to
the
video
input
of
a
VCR
or
another
monitor.
When
the
cable
is
connected
to
this
connector,
the
75-ohm
termination
of
the
input
is
automatically
released,
and
the
signal
input
to
the
VIDEO
IN
connector
is
output
from
this
connector.
8
PONENT
(The
-~\\-
mark
indicates
automatic
termination.)
AUDIO
IN
(phono
jack)
Connect
to
the
audio
output
of
a
VCR
or
to
a
microphone
via
a
suitable
microphone
amplifier.
For
a
loop-through
connection,
connect
to
the
audio
output
of
another
monitor.
AUDIO
OUT
(phono
jack)
Loop-through
output
of
the
AUDIO
IN
connector.
Connect
to
the
audio
input
of
a
VCR
or
another
monitor.
©
LINE
C
connectors
Y/C
IN
(4-pin
mini-DIN)
Connect
to
the
Y/C
separate
output
of
a
video
camera,
VCR
or
other
video
equipment.
For
a
loop-through
connection,
connect
to
the
Y/C
separate
output
of
a
VCR
or
another
monitor.
Y¥/C
OUT
(4-pin
mini-DIN)
Loop-through
output
of
the
Y/C
IN
connector.
Connect
to
the
Y/C
separate
input
of
a
VCR
or
another
monitor.
When
the
cable
is
connected
to
this
connector,
the
75-
ohm
termination
of
the
input
is
automatically
released,
and
the
signal
input
to
the
Y/C
IN
connector
is
output
from
this
connector.
