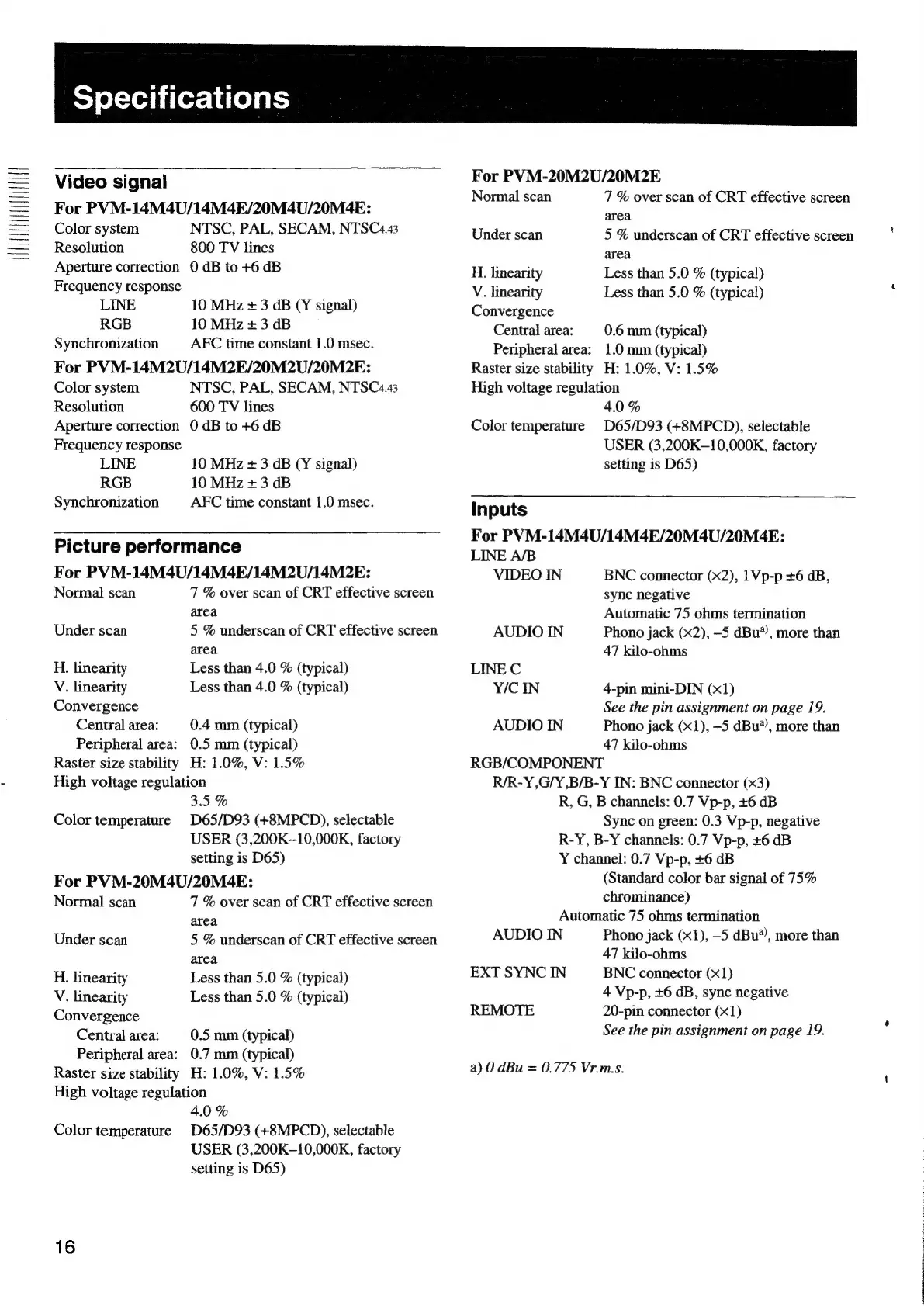

Specifications
Video signal
For PVM-14M4U/14M4E/20M4U/20M4E:
Color system NTSC, PAL, SECAM, NTSCz.43
Resolution 800 TV lines
Aperture correction 0 dB to +6 dB
Frequency response
LINE 10 MHz + 3 GB (Y signal)
RGB 10 MHz + 3 dB
Synchronization AFC time constant 1.0 msec.
For PVM-14M2U/14M2E/20M2U/20M2E:
Color system NTSC, PAL, SECAM, NTSC4.43
Resolution 600 TV lines
Aperture correction 0 dB to +6 dB
Frequency response
LINE 10 MHz + 3 GB (Y signal)
RGB 10 MHz + 3 dB
Synchronization AFC time constant 1.0 msec.
Picture performance
For PVM-14M4U/14M4E/14M2U/14M2E:
Normal scan 7 % over scan of CRT effective screen
area
Under scan 5 % underscan of CRT effective screen
area
H. linearity Less than 4.0 % (typical)
V. linearity Less than 4.0 % (typical)
Convergence
Central area: 0.4 mm (typical)
Peripheral area: 0.5 mm (typical)
Raster size stability H: 1.0%, V: 1.5%
High voltage regulation
3.5 %
D65/D93 (+8MPCD), selectable
USER (3,200K-—10,000K, factory
Color temperature
setting is D65)
For PVM-20M4U/20M4E:
Normal scan T % over scan of CRT effective screen
area
Under scan 5 % underscan of CRT effective screen
area
H. linearity Less than 5.0 % (typical)
V. linearity Less than 5.0 % (typical)
Convergence
Central area: 0.5 mm (typical)
Peripheral area: 0.7 mm (typical)
Raster size stability H: 1.0%, V: 1.5%
High voltage regulation
4.0 %
D65/D93 (+8MPCD), selectable
USER (3,200K-10,000K, factory
setting is D65)
Color temperature
16
For PVM-20M2U/20M2E
Normal scan 7 % over scan of CRT effective screen
area
Under scan 5 % underscan of CRT effective screen
area
H. linearity Less than 5.0 % (typical)
V. linearity Less than 5.0 % (typical)
Convergence
Central area: 0.6 mm (typical)
Peripheral area: 1.0 mm (typical)
Raster size stability H: 1.0%, V: 1.5%
High voltage regulation
4.0 %
D65/D93 (+8MPCD), selectable
USER (3,200K-—10,000K, factory
setting is D65)
Color temperature
Inputs
For PVM-14M4U/14M4E/20M4U/20M4E:
LINE A/B
VIDEO IN BNC connector (x2), 1 Vp-p +6 dB,
sync negative
Automatic 75 ohms termination
AUDIO IN Phono jack (x2), —5 dBu®, more than
47 kilo-ohms
LINE C
Y/C IN 4-pin mini-DIN (x1)
See the pin assignment on page 19.
AUDIO IN Phono jack (x1), —5 dBu®, more than
47 kilo-ohms
RGB/COMPONENT
R/R-Y,G/Y,B/B-Y IN: BNC connector (x3)
R, G, B channels: 0.7 Vp-p, +6 dB
Sync on green: 0.3 Vp-p, negative
R-Y, B-Y channels: 0.7 Vp-p, +6 dB
Y channel: 0.7 Vp-p, +6 dB
(Standard color bar signal of 75%
chrominance)
Automatic 75 ohms termination
AUDIO IN Phono jack (x1), —5 dBu®), more than
47 kilo-ohms
EXT SYNC IN BNC connector (x1)
4 Vp-p, +6 dB, sync negative
REMOTE 20-pin connector (x1)
See the pin assignment on page 19.
a) 0 dBu = 0.775 Vr.m.s.
