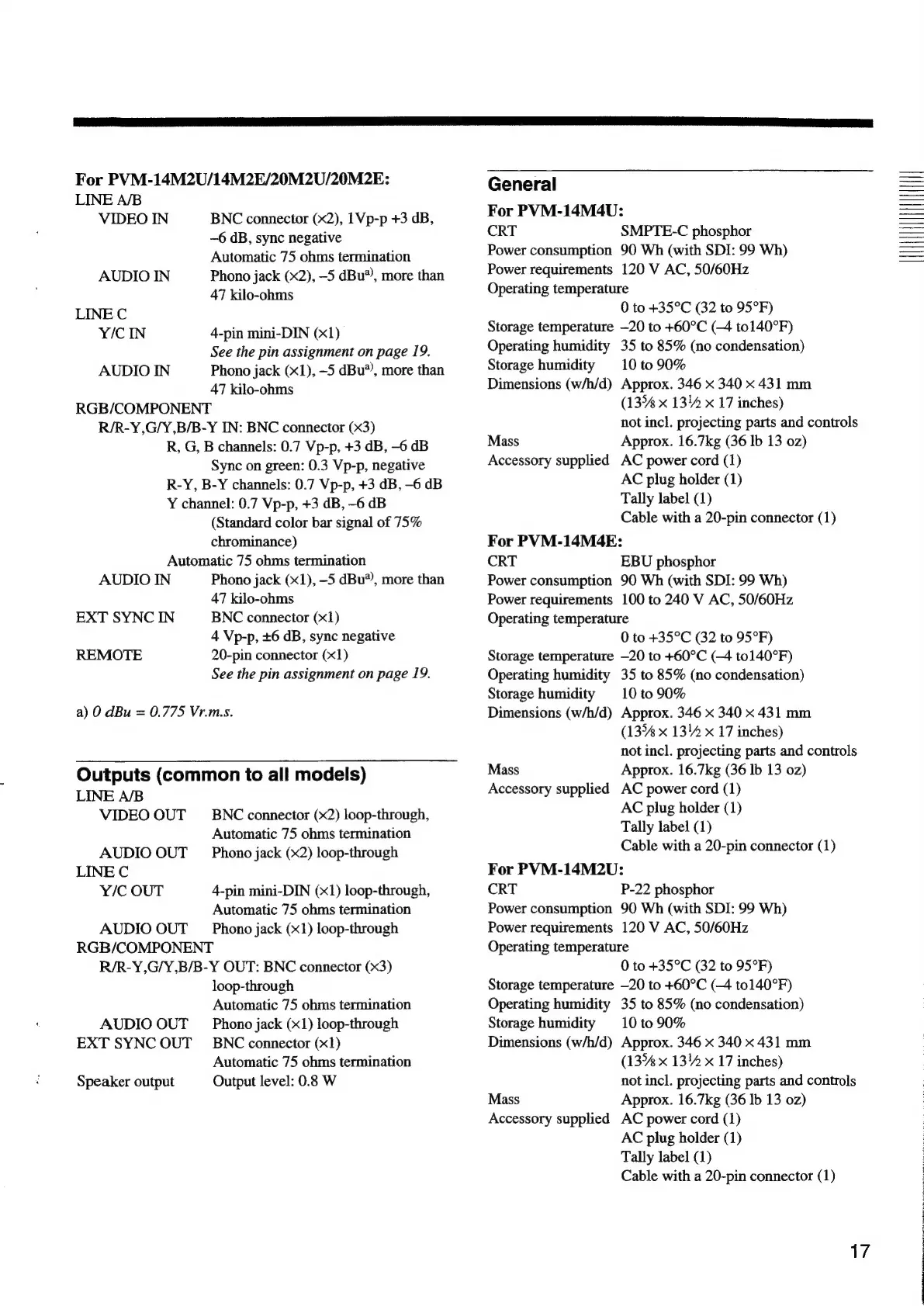

For PVM-14M2U/14M2E/20M2U/20M2E:
LINE A/B
VIDEO IN BNC connector (x2), 1 Vp-p +3 dB,
—6 dB, sync negative
Automatic 75 ohms termination
AUDIO IN Phono jack (x2), —5 dBu®, more than
47 kilo-ohms
LINE C
Y/C IN 4-pin mini-DIN (x1)
See the pin assignment on page 19.
AUDIO IN Phono jack (x1), ~5 dBu®, more than
47 kilo-ohms
RGB/COMPONENT
R/R-Y,G/Y,B/B-Y IN: BNC connector (x3)
R, G, B channels: 0.7 Vp-p, +3 dB, -6 dB
Sync on green: 0.3 Vp-p, negative
R-Y, B-Y channels: 0.7 Vp-p, +3 dB, -6 dB
Y channel: 0.7 Vp-p, +3 dB, -6 dB
(Standard color bar signal of 75%
chrominance)
Automatic 75 ohms termination
AUDIO IN Phono jack (x1), —5 dBu?), more than
47 kilo-ohms
EXT SYNC IN BNC connector (x1)
4 Vp-p, +6 dB, sync negative
REMOTE 20-pin connector (x1)
See the pin assignment on page 19.
a) O dBu = 0.775 Vr.m.s.
Outputs (common to all models)
LINE A/B
VIDEO OUT BNC connector (x2) loop-through,
Automatic 75 ohms termination
AUDIO OUT Phono jack (x2) loop-through
LINE C
Y/C OUT 4-pin mini-DIN (x1) loop-through,
Automatic 75 ohms termination
AUDIO OUT Phono jack (x1) loop-through
RGB/COMPONENT
R/R-Y,G/Y,B/B-Y OUT: BNC connector (x3)
loop-through
Automatic 75 ohms termination
AUDIO OUT Phono jack (x1) loop-through
EXT SYNC OUT BNC connector (x1)
Automatic 75 ohms termination
Speaker output Output level: 0.8 W
Power consumption 90 Wh (with SDI: 99 Wh)
Power requirements 120 V AC, 50/60Hz
Operating temperature
0 to +35°C (32 to 95°F)
Storage temperature —20 to +60°C (+4 to140°F)
Operating humidity 35 to 85% (no condensation)
Storage humidity 10 to 90%
Dimensions (w/h/d) Approx. 346 x 340 x 431 mm
(135% x 13'4 x 17 inches)
not incl. projecting parts and controls
General ==
For PVM-14M4U: =
CRT SMPTE-C phosphor =
Mass Approx. 16.7kg (36 Ib 13 oz)
Accessory supplied AC power cord (1)
AC plug holder (1)
Tally label (1)
Cable with a 20-pin connector (1)
For PVM-14M4E:
CRT EBU phosphor
Power consumption 90 Wh (with SDI: 99 Wh)
Power requirements 100 to 240 V AC, 50/60Hz
Operating temperature
0 to +35°C (32 to 95°F)
Storage temperature —20 to +60°C (+4 to140°F)
Operating humidity 35 to 85% (no condensation)
Storage humidity 10 to 90%
Dimensions (w/h/d) Approx. 346 x 340 x 431 mm
(13% x 1314 x 17 inches)
not incl. projecting parts and controls
Mass Approx. 16.7kg (36 lb 13 oz)
Accessory supplied AC power cord (1)
AC plug holder (1)
Tally label (1)
Cable with a 20-pin connector (1)
For PVM-14M2U:
CRT P-22 phosphor
Power consumption 90 Wh (with SDI: 99 Wh)
Power requirements 120 V AC, 50/60Hz
Operating temperature
0 to +35°C (32 to 95°F)
Storage temperature —20 to +60°C (4 tol40°F)
Operating humidity 35 to 85% (no condensation)
Storage humidity 10 to 90%
Dimensions (w/h/d) Approx. 346 x 340 x 431 mm
(13% x 13'4 x 17 inches)
not incl. projecting parts and controls
Mass Approx. 16.7kg (36 Ib 13 oz)
Accessory supplied AC power cord (1)
AC plug holder (1)
Tally label (1)
Cable with a 20-pin connector (1)
17
