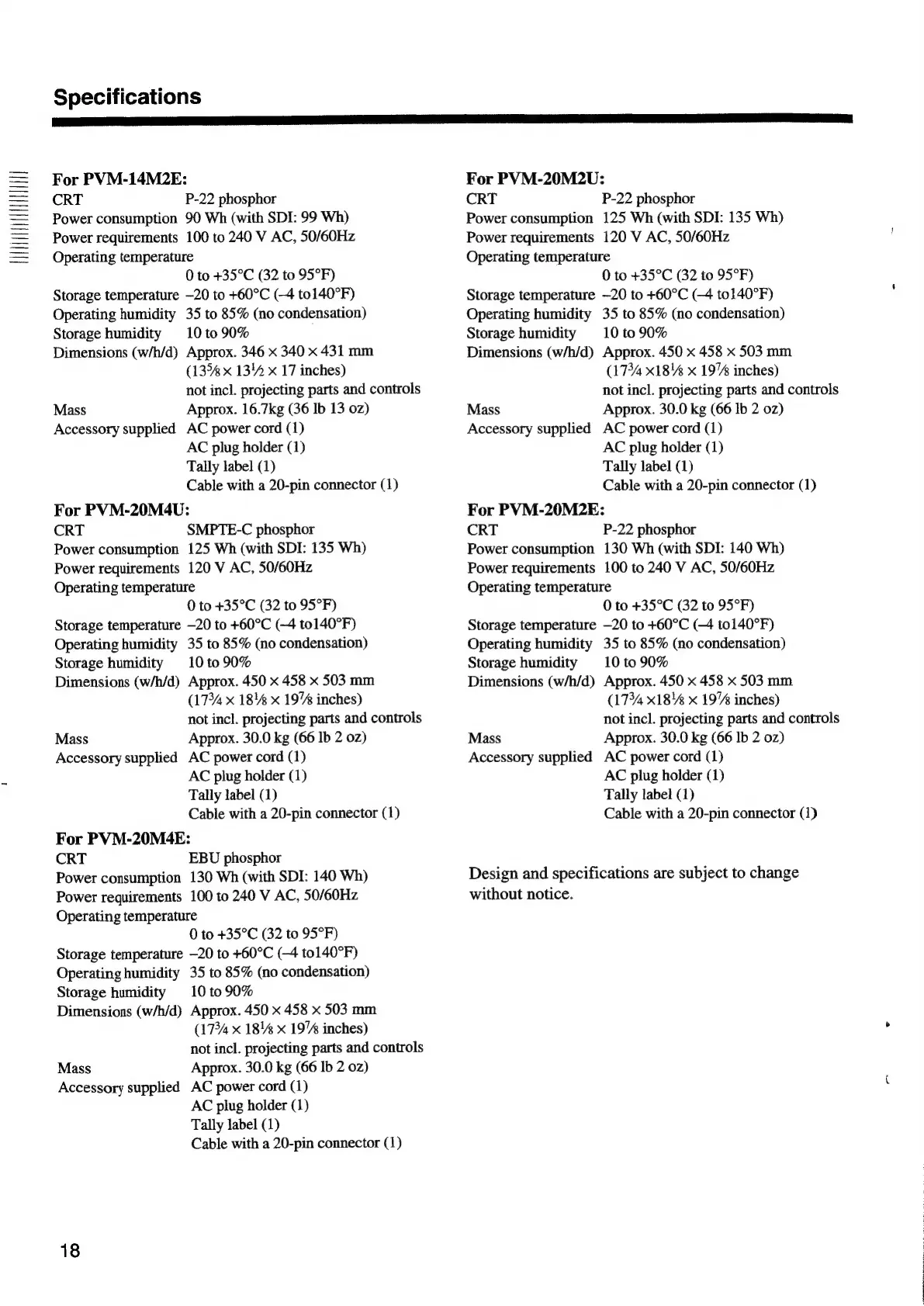

Specifications
Fo
I
a
PL
a
Sl
RT
a
aS
aT
a
Eom
S|
For
PVM-14M2E:
CRT
P-22
phosphor
Power
consumption
90
Wh
(with
SDI:
99
Wh)
Power
requirements
100
to
240
V
AC,
50/60Hz
Operating
temperature
0
to
+35°C
(32
to
95°F)
Storage
temperature
—20
to
+60°C
(4
to140°F)
Operating
humidity
35
to
85%
(no
condensation)
Storage
humidity
10
to
90%
Dimensions
(w/h/d)
Approx.
346
x
340
x
431
mm
(13%
x
13'4
x
17
inches)
not
incl.
projecting
parts
and
controls
Mass
Approx.
16.7kg
(36
Ib
13
oz)
Accessory
supplied
AC
power
cord
(1)
AC
plug
holder
(1)
Tally
label
(1)
Cable
with
a
20-pin
connector
(1)
For
PVM-20M4U:
CRT
SMPTE-C
phosphor
Power
consumption
125
Wh
(with
SDI:
135
Wh)
Power
requirements
120
V
AC,
50/60Hz
Operating
temperature
0
to
+35°C
(32
to
95°F)
Storage
temperature
—20
to
+60°C
(4
tol40°F)
Operating
humidity
35
to
85%
(no
condensation)
Storage
humidity
10
to
90%
Dimensions
(w/h/d)
Approx.
450
x
458
x
503
mm
(17%
x
181%
x
197
inches)
not
incl.
projecting
parts
and
controls
Mass
Approx.
30.0
kg
(66
Ib
2
0z)
Accessory
supplied
AC
power
cord
(1)
AC
plug
holder
(1)
Tally
label
(1)
Cable
with
a
20-pin
connector
(1)
For
PVM-20M4E:
CRT
EBU
phosphor
Power
consumption
130
Wh
(with
SDI:
140
Wh)
Power
requirements
100
to
240
V
AC,
50/60Hz
Operating
temperature
0
to
+35°C
(32
to
95°F)
Storage
temperature
—20
to
+60°C
(4
to140°F)
Operating
humidity
35
to
85%
(no
condensation)
Storage
humidity
10
to
90%
Dimensions
(w/h/d)
Approx.
450
x
458
x
503
mm
(1734
x
181%
x
1974
inches)
not
incl.
projecting
parts
and
controls
Mass
Approx.
30.0
kg
(66
Ib
2
oz)
Accessory
supplied
AC
power
cord
(1)
AC
plug
holder
(1)
Tally
label
(1)
Cable
with
a
20-pin
connector
(1)
18
For
PVM-20M2U:
CRT
P-22
phosphor
Power
consumption
125
Wh
(with
SDI:
135
Wh)
Power
requirements
120
V
AC,
50/60Hz
Operating
temperature
0
to
+35°C
(32
to
95°F)
Storage
temperature
—20
to
+60°C
(+4
to140°F)
Operating
humidity
35
to
85%
(no
condensation)
Storage
humidity
10
to
90%
Dimensions
(w/h/d)
Approx.
450
x
458
x
503
mm
(1774
x18'%
x
197%
inches)
not
incl.
projecting
parts
and
controls
Mass
Approx.
30.0
kg
(66
Ib
2
02)
Accessory
supplied
AC
power
cord
(1)
AC
plug
holder
(1)
Tally
label
(1)
Cable
with
a
20-pin
connector
(1)
For
PVM-20M2E:
CRT
P-22
phosphor
Power
consumption
130
Wh
(with
SDI:
140
Wh)
Power
requirements
100
to
240
V
AC,
50/60Hz
Operating
temperature
0
to
+35°C
(32
to
95°F)
Storage
temperature
—20
to
+60°C
(+4
to140°F)
Operating
humidity
35
to
85%
(no
condensation)
Storage
humidity
10
to
90%
Dimensions
(w/h/d)
Approx.
450
x
458
x
503
mm
(17%
x184%
x
197%
inches)
not
incl.
projecting
parts
and
controls
Mass
Approx.
30.0
kg
(66
Ib
2
oz)
Accessory
supplied
AC
power
cord
(1)
AC
plug
holder
(1)
Tally
label
(1)
Cable
with
a
20-pin
connector
(1)
Design
and
specifications
are
subject
to
change
without
notice.
