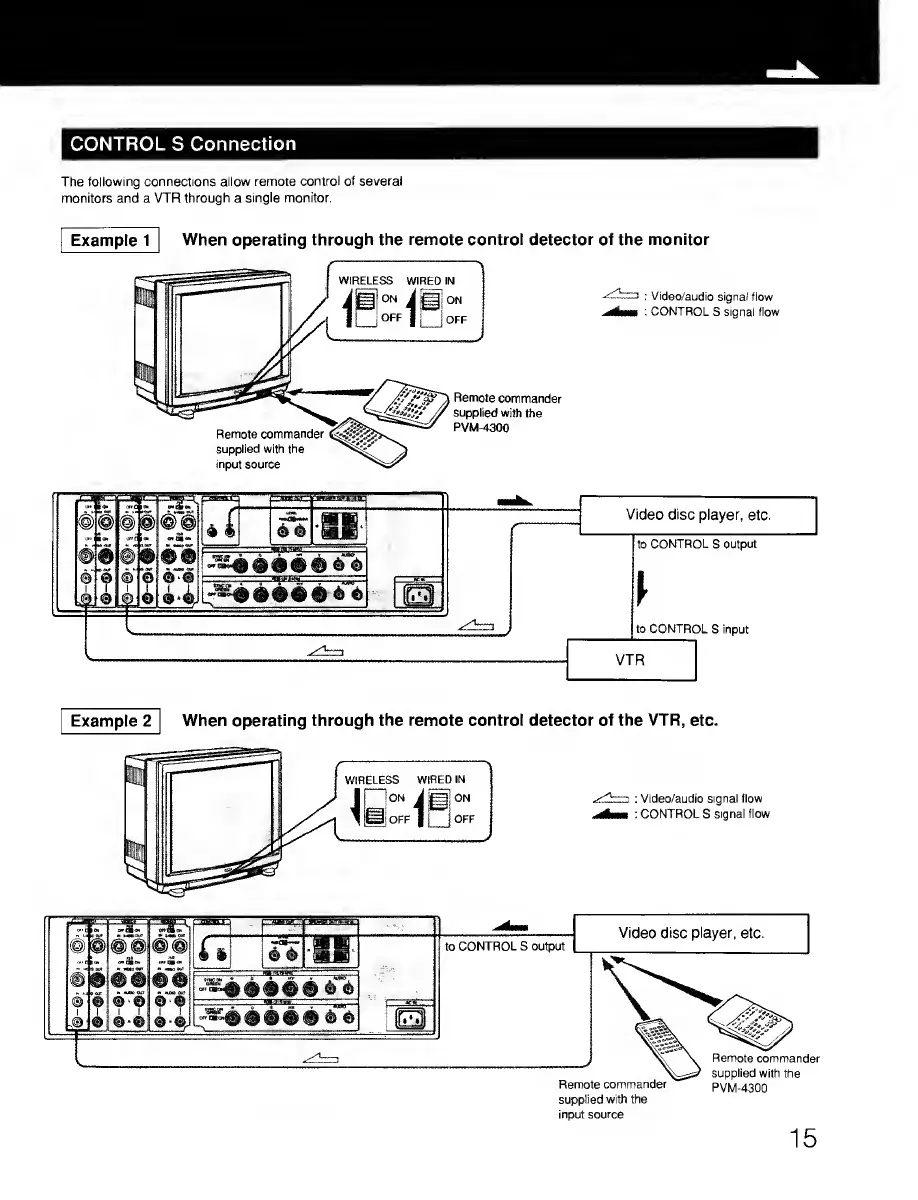

CONTROL
S
Connection
The following connections
allow remote control of several
monitors and
a
VTR
through
a
single monitor.
When operating
through the
remote control detector of the monitor
>
:
Video/audio signal flow
:
CONTROL
S signal flow
Example 2
When operating through
the remote control detector of the VTR,
etc.
: Video/audio
signal flow
:
CONTROL
S
signal flow
