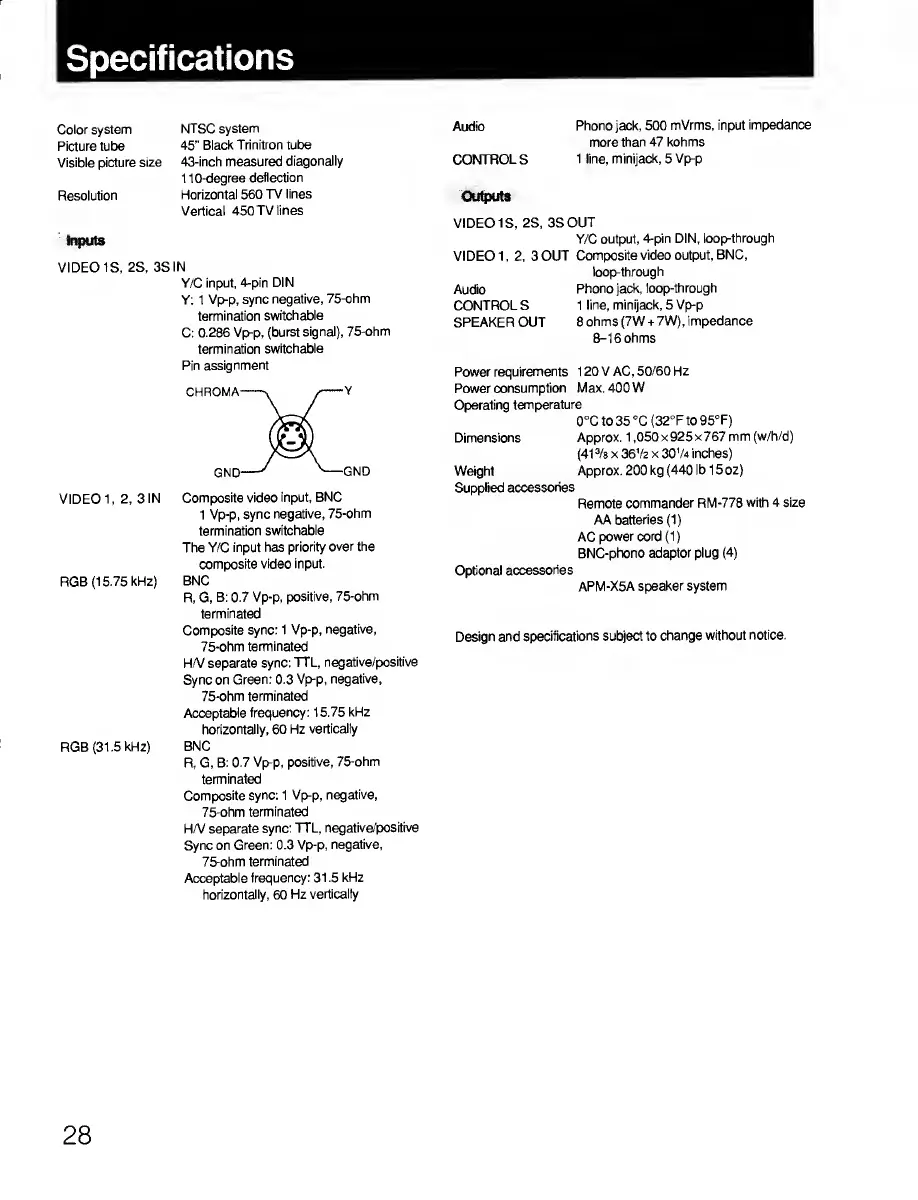

Specifications
Color system
NTSC system
Picture tube
45"
Black Trinitron tube
Visible
picture size
43-inch
measured
diagonally
1
10-degree
deflection
Resolution
Horizontal 560
TV lines
Vertical 450
TV lines
Inputs
VIDEO
IS, 2S, 3S
IN
Y/C input,
4-pin DIN
Y: 1
Vp-p, sync
negative,
75-ohm
termination
switchable
C:
0.286 Vp-p,
(burst
signal),
75-ohm
termination
switchable
Pin
assignment
CHROMA s
,
Y
GND
'
v
GND
VIDE0
1 ,
2,
3
IN
Composite video
input,
BNC
1 Vp-p,
sync
negative,
75-ohm
termination
switchable
The Y/C
input has
priority over
the
composite
video input.
RGB (15.75 kHz)
BNC
R, G,
B: 0.7 Vp-p,
positive, 75-ohm
terminated
Composite
sync: 1 Vp-p,
negative,
75-ohm
terminated
H/V
separate sync:
TTL,
negative/positive
Sync on
Green: 0.3 Vp-p,
negative,
75-ohm terminated
Acceptable
frequency: 1
5.75 kHz
horizontally, 60 Hz
vertically
RGB (31
.5 kHz)
BNC
R, G, B:
0.7 Vp-p,
positive,
75-ohm
terminated
Composite
sync:
1 Vp-p,
negative,
75-ohm
terminated
H/V
separate
sync: TTL,
negative/positive
Sync on
Green: 0.3 Vp-p,
negative,
75-ohm
terminated
Acceptable
frequency: 31 .5 kHz
horizontally,
60
Hz
vertically
Audio
Phono jack, 500
mVrms, input
impedance
more
than 47 kohms
CONTROL S
1 line,
minijack,
5
Vp-p
Outputs
VIDEO
IS, 2S,
3SOUT
Y/C output,
4-pin DIN,
loop-through
VIDE0
1 ,
2,
3
OUT
Composite video output,
BNC,
loop-through
Audio
Phono jack,
loop-through
CONTROL S
1 line,
minijack,
5
Vp-p
SPEAKER
OUT 8
ohms (7W +
7W), impedance
8-1
6
ohms
Power
requirements 1 20 V AC,
50/60 Hz
Power consumption
Max. 400 W
Operating
temperature
0
D
C to 35 °C
(32°F to
95°F)
Dimensions
Approx.
1
,050x925x767 mm
(w/h/d)
(41
3
/sx36V2x30'/4
inches)
Weight
Approx. 200 kg (440
lb 1 5 oz)
Supplied
accessories
Remote
commander RM-778
with 4 size
AA batteries
(1)
AC power
cord
(1
)
BNC-phono
adaptor plug
(4)
Optional
accessories
APM-X5A speaker system
Design and
specifications
subject
to
change without
notice.
28
