11
(US)
Specifications
Video signal
Colour system PVM-8045Q/8042Q: NTSC,
PAL, SECAM, NTSC
4.43
PVM-8040: NTSC
Resolution PVM-8045Q: 450 TV lines
PVM-8042Q/8040: 250 TV lines
Aperture correction –4.0 dB to +6.0 dB (at 3.0 MHz)
Frequency response 6.0 MHz (–3.0 dB) at all inputs
Synchronization AFC time constant 1.0 msec.
Picture performance
Normal scan 6% over scan of CRT effective
screen area
Underscan 3% underscan of CRT effective
screen area
H. linearity Less than 5.0% (typical)
V. linearity Less than 5.0% (typical)
Convergence Central area: 0.43 mm (typical)
Peripheral area: 0.53 mm
(typical)
Raster size stability H: 1.0%, V: 1.5%
High voltage regulation
3.0%
Color temperature D65
Inputs and Outputs
Model PVM-8045Q PVM-8040
Connector PVM-8042Q
LINE A Y/C IN yes yes
Y/C OUT yes yes
VIDEO IN yes yes
VIDEO OUT yes yes
AUDIO IN yes yes
AUDIO OUT yes yes
LINE B VIDEO IN yes no
VIDEO OUT yes no
AUDIO IN yes no
AUDIO OUT yes no
RGB/ R/R-Y IN yes no
COMPONENT G/Y IN yes no
B/B-Y IN yes no
AUDIO IN yes no
EXT SYNC IN yes no
OUT yes no
REMOTE yes no
Inputs Y/C IN: 4-pin mini DIN
connector
See the pin assignment on page
12 (US).
VIDEO IN: BNC connector
1 Vp-p ± 6 dB, sync negative
AUDIO IN: phono jack, –5 dBu
a)
,
less than 47 kohms
R/R-Y, G/Y, B/B-Y: BNC
connector
R, G, B channels: 0.7 Vp-p,
± 6 dB Sync on green: 0.3 Vp-p,
negative,
R-Y, Y, B-Y channels: 0.7 Vp-p,
±6 dB (Standard colour bar
signal of 75% chrominance)
EXT SYNC IN: BNC connector
Composite sync 4 Vp-p, ±6 dB,
negative
Loop-through outputs
Y/C OUT: 4-pin mini DIN
connector, 75 ohms terminated
(75 ohms automatic termination)
VIDEO OUT: BNC connector,
75 ohms terminated (75 ohms
automatic termination)
AUDIO OUT: phono jack
EXT SYNC OUT: BNC
connector, 75 ohms terminated
Speaker output Output level 0.5 W
Remote input REMOTE: 8-pin mini DIN
connctor (75 ohms automatic
termination)
See the pin assignment on page
12 (US).
a) 0 dBu = 0.775 Vr.m.s.
General
Power consumption & requirements
PVM-8045Q/8042Q:
0.6 A 45 W MAX at 120 V AC
operation
3.7 A 38 W at 12 V DC operation
PVM-8040:
0.6 A 39 W MAX at 120 V AC
operation
Operating conditions
Temperature 0 to +35°C (32 to 95°F)
Humidity 0 to 90% (no condensation)
Pressure 700 to 1060 hPa
10
(US)

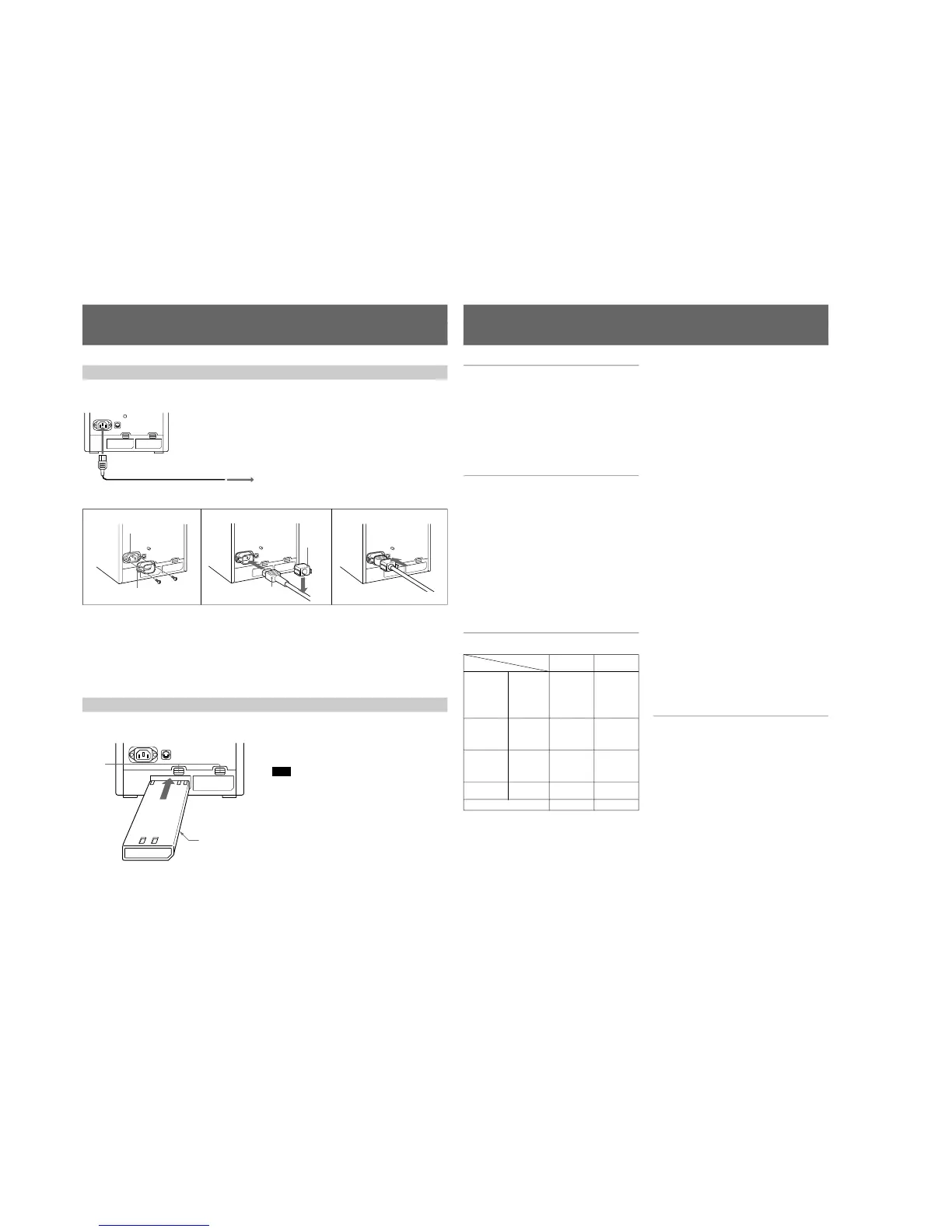

Power Sources
Connect the supplied AC power cord to the AC IN
socket and to a wall outlet.
1
Remove the AC IN socket screws and then use
them to attach the AC plug holder A (supplied) to
the AC IN socket.
2
Plug the power cord to the AC IN sokcet. Then,
attach the supplied AC plug holder B on top of the
AC power cord.
The monitor can operate with one or two battery packs.
For extended use, two battery packs are recommended.
House Current (for all models)
to AC IN
to a wall outlet
For the PVM-8045Q/8042Q
When the AC power cord is plugged into the AC IN
socket, the battery pack (if installed) or the AC power
adaptor (if connected) is automatically disconnected.
To connect an AC power cord securely with AC plug holders.
3
21
AC IN socket
AC plug holder A
AC power plug
AC plug
holder B
3
Slide AC plug holder B over the cord until is locks.
To remove the AC power cord
Pull out AC plug holder B by squeezing the left and
right sides.
Rechargeable Battery (PVM-8045Q/8042Q only)
To remove the battery pack, press the EJECT button
upwards.
For charging, use the BC-1WD for the NP-1B.
Note
Make sure you disconnect the cables connected to the
connectors (AC IN, DC 12 V IN) at the rear of the
monitor. Otherwise, the monitor cannot operate on the
battery pack(s).
SONY mark downwards
EJECT
buttons
NP-1B
(not supplied)
To Next Page
