Sony VO-5800PS - Automatic Editing System Setup; System Connections for Editing

When the RM-440 Automatic Editing Control Unit and the
VO-5850P/V0-5850S are used with the VO-5S800PS, accurate
and automatic tape-to-tape editing is possible. Once the
edit-In and edit-out points have been memorized on the
RM-440, the editing can be done simpiy by pressing the
AUTO EDIT button,

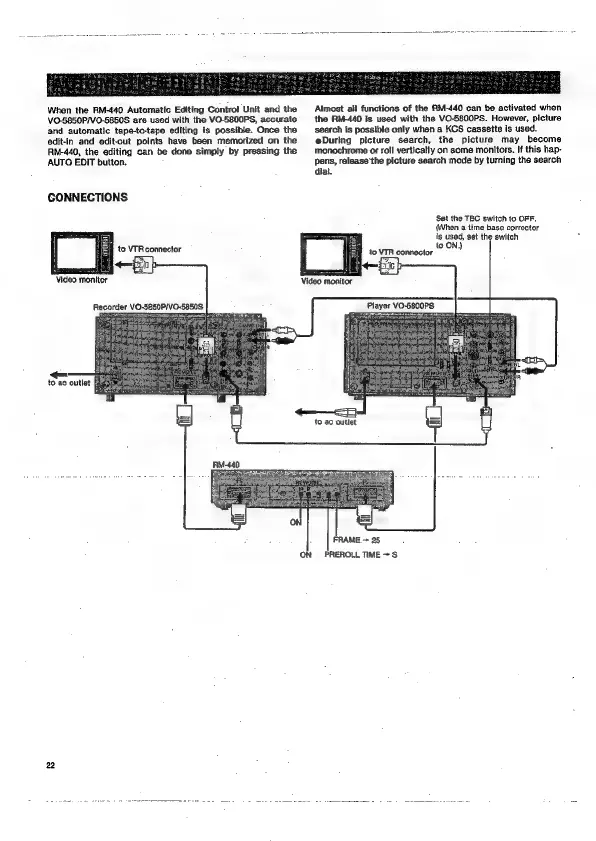

GONNECTIONS
to VTR connector
a Atl
Video monitor
Recorder VO-5850P/VO-5850S
Almost ail functions of the RM-440 can be activated when
the RM-440 is used with the VO-S800PS. However, picture
search is possible only when a KCS cassette is used.
eDuring picture search, the picture may become
monochrome or roll vertically on some monitors. If this hap-
pans, release the picture search mode by turning the search
diat.
Set the TBC switch to OFF,
(When a time base corrector
is used, set the switch
to ac outlet
ON PREROLL TIME > S
