Connecting the Projector
Preparation
B Preparation
Connecting the Projector
• Make sure all the equipment is powered off when connecting the projector.
• Use the proper cables for each connection.
• Insert the cable plugs firmly; Loose connections may reduce performance of picture signals or
cause a malfunction. When pulling out a cable, be sure to grip it by the plug, not the cable itself.
• For more information, refer also to the instruction manuals of the equipment you are connecting.
• Use a no-resistance audio cable.
Connection with a computer is explained for each input signal.
INPUT A/INPUT B
• The audio input connector is available only on VPL-EW275/EW245/EW225/EX275/EX245/
EX225.
• It is recommended that you set the resolution of your computer to 1280 × 800 pixels (VPL-EW275/
EW245/EW225) or 1024 × 768 pixels (VPL-EX275/EX271/EX245/EX241/EX225/EX221) for
the external monitor.
INPUT C
Notes

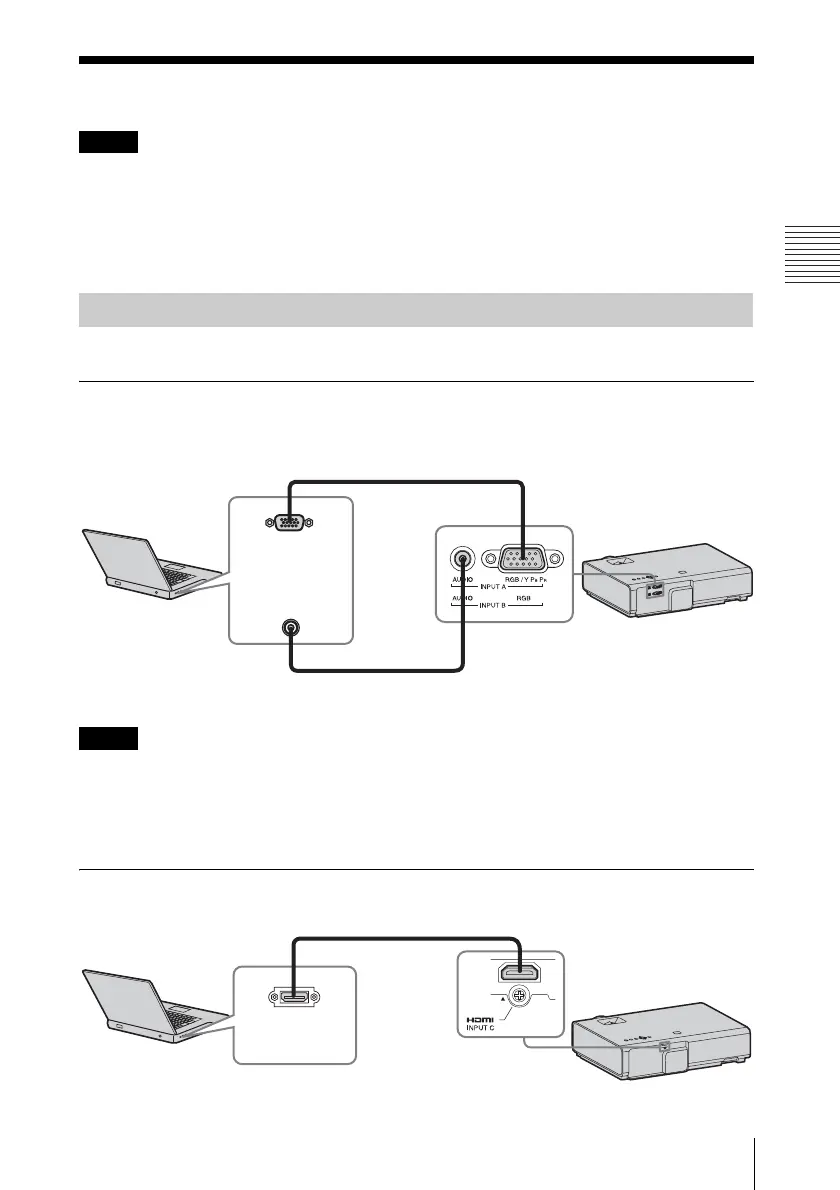

Connecting a Computer
For connecting a computer with an RGB output connector.
RGB output
connector
Audio output
connector
Mini D-sub 15-pin cable (supplied)
Computer
Audio cable (Stereo mini plug)
(not supplied)
Notes
For connecting a computer with an HDMI output connector.
HDMI output
connector
HDMI cable
(not supplied)
Computer

Sony VPL-DX220 Specifications

General

Native aspect ratio	4:3
Projection distance	- m
Projection technology	3LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 300 \
Projector native resolution	XGA (1024x768)
Lamp type	UHP
Lamp power	215 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	10000 h
Focus	Manual
Focal length range	- mm
Full HD	-
Analog signal format system	NTSC, PAL, SECAM
USB 2.0 ports quantity	0
Card reader integrated	No
Power source	AC
Power consumption (standby)	- W
Placement	Desktop
Product type	Standard throw projector
Product color	White
Noise level	- dB

Weight and Dimensions

Weight	2700 g
