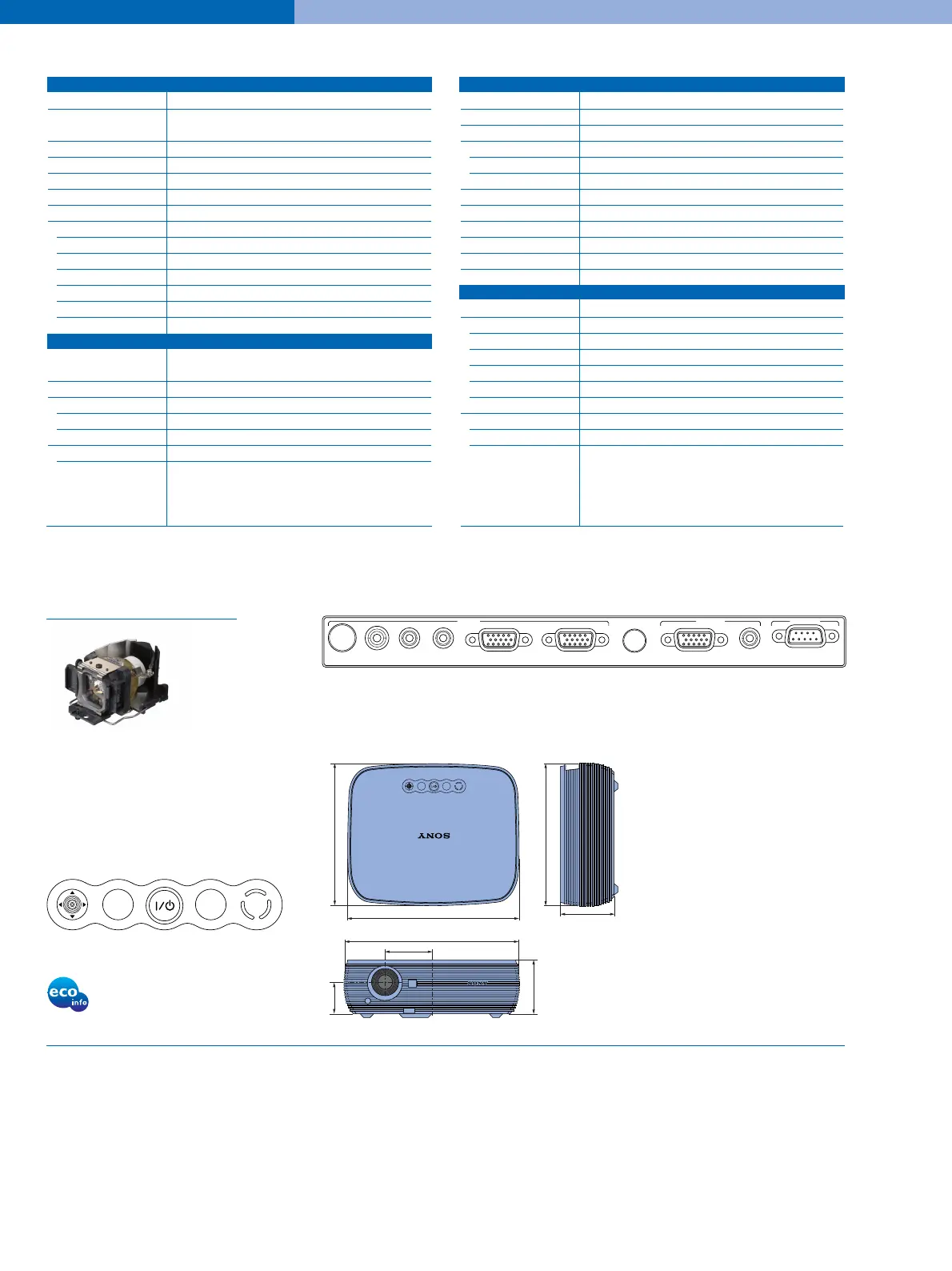

SPECIFICATIONS
MK10339V1IW06MAR
CONNECTOR PANEL
Optical
Projection System 3 LCD panels, 1 lens projection system
Panel 0.63-inch TFT LCD 2,359,296 pixels
(786,432 pixels x 3)
Projection lens 1.2 times zoom lens f18.8 to 22.6mm, F1.6 to 1.94
Lamp 165W
Screen coverage 40'' to 300'' (viewable area measured diagonally)
Light Output 2000 ANSI lm (lamp mode high) (Standard: Approx. 1500 ANSI lm)
Throwing Distance
40-inch 1.2 to 1.4 m (3.9 to 4.6 feet)
80-inch 2.3 to 2.8 m (7.5 to 9.2 feet)
100-inch 2.9 to 3.6 m (9.5 to 11.8 feet)
150-inch 4.4 to 5.4 m (14.4 to 17.7 feet)
200-inch 5.9 to 7.2 m (19.4 to 23.6 feet)
250-inch 7.3 to 9.0 m (24.0 to 29.5 feet)
300-inch 8.8 to 10.7 m (28.9 to 35.1 feet)
Signals
Color System NTSC3.58,PAL, SECAM, NTSC4.43,PAL-M, PAL-N,
PAL60 (automatically/manually selected)
Resolution
Video 750 TV lines
RGB 1024 x 768 pixels
Acceptable Input Signals
Computer fH: 19-92 kHz, fV: 48-92 Hz (up to SXGA+ 60Hz)
Video 15 kHz RGB/Component 50/60 Hz, Progressive Component
50/60 Hz, Composite video,Y/C video
DTV (480/60i, 575/50i, 1080/60i, 480/60p, 575/50p,
1080/50i, 720/60p, 720/50p)
OPTIONAL ACCESSORIES
Distributed by
©2006 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measurements are approximate.
Sony is a registered trademark of Sony Corporation.
Remote Commander is a trademark of Sony Corporation.
CONTOL PANEL
General
Speaker Mono 1 W (max.) x 1
Power Requirements AC 100 to 240 V, 50/60 Hz
Power Consumption
Max 220 W
Standby 10 W
Operating Temperature 0 to 35º (32 to 95 ºF)
Operating Humidity 35% to 85% (no condensation)
Storage temperature -20 to 60 ºC (-4 to 140 ºF)
Storage humidity 10 to 90%
Dimensions (WxHxD) 308 x 98 x 252 mm (12
1
/4 x 3
7
/8 x 10 inches), excl. projections
Mass Approx. 2.9 kg (Approx. 6 lb 6 oz)
Heat Dissipation 750.7 BTU
Inputs/Outputs
Input
RGB/Component HD D-sub 15 pin x1 (Input A)
RGB HD D-sub 15 pin x1 (Input B)
S-Video Mini DIN 4pin x1
Composite RCA pin jack x1
Audio Stereo mini jack x2
Output
RGB HD D-sub 15 pin x1
Audio (variable out) Stereo mini jack x1
Supplied Accessories Remote Commander Unit (RM-PJ4), Lithium battery
CR2025, HD D-sub 15 pin cable,
Carrying case, Security label,AC Power Cord, Operating
Instructions (CD-ROM), Quick reference manual,
Safety regulations
AUDIO AUDIO
INPUT OUTPUT REMOTE
A/B AUDIOINPUT A INPUT B MONITOR RS232CVIDEOS VIDEO
INPUTMENU
P
U
S
H
E
N
T
E
R
P
O
W
E
R
S
A
V
I
N
G
L
A
M
P
/
C
O
V
E
R
T
E
M
P
/
F
A
N
LMP-C162
Projector Lamp (for replacement)
Lead-free solder is used for soldering.
Halogenated flame retardants are not used in
cabinets.
DIMENSIONS
INPUTMENU
P
U
S
H
E
N
T
E
R
P
O
W
E
R
S
A
V
I
N
G
L
A
M
P
C
O
V
E
R
T
E
M
P
/
F
A
N
308 (12
1
/4)
83 (3
3
/8)
252 (10)
57 (2
1
/4)
252 (10)
98 (3
7
/8)
98 (3
7
/8)
308 (12
1
/4)
Unit: mm (inches)
