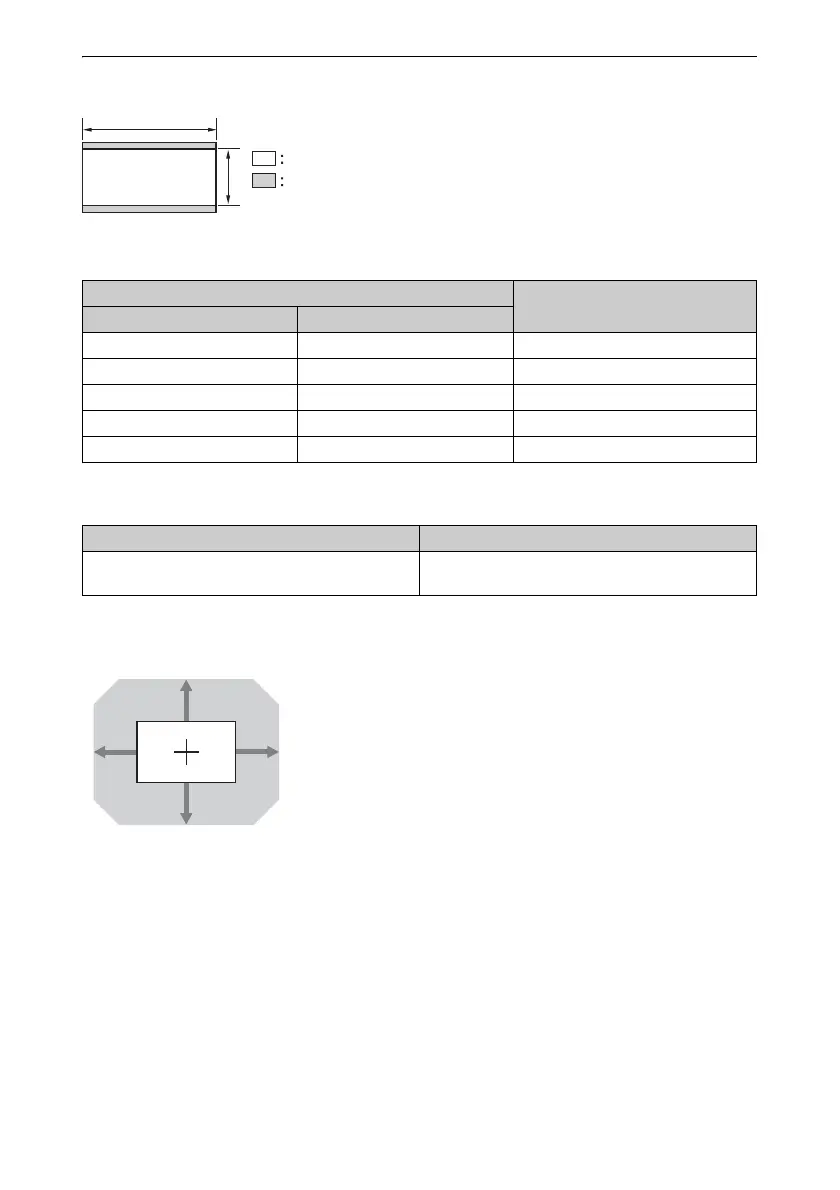

When projecting in 2.35:1 format
Projection distance
Unit: m (inches)
Projection distance formula
D: Projected image size (Diagonal) Unit: m (inches)
Lens shift range
Projection image size
Projection distance L
Diagonal Width × Height
80" (2.03 m) 1.87 × 0.80 (74 × 31) 2.41 – 4.96 (95 – 195)
100" (2.54 m) 2.34 × 0.99 (92 × 39) 3.02 – 6.22 (119 – 244)
120" (3.05 m) 2.80 × 1.19 (110 × 47) 3.64 – 7.47 (143 – 294)
150" (3.81 m) 3.51 × 1.49 (138 × 59) 4.55 – 9.35 (180 – 368)
200" (5.08 m) 4.67 × 1.99 (184 × 78) 6.08 – 12.48 (240 – 491)
Projection distance L (minimal length) Projection distance L (maximal length)
L = 0.030617 × D – 0.0434
(L = 1.205377 × D – 1.7084)
L = 0.062621 × D – 0.0420
(L = 2.465393 × D – 1.6545)
2.35
1
Video display area
Projection area
105%
99%
31% 31%
VS + = 105 – 3.387× (HS + or HS –) [%]
VS – = 99 – 3.387 × (HS + or HS –) [%]
HS + = HS – = 31 – 0.295 × (VS + or VS –) [%]
