Sony Walkman WM-EX678 Service Manual

— 25 —
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
63
PM901
HP901
M901
60
59
62
61
66
65
67
68
69
56
70
55
58
57
54
51
53
52
64
71
71
72
72
73
74
75
76
77
77
78
79
79
80
81
51 X-3377-039-1 HOLDER ASSY (/M)
52 X-3376-295-1 PINCH LEVER (R) ASSY
53 3-029-271-01 SPRING (HD)
54 X-3376-294-1 PINCH LEVER (N) ASSY
55 3-029-275-01 WASHER (STOPPER N)
56 3-029-278-01 WASHER
57 3-029-276-01 WASHER (STOPPER R)
58 3-029-289-01 WASHER
59 X-3376-813-1 CLUTCH ASSY (F)
60 3-932-724-21 WASHER
61 3-029-287-01 SPRING (TG), TORSION
62 3-386-694-01 WASHER
63 3-029-306-11 FLYWHEEL (N), INSERT
64 3-029-280-01 BELT (F2)
65 3-029-268-11 FLYWHEEL (R), INSERT
66 3-007-428-01 WASHER (R)
67 3-029-765-01 SCREW (M1.4), TOOTHED LOCK
68 3-029-274-01 RETAINER (F2), MOTOR
69 3-007-433-01 SHEET (N), REFLECTION
70 X-3377-037-1 CHASSIS ASSY (F) (/M)
71 3-010-274-02 TABLE, REEL
72 3-010-954-01 SPRING (BT), COMPRESSION
73 3-029-282-01 GEAR (Y)
74 3-029-285-01 GEAR, CAM
75 3-029-284-01 LEVER, TRIGGER
76 3-029-281-01 GEAR, IDLER (B)
77 3-010-273-02 GEAR (REEL)
78 3-029-273-01 GEAR (FR)
79 3-029-283-01 GEAR, IDLER (A)
80 3-029-286-01 GEAR (NR)
81 3-029-288-01 PULLEY, REVERSE
HP901 1-500-576-11 HEAD, MAGNETIC (PLAYBACK)
M901 1-763-166-11 MOTOR (CAPSTAN/REEL) (WITH PULLEY)
PM901 1-454-674-32 SOLENOID, PLUNGER

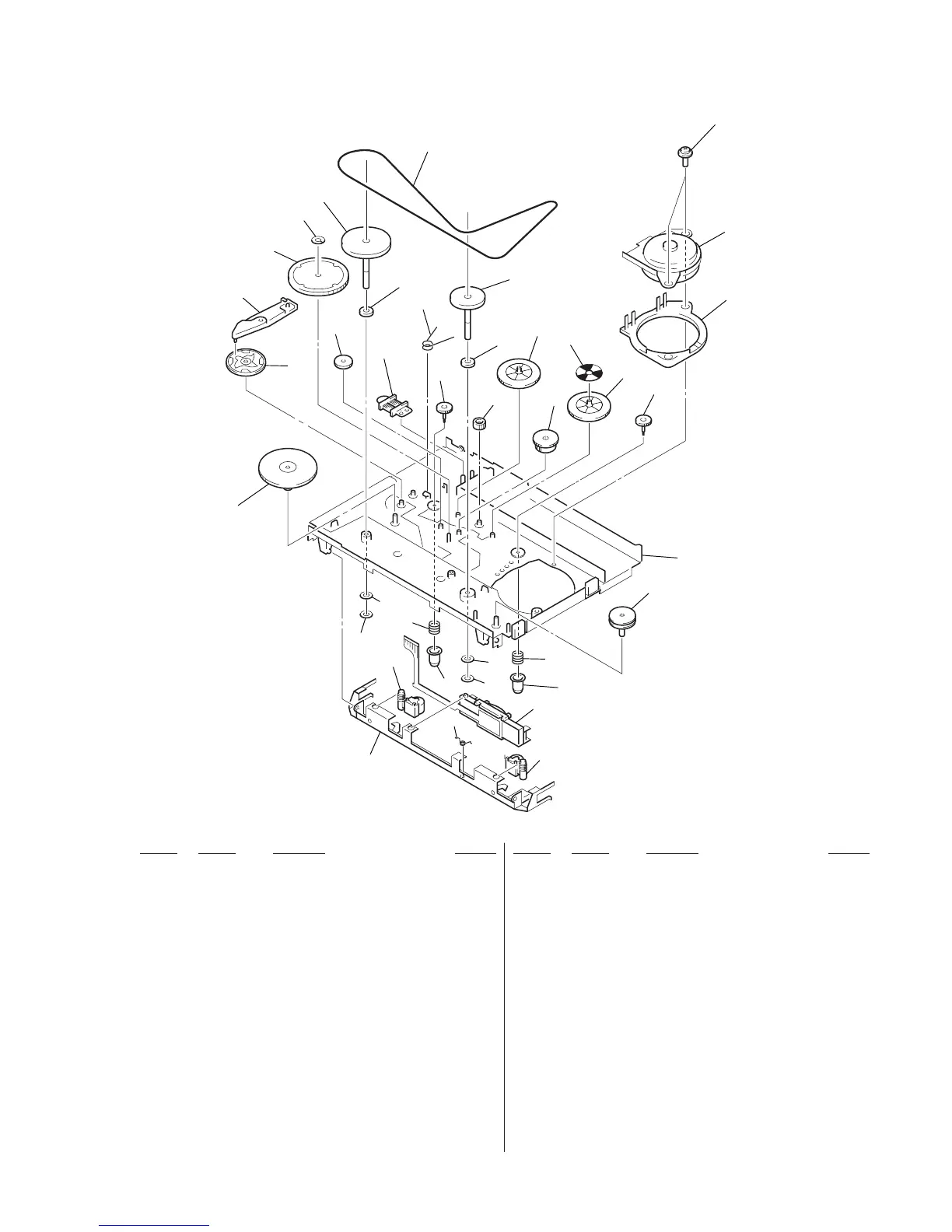

7-2. MECHANISM DECK BLOCK
(MT-WMEX672-162)
