Sony Walkman WM-EX678 Service Manual

— 8 —

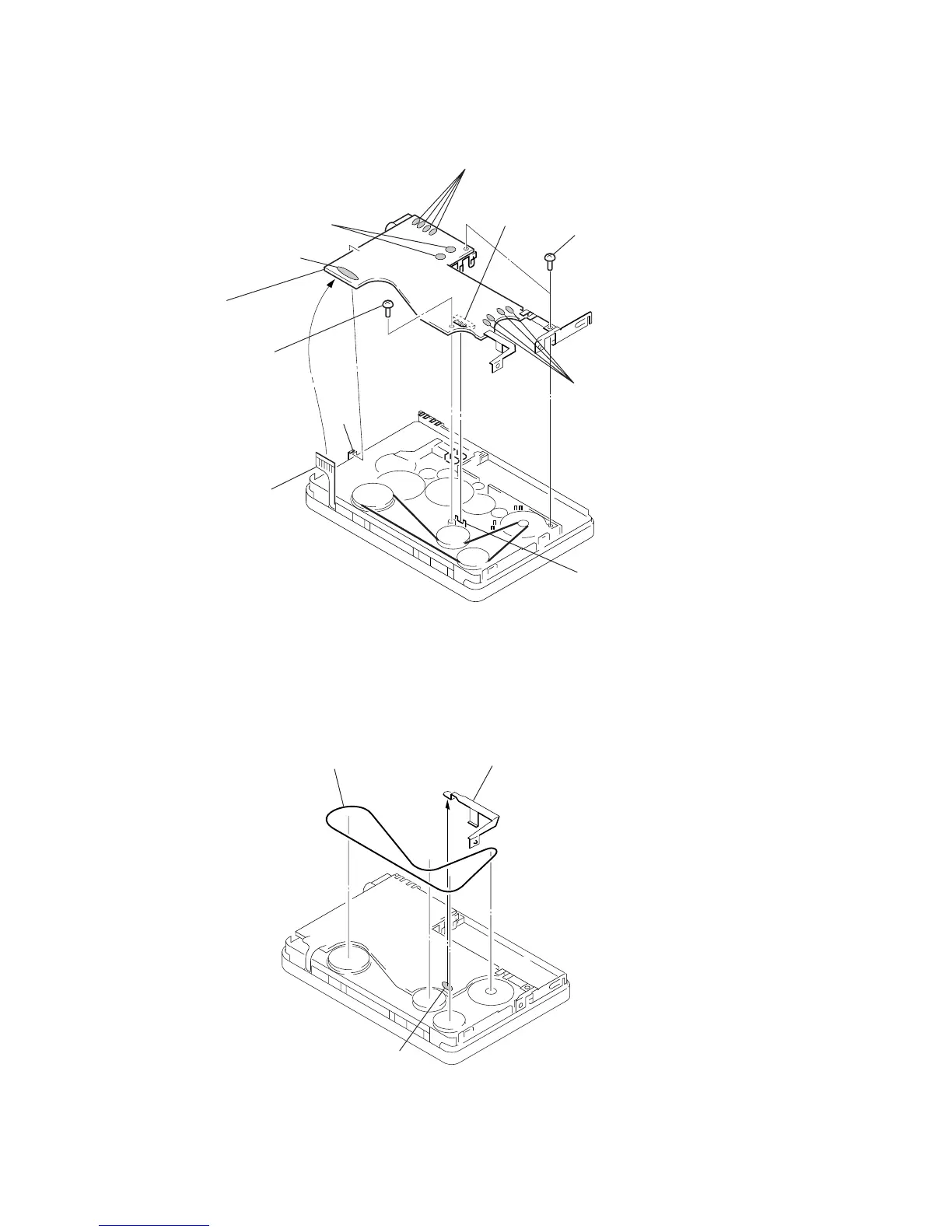

3-2. MAIN BOARD
3-3. BELT (F2)
2 Terminal board (Battery ’
)
3 Belt (F2)
1 Remove soldering from
the battery terminal board.
3 Remove soldering (two points)
from plunger solenoid.
1 Remove soldering (six points)
from the head flexible boards.
Claw
Head flexible board
2 Remove soldering (four points)
from the leaf switch.
4 Remove soldering
(four points) from motor.
5 Two screws
(M1.4)
6 Screw
(M1.4)
7 MAIN board
Note : Be careful of the claw.
SLIDER
S701
Note: When assembling the MAIN board,
align the slider with the position of S701.
