Sony Walkman WM-EX678 Service Manual

— 7 —
SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure as shown in the flow chart below.

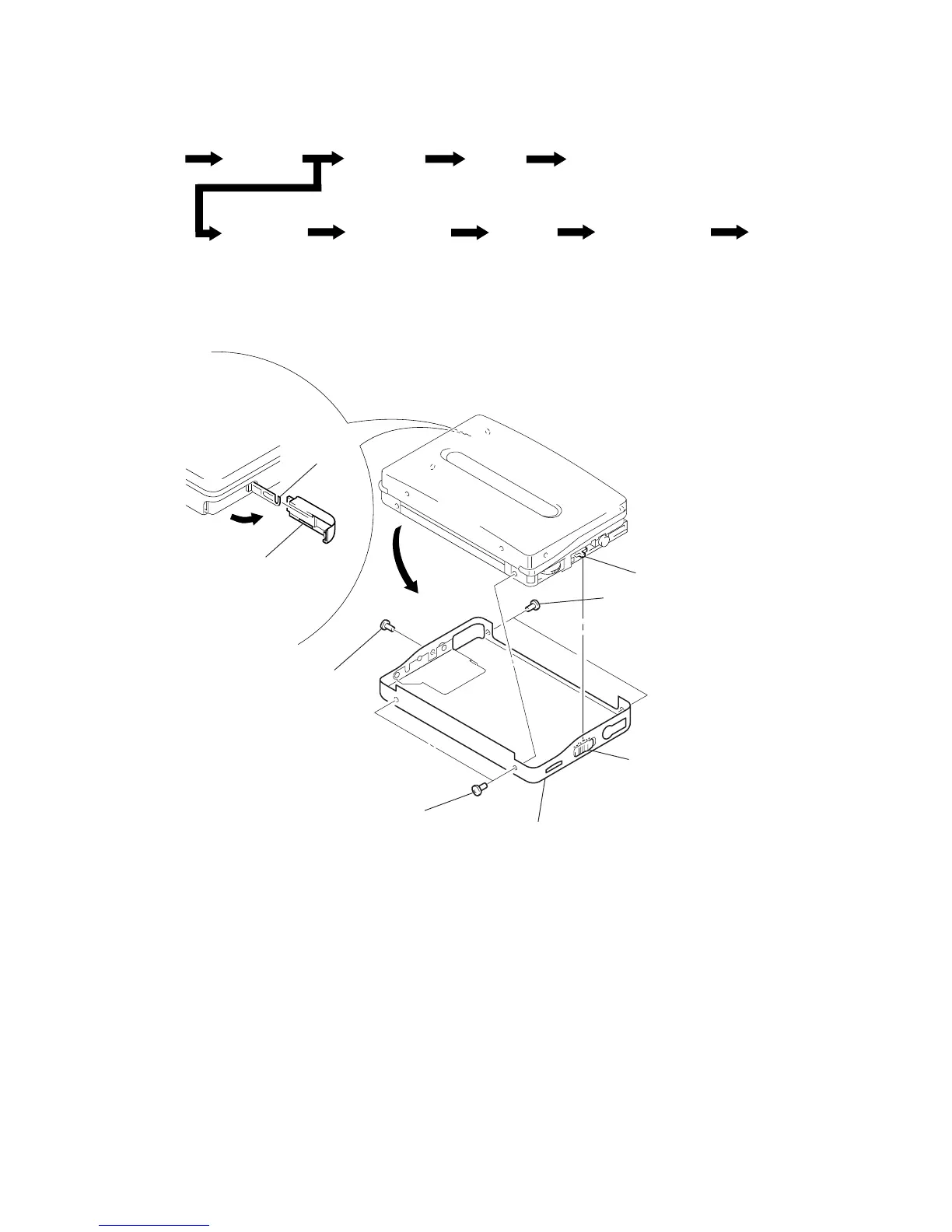

3-1. CASE BLOCK ASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
Case block
assembly
Cassette lid
assembly
Reel ornament
assembly
Set
Belt (F2)
Holder
assembly
Main board
Magnetic head
(HP901)
Pinch lever (N/R)
assembly
Motor (F2) (M901)

Claw
1 Battery case Lid
5 Remove the case block assembly
in the direction of the arrow.
4 Two screws
(M1.4
× 2.5)
2 Screw
(M1.4
× 2.5)
3 Two screws
(M1.4
× 2.5)

knob (HOLD)
S707
Note: When assembling the case bloc
k
assembly, align the knob (HOLD)
with the position of S707.
