– 10 –

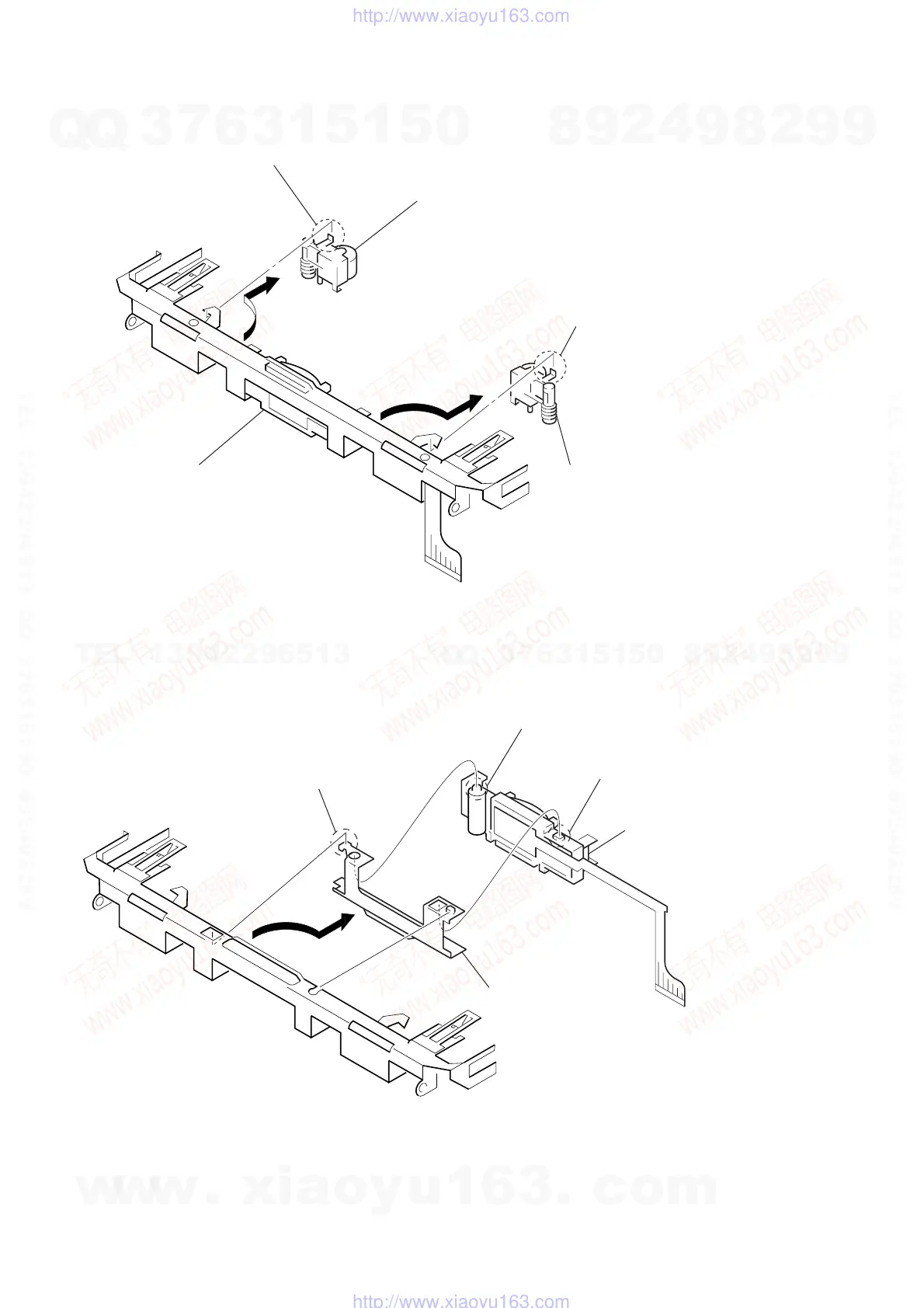

LEVER (N2)/(R2) ASSY, PINCH
HEAD, MAGNETIC (PLAYBACK) (HP901)
1
claw
3
claw
2
Remove “lever (R2) assy, pinch”
in the direction of the arrow.
4
Remove “lever (N2) assy, pinch
”
in the direction of the arrow.
holder (FA) assy
4
boss
lever, head
3
claw
1
claw
2
5
head, magnetic (playback
)
(HP901)
