– 24 –

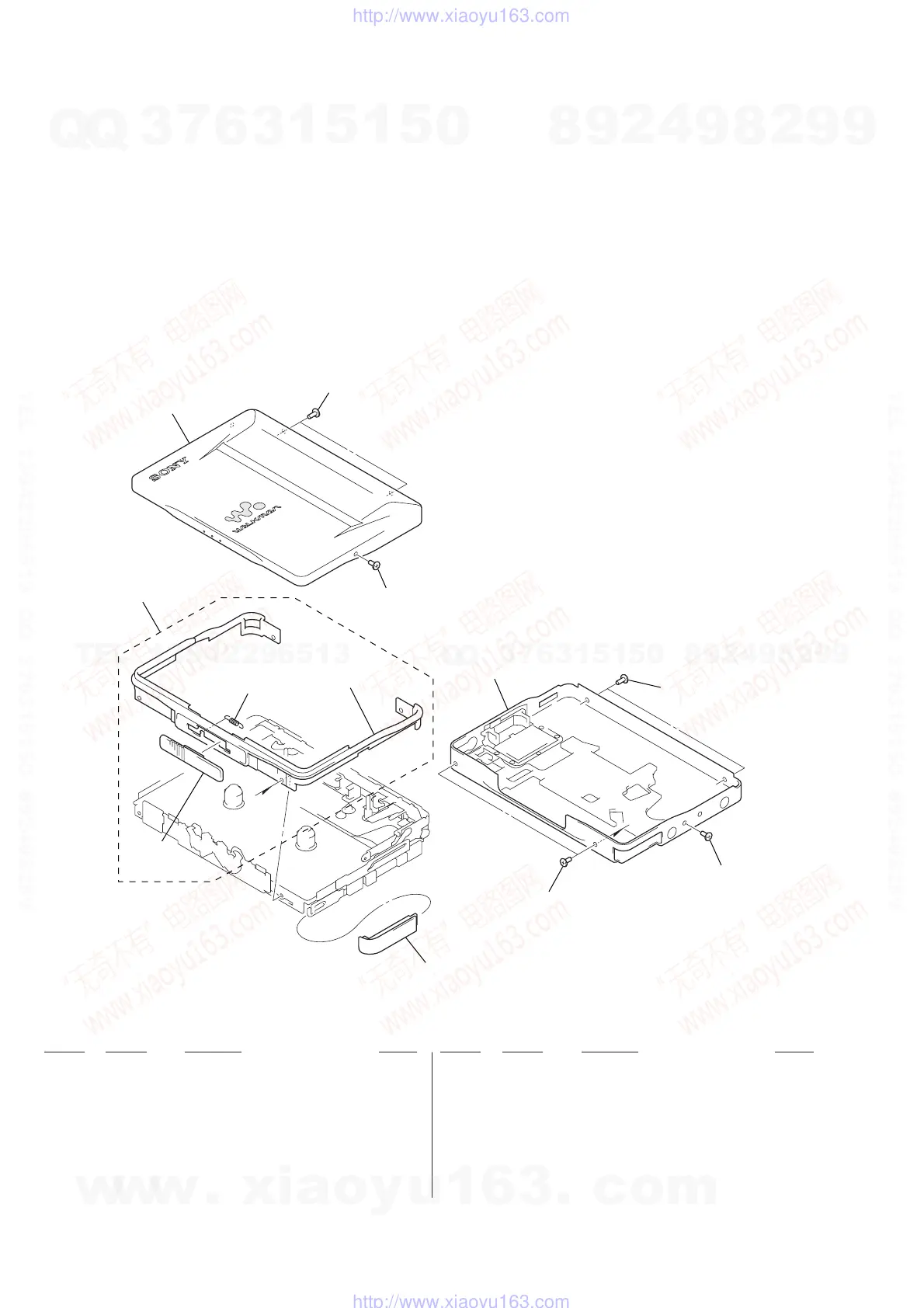

(1) CASE SECTION
SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
not supplied
not
supplied
4
4
4
4
5
6
3
2
8
1
1 3-221-642-11 LID, BATTERY CASE (BLUE)
1 3-221-642-21 LID, BATTERY CASE (PINK)
1 3-221-642-31 LID, BATTERY CASE (SILVER)
2 A-3052-259-A ORNAMENT (OPEN) BLOCK ASSY
3 3-029-220-11 SPRING, TENSION
4 4-218-229-25 SCREW (1.4), MI (PINK, SILVER)
4 4-218-229-27 SCREW (1.4), MI (BLUE)
5 4-218-229-09 SCREW (1.4), MI (PINK, SILVER)
5 4-218-229-11 SCREW (1.4), MI (BLUE)
6 X-3379-836-1 CASE SUB ASSY (L) (BLUE)
6 X-3379-837-1 CASE SUB ASSY (P) (PINK)
6 X-3379-839-1 CASE SUB ASSY (S) (SILVER)
8 X-3379-840-1 LID SUB ASSY (L), CASSETTE (BLUE)
8 X-3379-841-1 LID SUB ASSY (P), CASSETTE (PINK)
8 X-3379-843-1 LID SUB ASSY (S), CASSETTE (SILVER)
