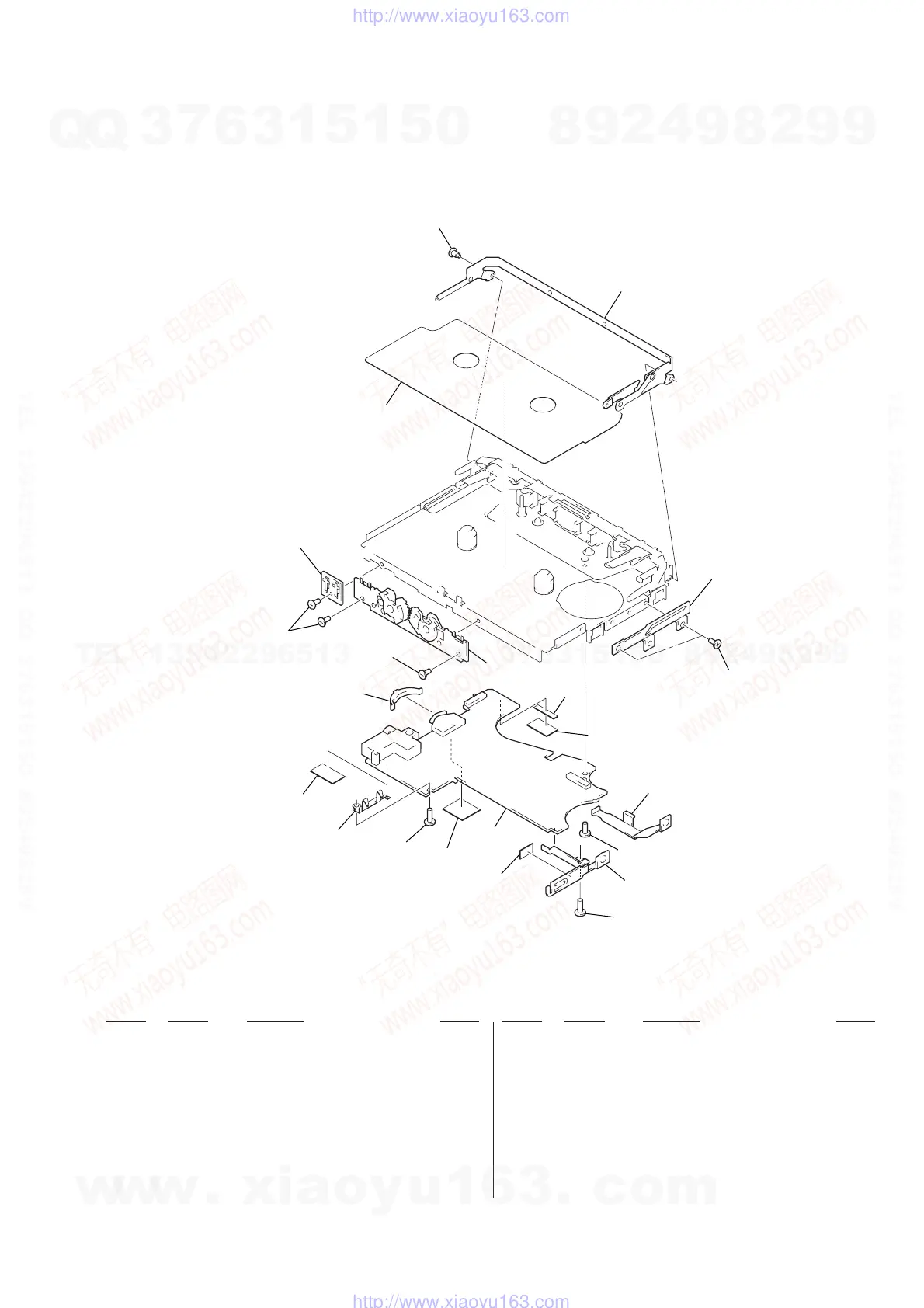

(2) MAIN BOARD SECTION
S704
61
62
60
63
64
55
53
57
58
56
53
51
52
55
54
68
67
52
66
65
59
51 3-038-056-01 TERMINAL BOARD (MINUS) (/M)
52 3-375-114-41 SCREW
53 3-224-837-01 SHEET (ATS)
* 54 A-3021-344-A MAIN BOARD, COMPLETE
55 3-224-466-01 SHEET (BOARD)
56 4-225-239-01 KNOB (JOG)
57 3-366-892-01 SCREW (M1.4)
58 X-3377-717-1 BRACKET ASSY (/M)
59 4-963-883-51 SCREW (M1.4), PRECISION PAN
60 3-221-643-51 COVER, MD
61 3-365-630-41 SCREW (M1.4)
62 X-3379-431-1 BRACKET (CASSETTE/910) ASSY
63 3-038-054-01 LEVER (B) (/M), LOCK
64 3-704-197-01 SCREW (M1.4), SPECIAL HEAD
65 3-029-213-01 TERMINAL BOARD, BATTERY
66 3-345-648-71 SCREW (M1.4), TOOTHED LOCK
67 X-3377-726-1 TERMINAL BOARD ASSY (/M)
68 3-031-460-01 SHEET (BT)
S704 1-762-553-11 SWITCH, LEAF
