24 Additional Information
Sony KV-HW21M85 Group A26 (GB_4-097-806-11 (2)

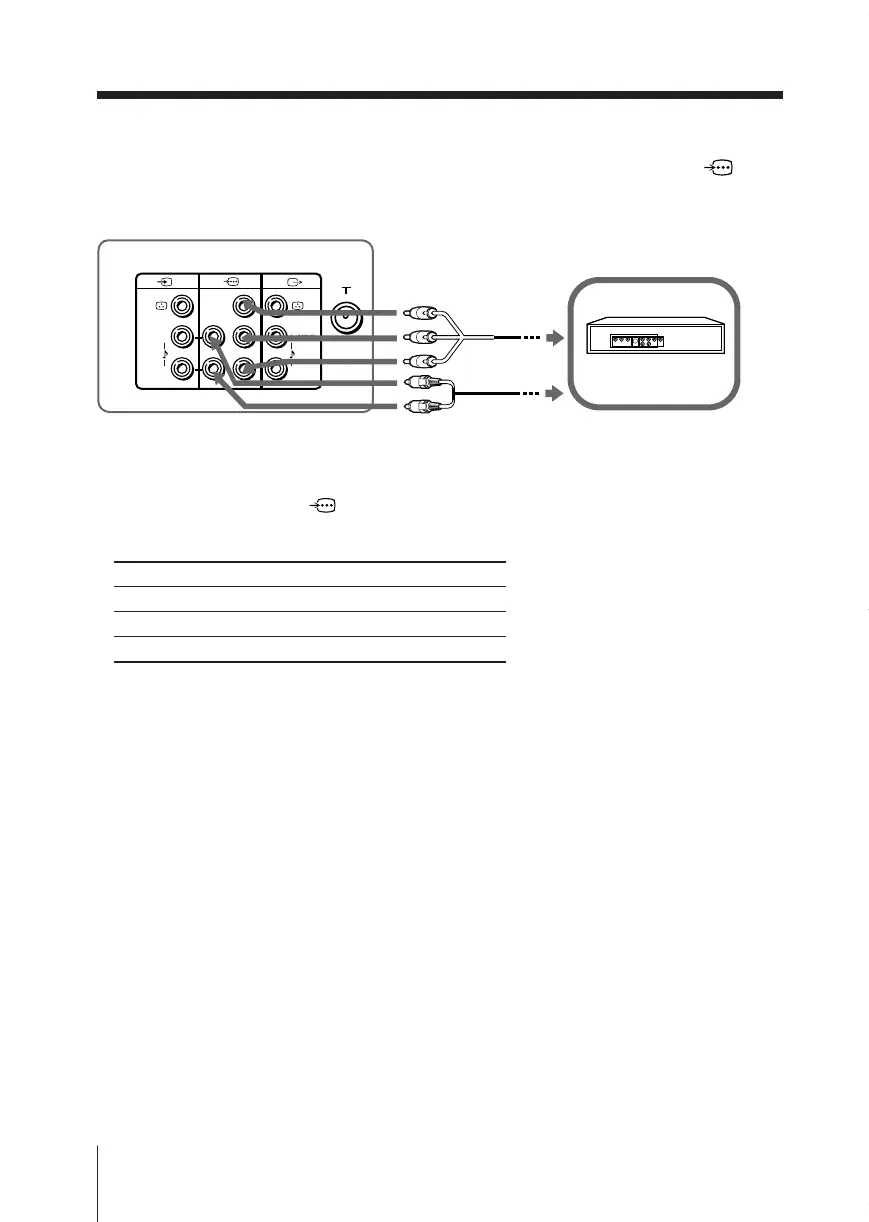

DVD player
TV rear panel
Component video
cable
(not supplied)
Audio cable
(not supplied)
Connect To (on the DVD player)
Y (green) Y
CB (blue) CB, PB, Cb or B-Y
CR (red) CR, PR, Cr or R-Y
Connecting to the component video input terminal ( )
Notes
• If your DVD player can output interlace and progressive mode signals, select the interlace
output when connecting to (component video input) on your TV. Your TV can receive
either 525i/60Hz or 625i/50Hz interlace signals.
• Some DVD player terminals may be labeled differently:
• If you select “DVD” on your TV screen, the signal from the T (monitor output) jacks will not
be output properly. This does not indicate a malfunction.
L
R
R
1
L
Y
C
B
C
R
(MONO) (MONO)
