Sony WEGA KV-HW21 - Overview of Controls; TV Top Control, Front and Rear Panels

8 Overview of Controls
Sony KV-HW21M85 Group A26 (GB_4-097-806-11 (2)
L
R
R
1
L
Y
C
B
C
R
PROG
MENUSOUND MODE
098 7 6
(MONO) (MONO)
2
L
R
2
3
4
2
5
qf qd
qs
qa
1
(MONO)
Overview of Controls
TV front panel
TV rear panel

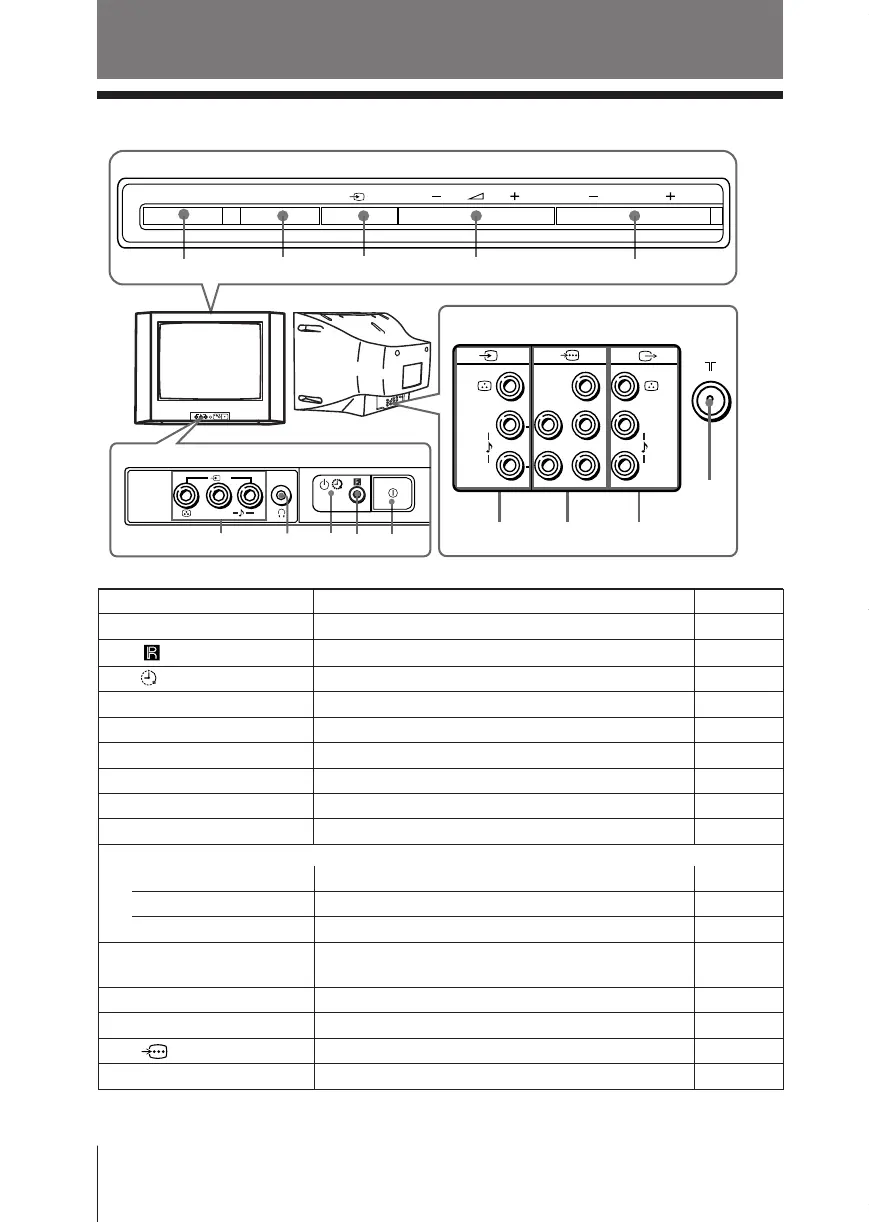

x TV top control, front and rear panels
TV top control panel
Button/Terminal Function Page
1 ! Turn off or turn on the TV. 6
2 Remote control sensor. –
3 Wake Up indicator. 19
3 1 Standby indicator. 6
4 i Headphone jack. –
5 t2 Video input terminal 2. 23
6 PROG +/– Select program number. –
7 2 +/– Adjust volume. –
8 t Select TV or video input. 23
Menu operations
7 2 +/– Select and adjust items. –
8 t Confirm selected items. –
9 MENU Display or cancel the menu. –
0 SOUND MODE Select sound mode options with a 11
5-Band Graphic Equalizer display.
qa 8 Antenna input terminal. 23
qs T Monitor output terminal. 24
qd Component video input terminal. 24
qf t1 Video input terminal 1. 23
