WM-BF49

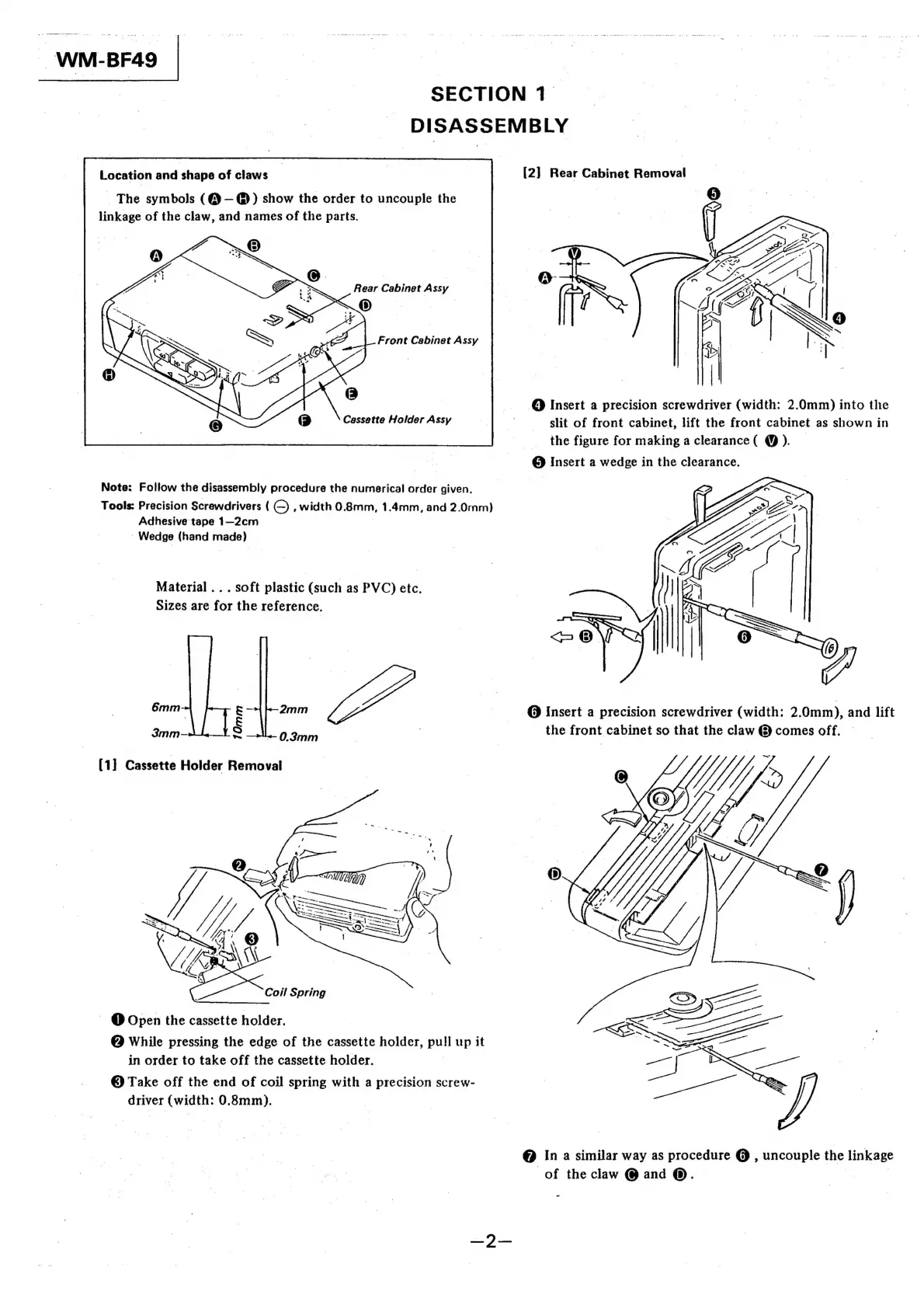

SECTION
1
DISASSEMBLY
Location
and
shape
of
claws
—
[2]
Rear
Cabinet
Removal
_
The
symbols
(€@}—@)
show
the
order
to
uncouple
the
linkage
of
the
claw,
and
names
of
the
parts.
@
Insert
a
precision
screwdriver
(width:
2.0mm)
into
thie
slit
of
front
cabinet,
lift
the
front
cabinet
as
shown
in
the
figure
for
making
a
clearance
(
@
).
@®
Insert
a
wedge
in
the
clearance.
Note:
Follow
the
disassembly
procedure
the
numerical
order
given.
Tools:
Precision
Screwdrivers
((C)
,
width
0.8mm,
1.4mm,
and
2.0mm)
Adhesive
tape
1—2cm
.
Wedge
(hand
made)
Material
..
.
soft
plastic
(such
as
PVC)
etc.
Sizes
are
for
the
reference.
6mm-
|
FA
-
@
Insert
a
precision
screwdriver
(width:
2.0mm),
and
lift
~
ll
0.3mm
|
|
|
a
3mm-—
the
front
cabinet
so
that
the
claw
@
comes
off.
[1]
Cassette
Holder
Removal
~
@Open
the
cassette
holder.
|
@
While
pressing
the
edge
of
the
cassette
holder,
pull
up
it
in
order
to
take
off
the
cassette
holder.
|
@®
Take
off
the
end
of
coil
spring
with
a
precision
screw-
driver
(width:
0.8mm),
@
In
a
similar
way
as
procedure
@
,
uncouple
the
linkage
of
the
claw
@
and
@.
ee
|
-
