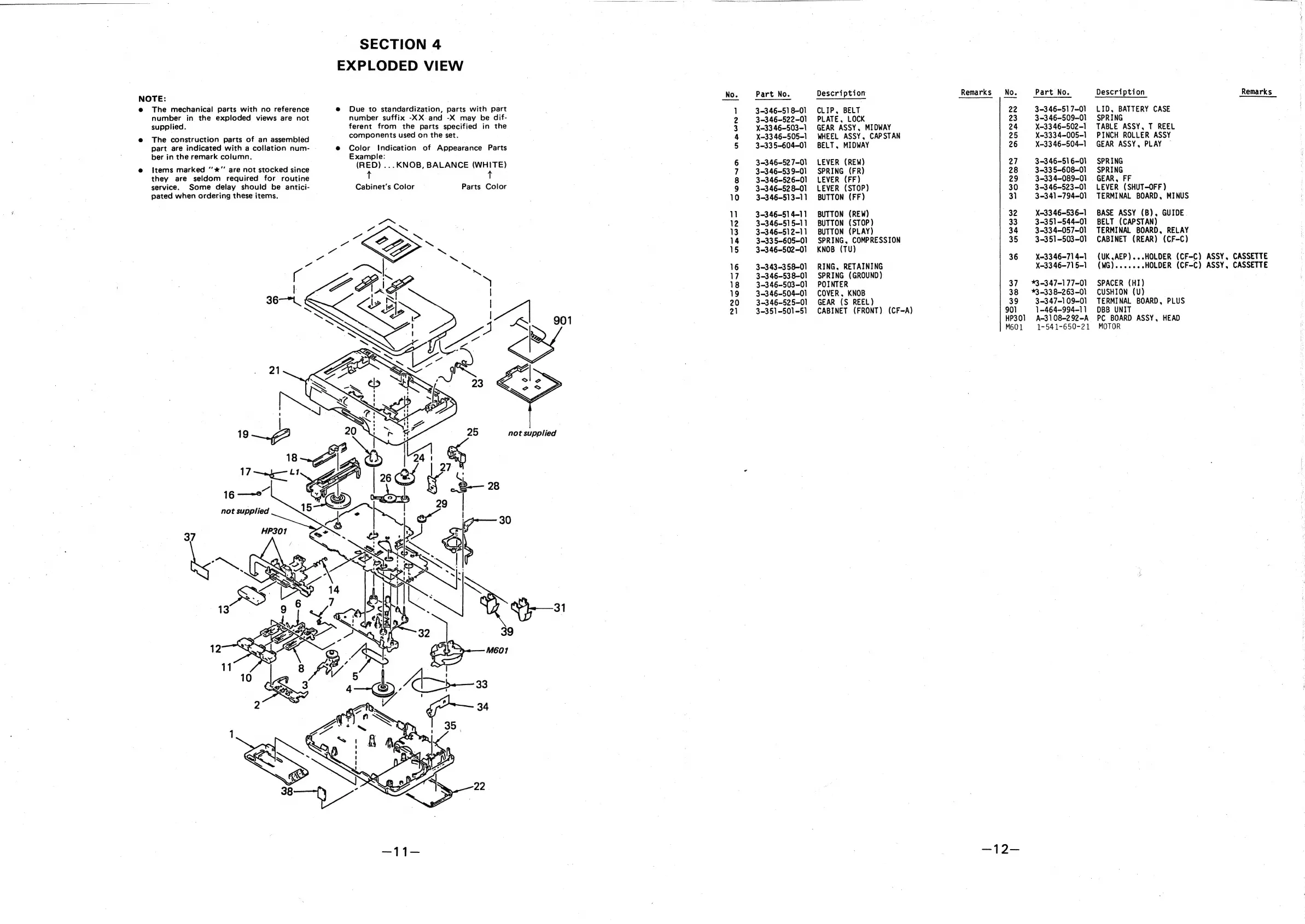

Sony WM-BF49 - Section 4 Exploded View

NOTE:
@ The mechanical parts with no reference
number in the exploded views are not
supplied.
e The construction parts of an assembled
part are indicated with a collation num- |
ber in the remark column.
e {tems marked ‘*”’’ are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.
SECTION 4
EXPLODED VIEW
@ Due to standardization, parts with part
number suffix -XX-.and -X may be dif-
ferent from the parts specified in the
components used on the set.
@ Color Indication of Appearance Parts
Example: |
(RED) ...KNOB, BALANCE (WHITE)
+
Parts Color
Cabinet's Color
=
.°]
od
owooan ov ON tf Wh —
™N —
13
—
Nn =
Oe
ouano
—
~
Part No.
3-3 46-51 8-01
3-346-522-01
X-33 46-503-1
X-33 46-505-1
3-335-604-01
3-3 46-52 7-01
3-3 46-53 9-01
3-3 46~526-01
3-3 46-52 8-01
3-3 46-513-11
3-3 46~51 4—11
3-3 46-51 5-11
3~3 46-51 2-11
3~335-605-01
3=346-502-01
3-3 43-3 58-01
3-3 46-53 8-01
3-3 46-503-01
3-3 46-504-01
3-3 46-525-01
3-351~501-51
CLIP, BELT
PLATE, LOCK
GEAR ASSY, MIDWAY
WHEEL ASSY, CAPSTAN
BELT, MIDWAY
LEVER (REW)
SPRING (FR)
LEVER (FF)
LEVER (STOP)
BUTTON (FF)
BUTTON (REW)
BUTTON (STOP)
BUTTON (PLAY)
SPRING, COMPRESSION
KNOB (TU)
RING, RETAINING
SPRING (GROUND)
POINTER
COVER, KNOB
GEAR (S REEL)
CABINET (FRONT) (CFA)
a ee
37
38
39
90]
HP301
M601
Part No.
3-3 46-51 7-01
3-3 46-509-01
X-33 46-502-1
X~333 4-005-1
X-3346-504—1
3-3 46-51 6-01
3-33 5-608-01
3-33 4-089-01
3-3 46-523-01
3~341-794-01
X-33 46-536—1
3-351~544-01
3-33 4-057-01
3~351-503-01
X-33 46-71 4-1
X-33 46-71 5-1
*3~-347-1 77-01
*3-338-263-01
3~3 47-1 09-01
1-464-994~1 1
A-31 08-2 92-A
1-541-650-21
Description Remarks
LID, BATTERY CASE
SPRING
TABLE ASSY, T REEL
PINCH ROLLER ASSY
GEAR ASSY, PLAY
SPRING
SPRING
GEAR, FF
LEVER (SHUT-OFF)
TERMINAL BOARD, MINUS
BASE ASSY (B), GUIDE.
BELT (CAPSTAN)
TERMINAL BOARD, RELAY
CABINET (REAR) (CF-C)
(UK ,AEP)...HOLDER (CF-C) ASSY, CASSETTE
(WG)......eHOLDER (CF~C) ASSY, CASSETTE
SPACER (HI)
CUSHION (U)
TERMINAL BOARD, PLUS
DBB UNIT
PC BOARD ASSY, HEAD
MOTOR
