Sony WM-FX877 - Playback Mechanism Disassembly; Pinch Lever (N);(R) Assy Disassembly; Magnetic Head Disassembly

– 11 –

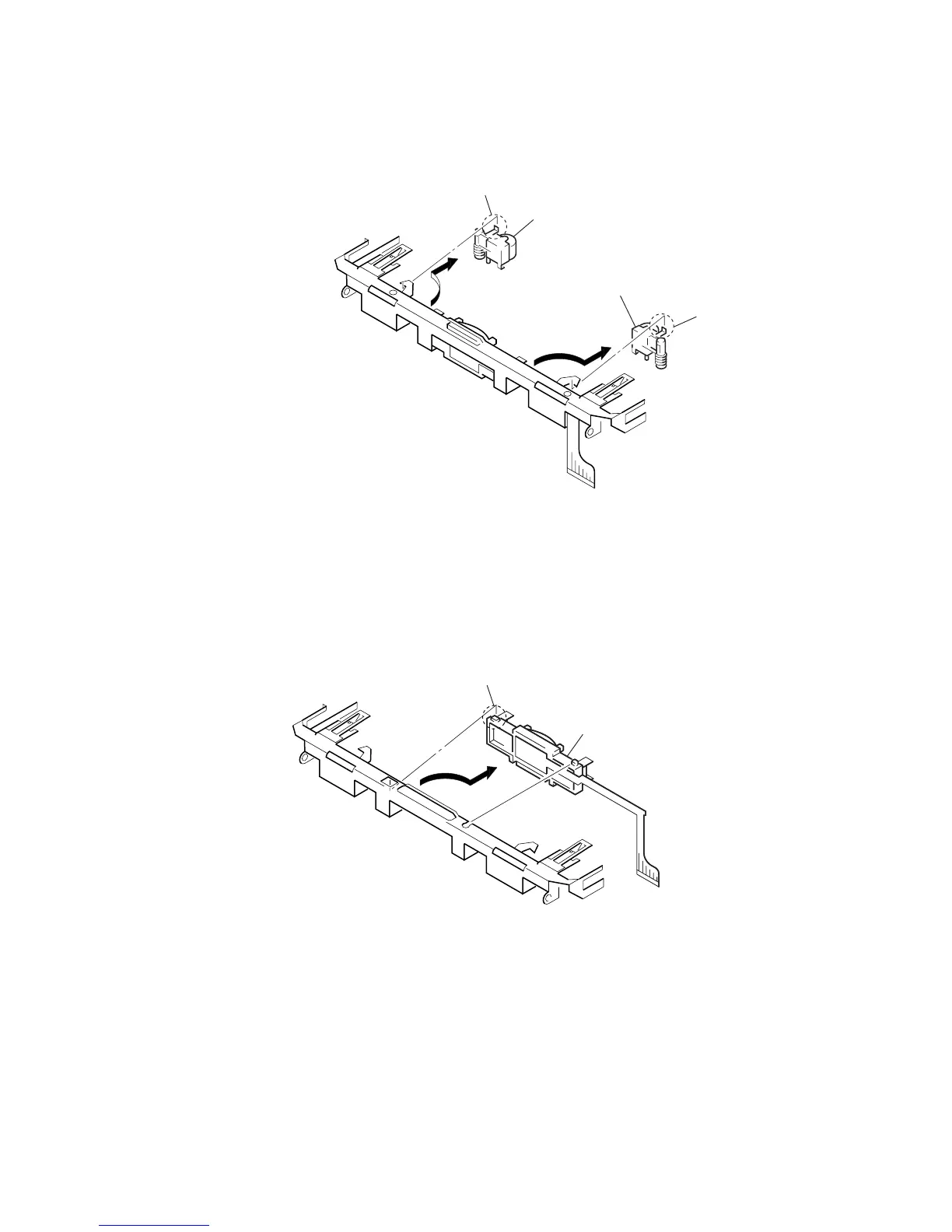

PINCH LEVER (N)/(R) ASSY
HEAD, MAGNETIC (PLAY BACK) (HP901)
1 claw
2 Remove the pinch lever (R) assy
in the dereciton of the arrow.
4 Remove the pinch lever (N) assy
in the direction of the arrow.
3 claw
1 claw
2 Remove the magnetic head (HP901
)
in the direction of the arrow.
