Sony WM-FX877 User Manual

– 4 –

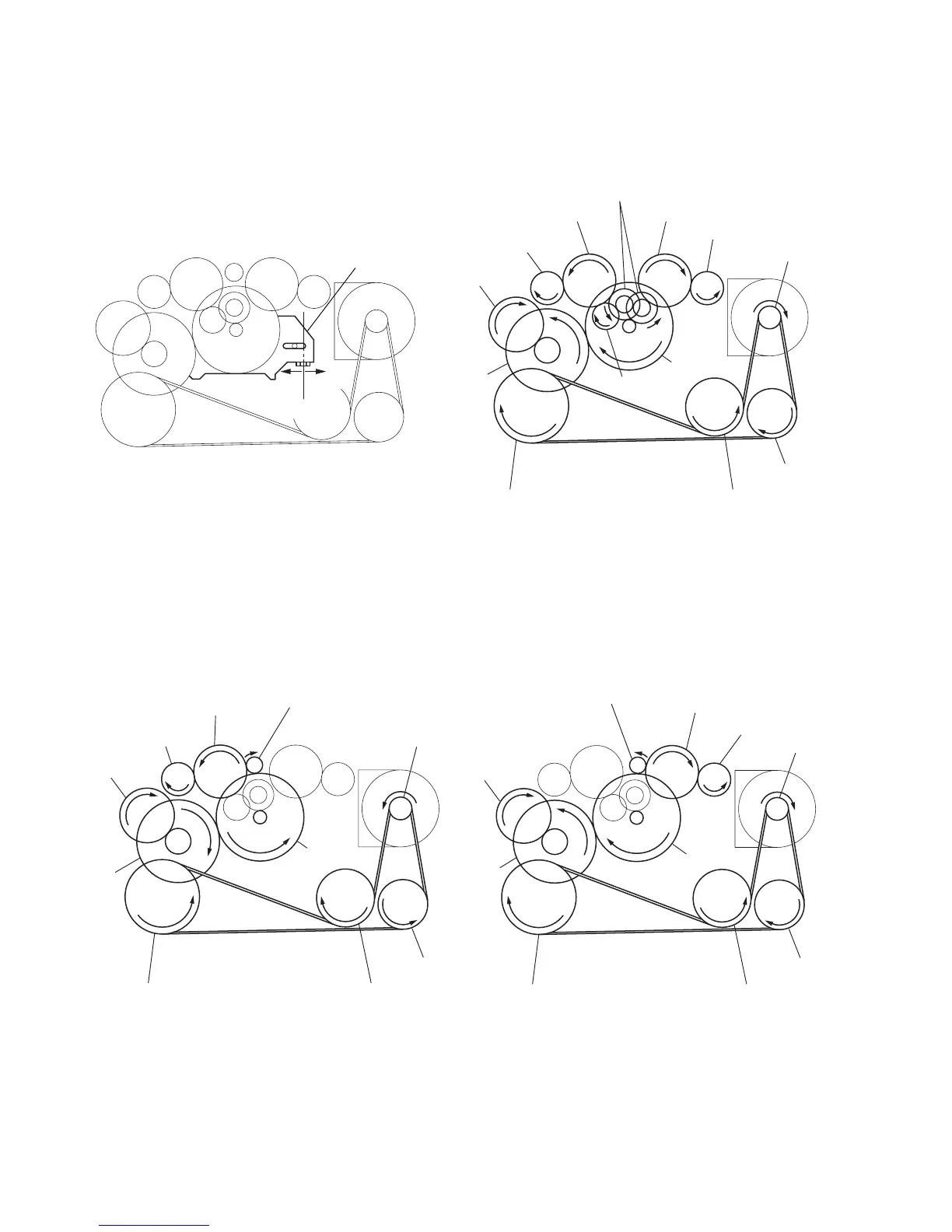

Slider (NR) Rotation system
Rotation system during PLAY.
Rotation system during FF. Rotation system during REW.
slider (NR)
side F
side R
center
insert flywheel (N) insert flywheel (R)
reverse pulle
y
clutch assy (F)
gear (Y)
cam gear
gear (REEL) (side T)
motor pulley
idler gear (A) (side T)
gear (FR)
(FF: left side)
insert flywheel (N) insert flywheel (R)
reverse pulley
clutch assy (F)
idler gear (B)
gear (Y)
cam gear
gear (REEL) (side T)
gear (REEL) (side S)
motor pulley
idler gear (A) (side T)
idler gear (A) (side S)
gear (NR)
(FWD : left side/
REV : right side)
insert flywheel (N) insert flywheel (R)
reverse pulley
clutch assy (F)
gear (Y)
cam gear
gear (REEL)
(side S)
motor pulle
y
idler gear (A)
(side S)
gear (FR)
(REW: right side)
