Sony WM-W800 Service Manual

REVISED wM-wsoo
SECTION 5 I--' -

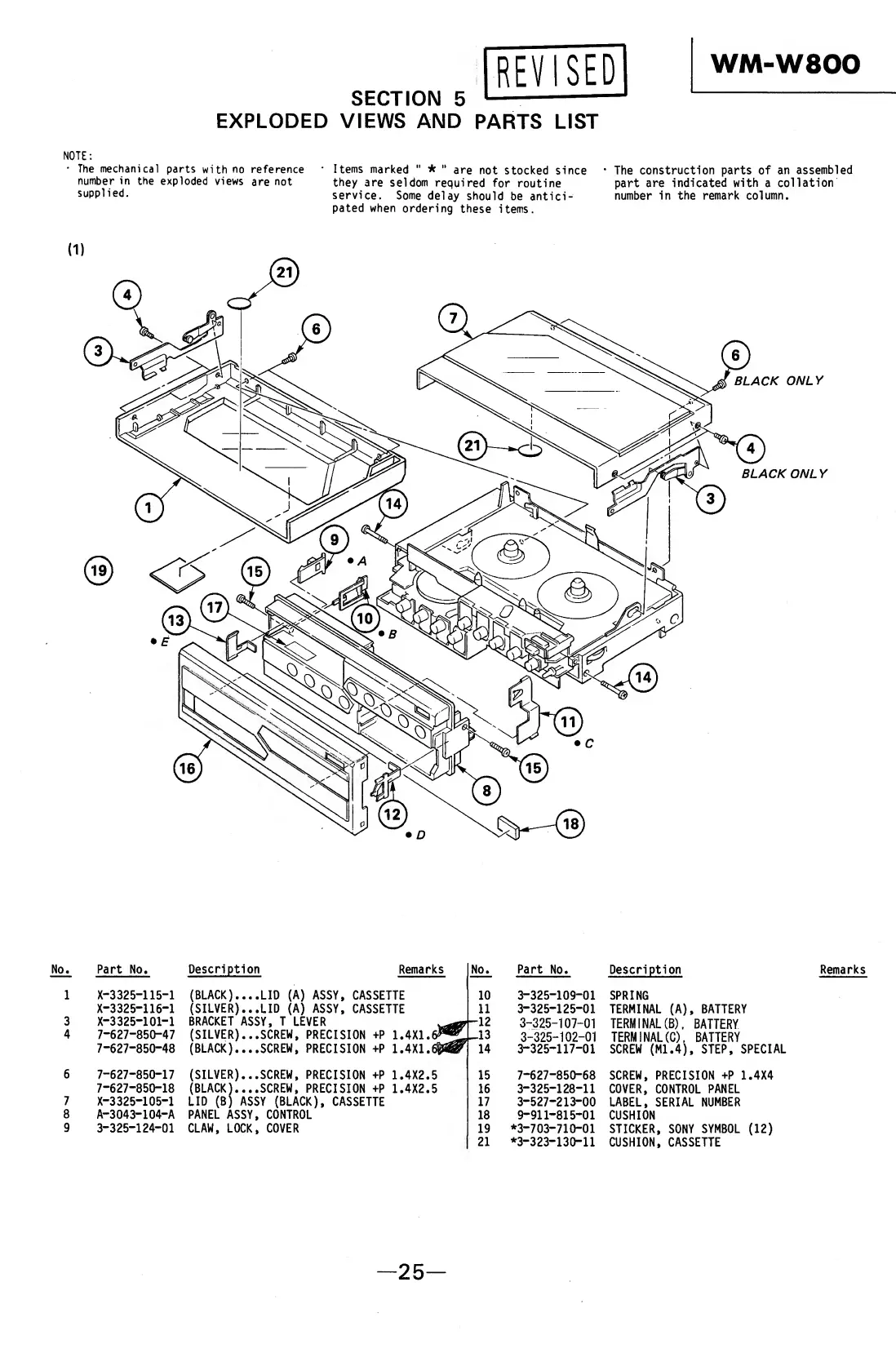

EXPLODED VIEWS AND PARTS LIST
NOTE:
• The mechanical parts with no reference * Items marked " * " are not stocked since • The construction parts of an assembled
number in the exploded views are not they are seldom required for routine part are indicated with a collation
supplied. service. Some delay should be antici- number in the remark column.
pated when ordering these items.
(D
1
X-3325-115-1
(BLACK)...,
.LID (A) ASSY, CASSETTE 10
3-325-109-01 SPRING
X-3325-116-1
SILVER)..,
.LID (A) ASSY, CASSETTE
11 3-325-125-01 TERMINAL (A), BATTERY
3
X-3325-101-1
BRACKET ASSY, T LEVER
—12
3-325-107-01
TERM 1NAL(B), BATTERY
4
7-627-850-47
(SILVER)..,
.SCREW, PRECISION +P
1.4X1.6*51
—13
3-325-102-01
TERM 1NAL (C), BATTERY
7-627-850-48 (BLACK)..., .SCREW, PRECISION +P
1.4X1.®^
14
3-325-117-01 SCREW (Ml.4), STEP, SPECIAL
6
7-627-850-17
(SILVER)..,
.SCREW, PRECISION +P
1.4X2.5 15 7-627-850-68 SCREW, PRECISION +P 1.4X4
7-627-850-18
(BLACK)...,
.SCREW, PRECISION +P
1.4X2.5
16 3-325-128-11 COVER, CONTROL PANEL
7
X-3325-105-1
LID (B) ASSY (BLACK), CASSETTE
17
3-527-213-00 LABEL, SERIAL NUMBER
8
A-3043-104-A PANEL ASSY,
, CONTROL 18
9-911-815-01 CUSHION
9
3-325-124-01
CLAW, LOCK,
, COVER
19 *3-703-710-01 STICKER, SONY SYMBOL (12)
21
*3-323-130-11 CUSHION, CASSETTE
25 -
