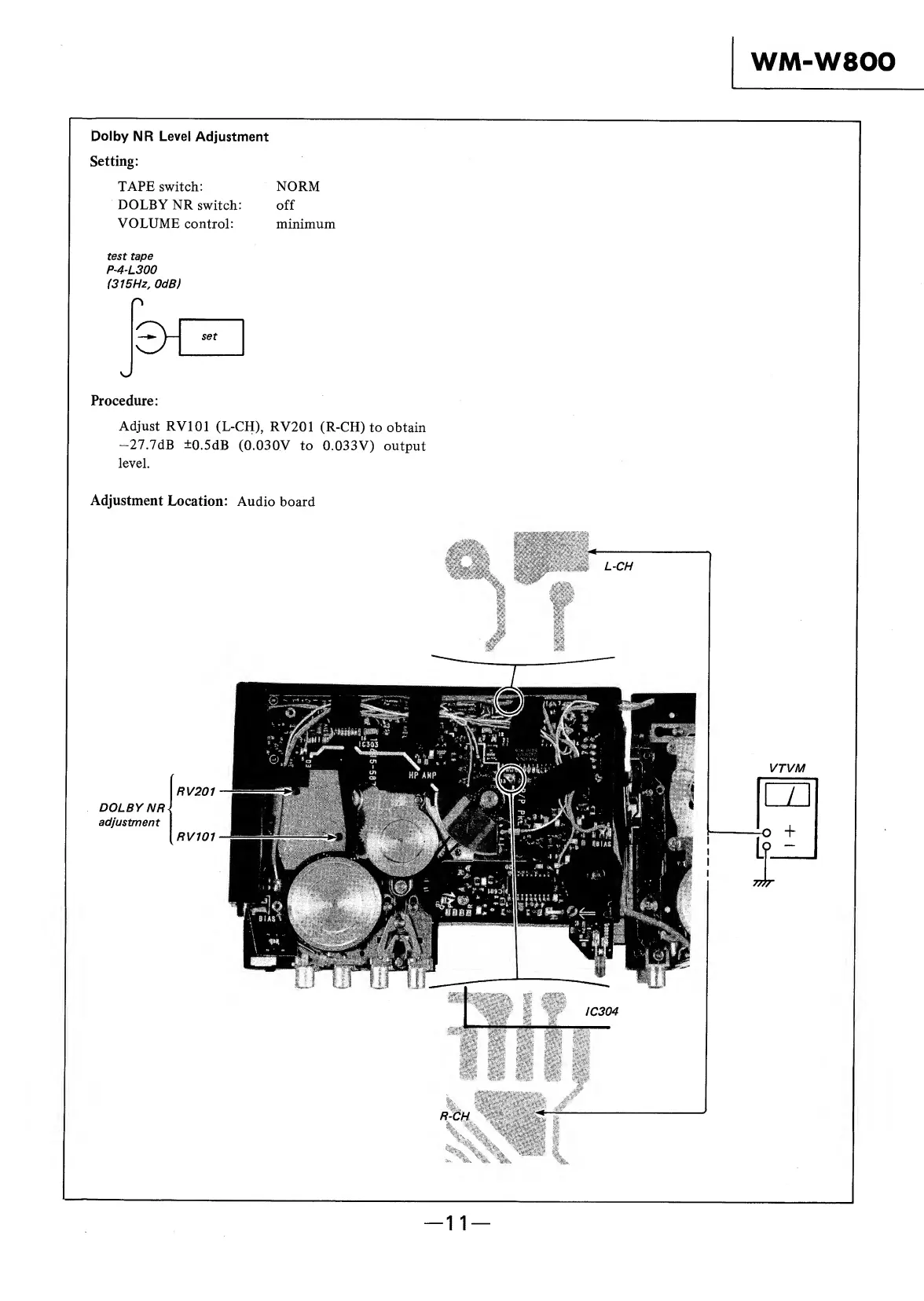

WM-W800
Dolby
NR
Level
Adjustment
Setting:
TAPE
switch:
NORM
DOLBY
NR
switch:
off
VOLUME
control:
minimum
test
tape
P-4-L300
(315
Hz,
OdB)
n
Procedure:
Adjust
RV101
(L-CH),
RV201
(R-CH)
to
obtain
—27.7dB
±0.5dB
(0.030V
to
0.033V)
output
level.
Adjustment
Location:
Audio
board
