Sony XES-M50 - Disassembly; Chassis (Upper); Front, Rear Panel

– 9 –

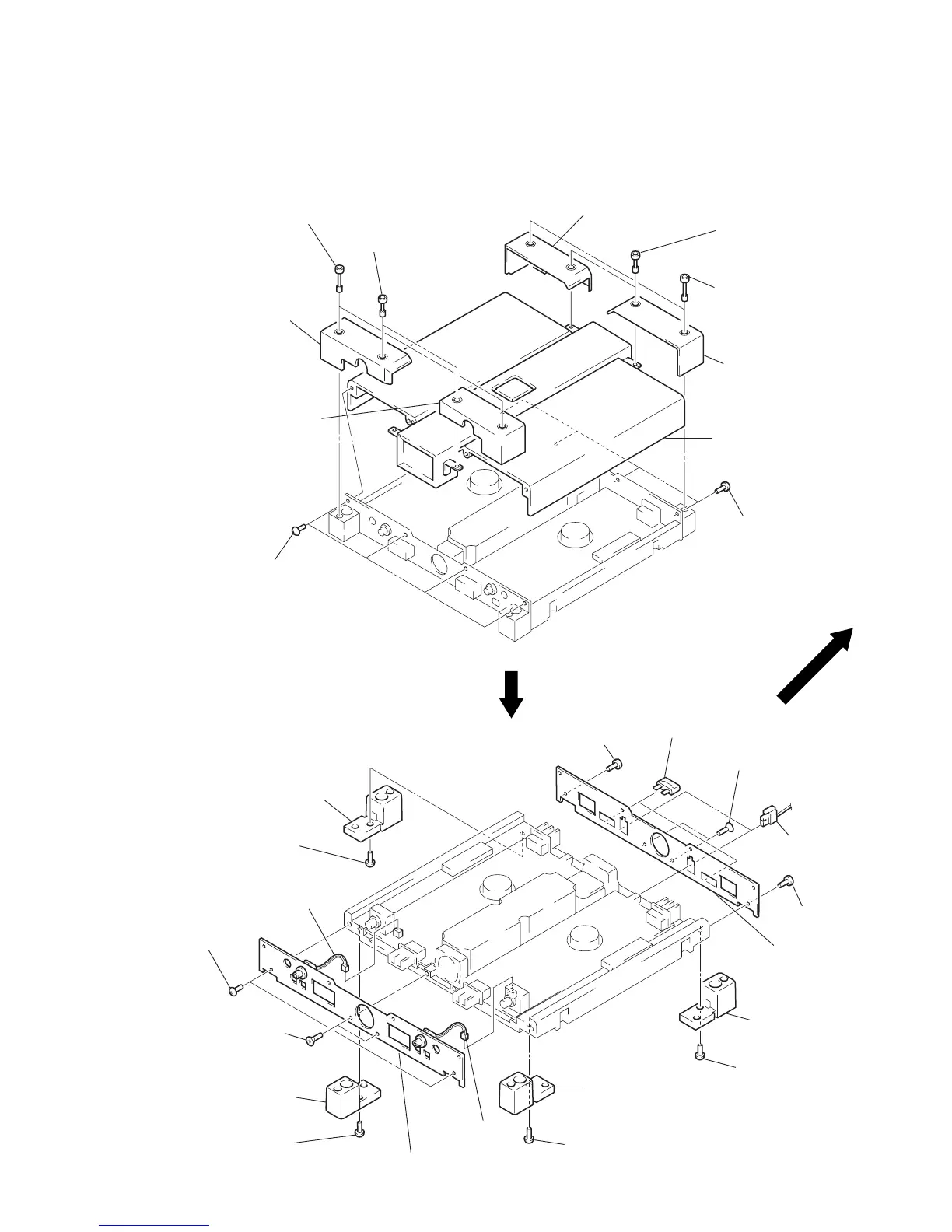

SECTION 2
DISASSEMBLY
7 two screws
(P2.6 × 6)
1 two hexagon
soket bolts
(4 × 17)
6 chassis (upper)
1 two hexagon soket bolts
(4 × 17)
FRONT, REAR PANEL
1 connector
(CNP102)
2 two hexagon socket bolts
(4 × 10)
3 cover (B)
4 cover (A)
2 two hexagon
soket bolts
(4 × 10)
3 cover (B)
5 four screws
(P2.6 × 6)
!º screw
(P2.6 × 6)
!¡ two screws
(P2.6 × 6)
3 two fuses
(blade type)
2 two cords
(with connector)
!º screw
(P2.6 × 6)
!™ rear panel
6 foot (B)
8 two screws
(P2.6 × 6)
4 screw
(B3 × 10)
5 foot (A)
9 front panel
1 connector
(CNP202)
4 screw
(B3 × 10)
5 foot (A)
4 screw
(B3 × 10)
4 screw
(B3 × 10)
6 foot (B)
4 cover (A)
5 four screws
(P2.6 × 6)
Note: Follow the disassembly procedure in the numerical order given.
CHASSIS (UPPER)
