XM-SD51X/SD61X
SECTION 2
DISASSEMBLY
Note : This set can be disassemble according to the following sequence.
Note : Follow the disassembly procedure in the numerical order given.

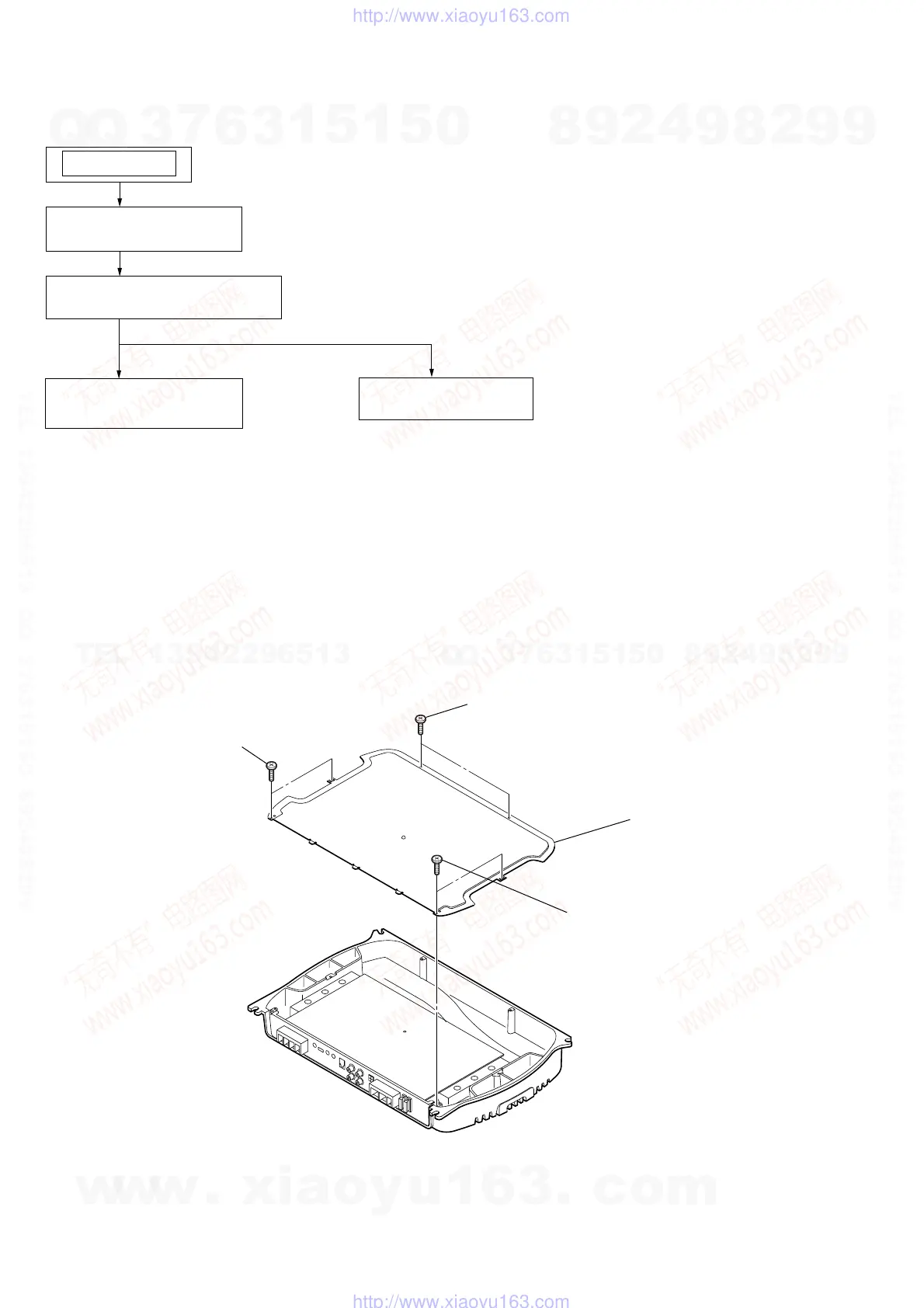

2-1. BOTTOM PLATE
4 bottom plat
e
1 two screws
(+ BTP 3 x 6)
3 two screws
(+ BTP 3 x 6)
2 two screws
(+ BTP 3 x 6)
2-1. BOTTOM PLATE
(Page 6)
2-2. MAIN BOARD SECTION
(Page 7)
2-4. LED2 BOARD
(Page 8)
SET
2-3. MAIN BOARD
(Page 7)
