– 6 –

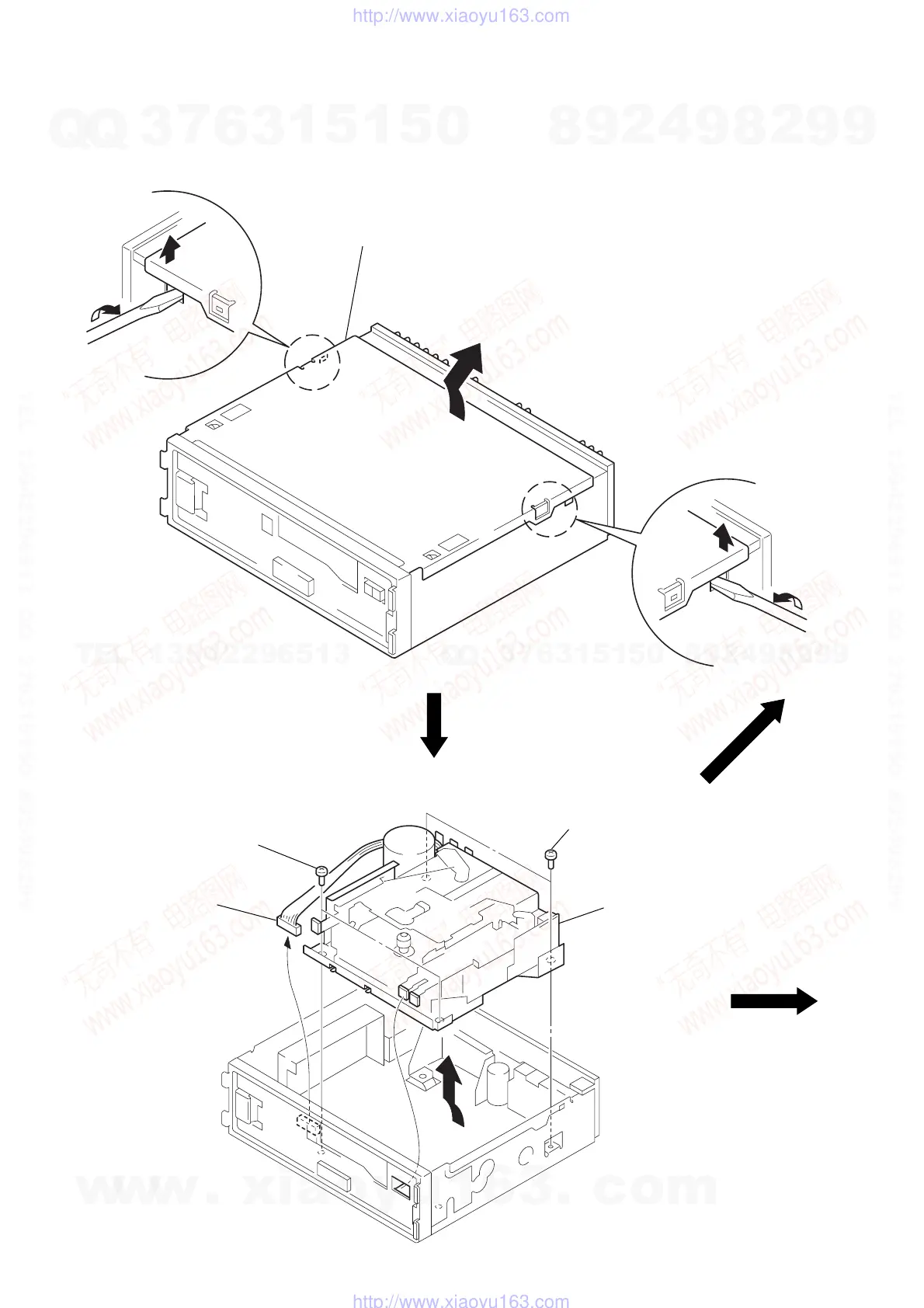

COVER ASS’Y
MECHANISM DECK BLOCK
Note: Follow the disassembly procedure in the numerical order given.
SECTION 2
DISASSEMBLY
1
two screws
(PTT2.6
×
6)
3
mechanism deck bloc
k
1
two screws
(PTT2.6
×
6)
2
connector
(CN901)
3
cover ass’y
