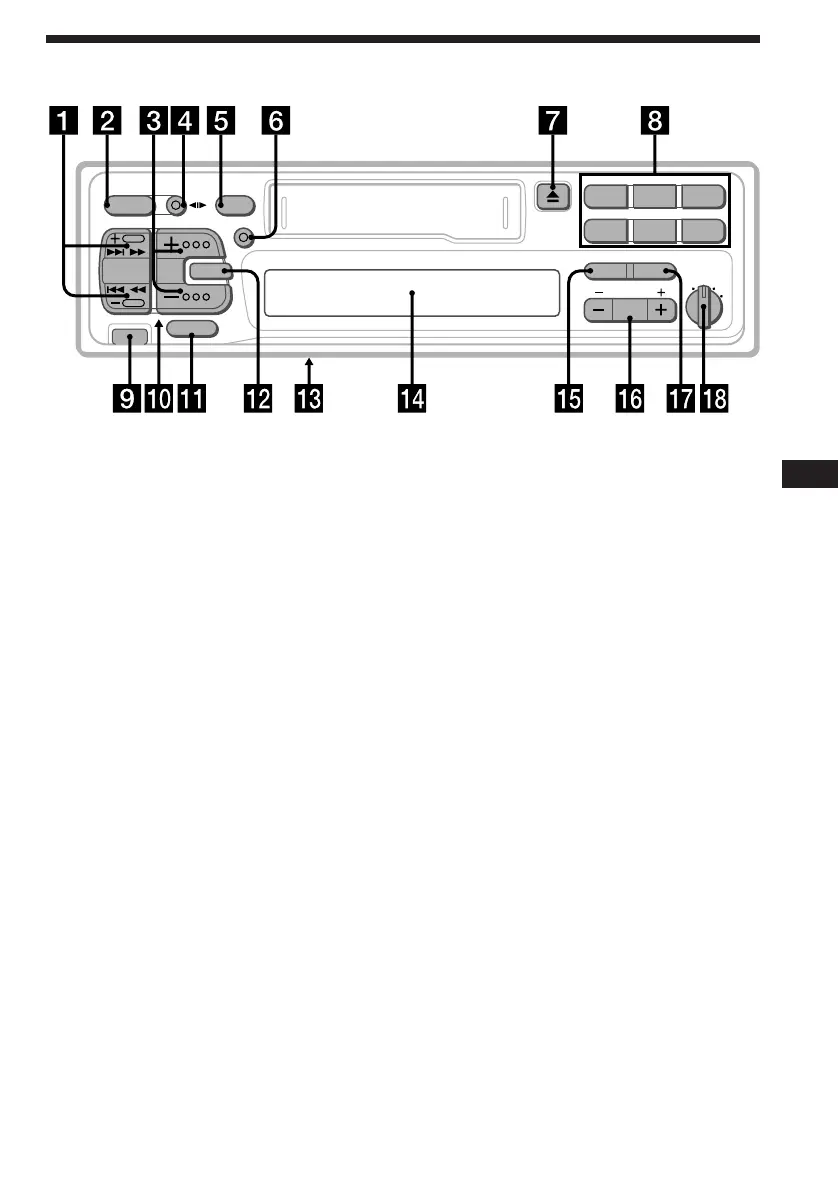

Location of controls
Refer to the pages for further details.
1 SEEK/AMS button 5, 6, 7, 8, 9, 10
2 SOURCE button (TAPE/TUNER/MD*/CD*)
5, 7, 9
3 (+)(–) (volume/bass/treble/left-right/
front-rear control) button 5, 8
4 MODE (*) button
During tuner reception:
BAND select 7
During tape playback:
Transport direction change 5
During MD or CD playback*:
MD/CD Unit select 9
5 OFF button 4, 5
6 DSPL (display mode change/time set)
button 5, 6, 8, 9
7 6 (eject) button 5
8 During tuner reception:
Preset number buttons 7
During tape/MD*/CD* playback:
(1) INTRO button 6, 10
(2) REPEAT button 6, 10
(3) SHUF (Shuffle)
button* 10
(5) ATA (Automatic Tuner
Activation) button 6
(6) BL SKIP (Blank Skip) button 6
9 RELEASE (front panel release) button
4, 12
Additional Information
0 Reset button (located on the front side
of the unit hidden by the front panel)
Press this button when you use this unit
for the first time, when you have changed
the car battery, or when the buttons of this
unit do not function properly.
!¡ ATT button 8
!™ SEL (control mode select) button 5, 8, 9
!£ POWER SELECT switch (located on the
bottom of the unit)
See “POWER SELECT Switch” in the
Installation/Connections manual.
!¢ Display window
!∞ BTM (Best tuning memory) button 7
!§ PRESET/DISC button* 7, 10
During tuner reception:
Preset station select 7
During MD/CD playback:
Disc select 10
!¶ LCL button 8
!• D-BASS control 8
* XR-C5100 only
The illustration of the front panel in this
manual is of the XR-C5100.
*
RELEASE
D-BASS
DSPL
MODE
SEEK
AMS
SEL
SOURCE
ATT
OFF
213
546
INTRO REPEAT SHUF
ATA BL SKIP
BTM LCL
DISC
PRESET
OFF
1
2
3
