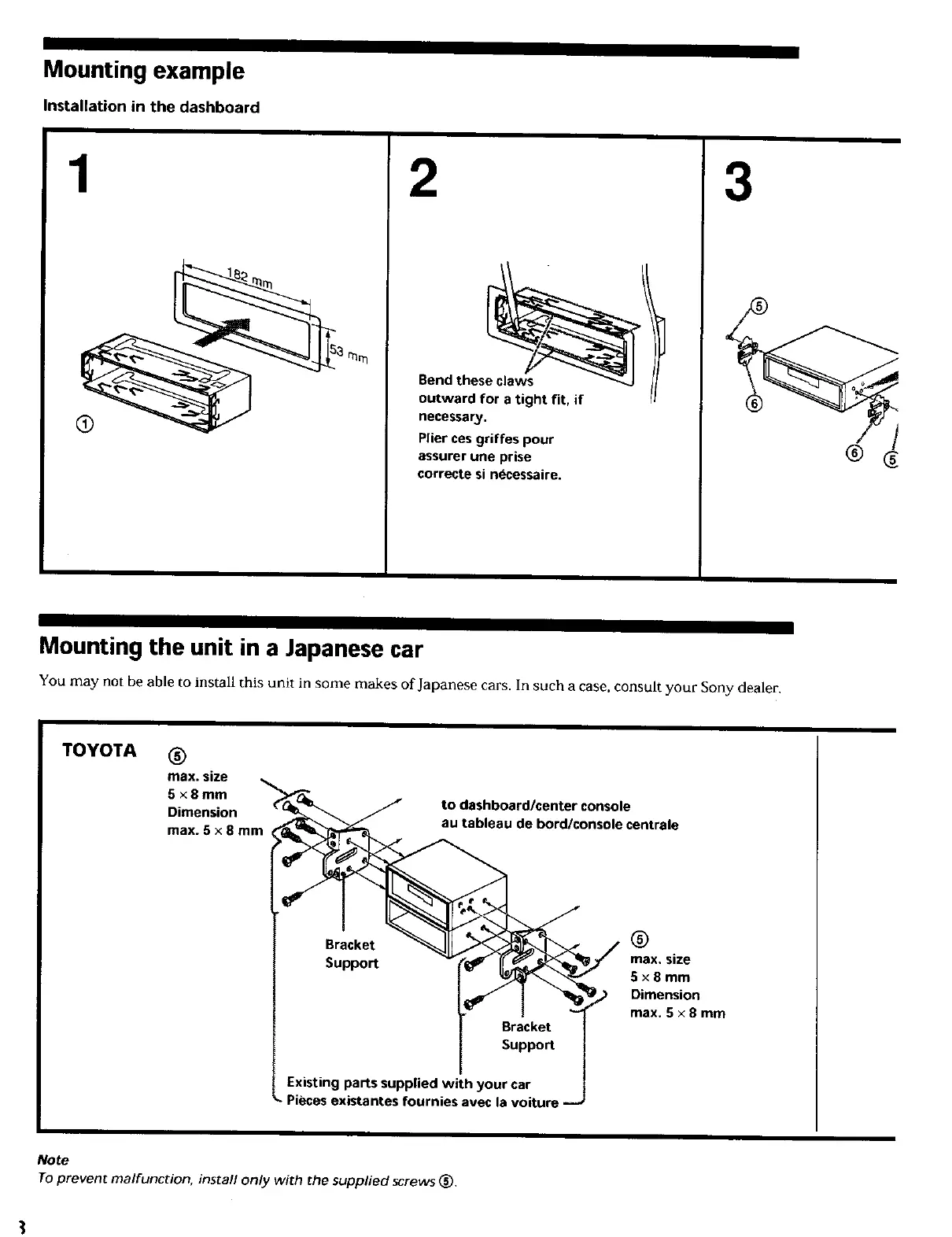

Mounting example
Installation in the dashboard
1
2
Bend these claws
outward for a tight fit, if
necessary.
Plier ces grilles pour
assurer une prise
correcte si necessaire.
3
®
Mounting the unit in a Japanese car
You may not be able to Install this unit in some makes of Japanese cars. In such a case, consult your Sony dealer.
TOYOTA ®
max, size
5xSmm
Dimension
max. 5 xB mm
to dashboard/centerconsole
au tableau de bord/consolecentrale
Bracket (_
Support max. size
5x8mm
Dimension
max. 5 × 8 mm
Bracket
Support
Existing parts supplied with your car
Pieces existantes fournies avec la voiture
Note
Toprevent malfunction, instal/onlywith the supplied screws(_.
