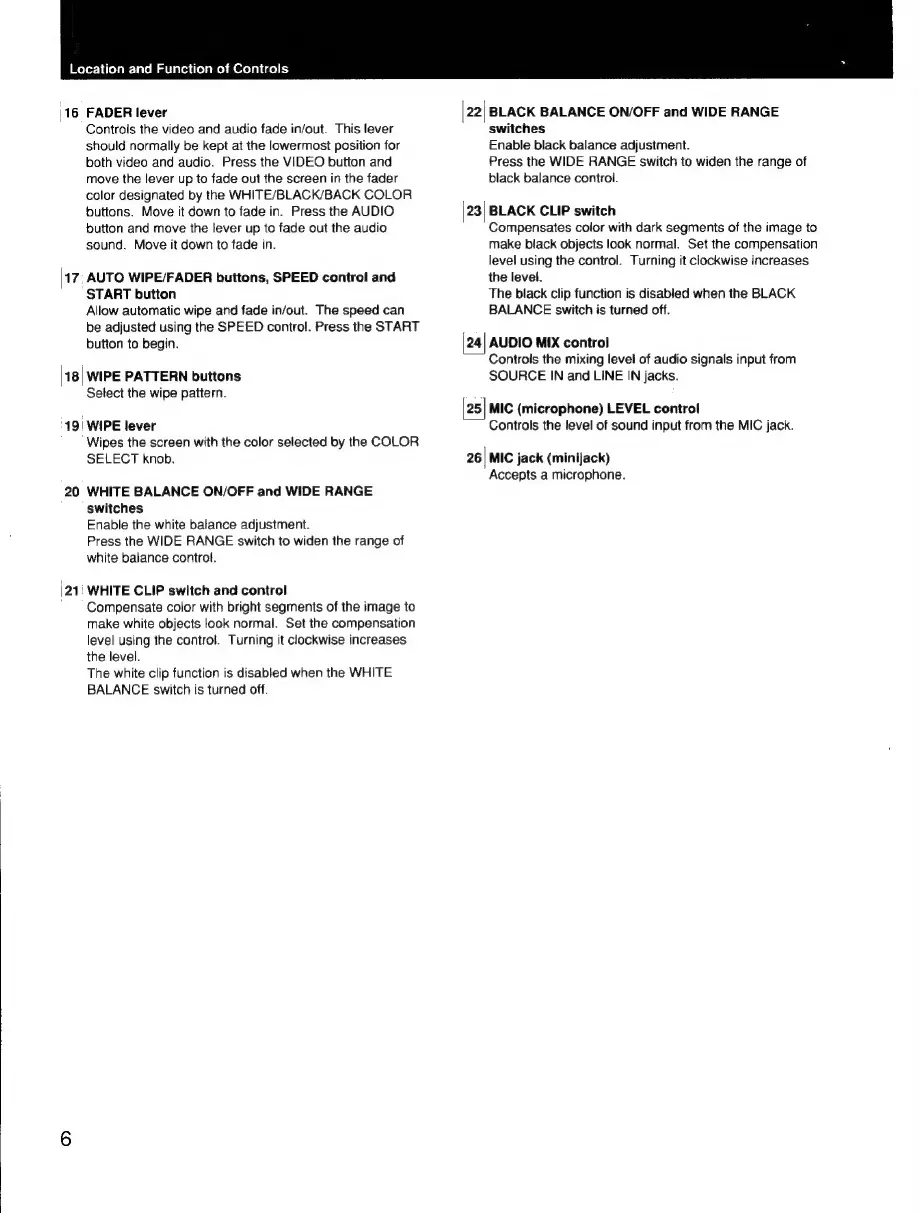

Location and Function of Controls
|16 FADER lever
Controls the video and audio fade in/out. This lever
should normally be kept at the lowermost position for
both video and audio. Press the VIDEO button and
move the lever up to fade out the screen in the fader
color designated by the WHITE/BLACK/BACK COLOR
buttons. Move it down to fade in. Press the AUDIO
button and move the lever up to fade out the audio
sound. Move it down to fade in.
|17. AUTO WIPE/FADER buttons, SPEED control and
START button
Allow automatic wipe and fade in/out. The speed can
be adjusted using the SPEED control. Press the START
button to begin.
|18| WIPE PATTERN buttons
Setect the wipe pattern.
‘19! WIPE lever
‘Wipes the screen with the color selected by the COLOR
SELECT knob.
20 WHITE BALANCE ON/OFF and WIDE RANGE
switches
Enable the white balance adjustment.
Press the WIDE RANGE switch to widen the range of
white balance control.
|21: WHITE CLIP switch and control
‘' Compensate color with bright segments of the image to
make white objects look normal. Set the compensation
level using the control. Turning it clockwise increases
the level.
The white clip function is disabled when the WHITE
BALANCE switch is turned off.
|22| BLACK BALANCE ON/OFF and WIDE RANGE
switches
Enable black balance adjustment.
Press the WIDE RANGE switch to widen the range of
black balance control.
|23| BLACK CLIP switch
Compensates color with dark segments of the image to
make black objects look normal. Set the compensation
level using the control. Turning it clockwise increases
the level.
The black clip function is disabled when the BLACK
BALANCE switch is turned off.
24| AUDIO MIX control
Controls the mixing level of audio signals input from
SOURCE IN and LINE IN jacks.
25| MIC (microphone) LEVEL control
Controls the level of sound input from the MIC jack.
26 | MIC jack (minijack)
Accepts a microphone.
