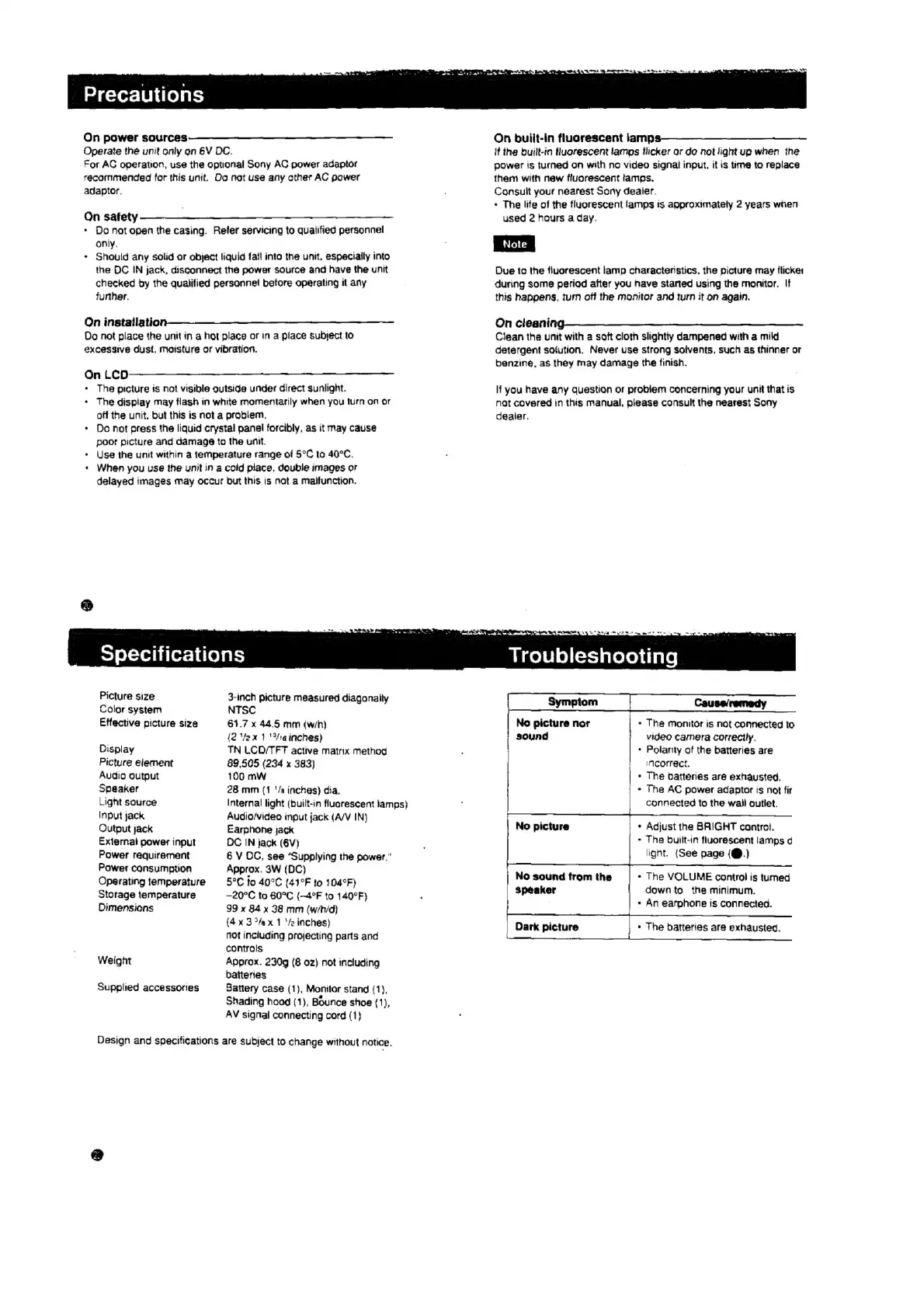

Sony XV-M30 - Precautions and Cleaning; General Precautions; Cleaning Instructions

Taster: er ile) ats
On power sources
Operate the unit only on 6V DC.
For AC operation, use the optional Sony AC power adaptor
recommended for this unit. Oa not use any ather AC power
adaptor.
On safety
- Do not open the casing. Refer servicing to quaiified personnel
only,
* Should any solid or object liquid fail into the unit, especially into
the DC IN jack, disconnect the power source and have the unit
checked by the qualified personnel betore operating it any
further.
On installation —__—_—_—__———————_ _—_—_—
Do not place the unit in a hot place or in a place subject to
excessive Gust, moisture or vibration.
On LCD
- The picture is not visible outside under direct sunlight.
* The display may flash in white momentarily when you turn on or
off the unit. but this is not a problem.
> Do not press the liquid crystal panel forcibly, as it may cause
poor picture and damag@ to the unit.
- Use the unit within a temperature range of 5°C to 40°C.
+ When you use the unit in a cold piace, double images or
delayed images may occur but this is not a malfunction.
On buiit-in fluorescent jamps——_—_—_—_____—_
if the ouilt-in fluorescent lamps flicker o7 do not light up when ihe
power is turned on with no video signal input, it is time to replace
them with new fluorescent lamos.
Consult your nearest Sony dealer.
* The life of the fluorescent lamps ts approximately 2 years when
used 2 hours a day.
Due to the fluorescent lamp charactenstics, the picture may flicker
during some period after you have started using the monitor. If
this happens, turn otf the monitor and turn it on again.
On cleani
Clean the unit with a soft cloth slightiy dampened with a mild
datergent sofution. Never use strong solvents, such as thinner or
benzine, as they may damage the finish.
If you have any question or problem concerning your unit that is
not covered in this manual, please consult the nearest Sony
dealer.
®
Specifications
Picture size 3-inch picture measured diagonally
Color system NTSC
Etfective picture size 61.7 x 44.5 mm (wih}
{2 Vox 1 '3/6 inches}
Display TN LCD/TFT active matrix method
Picture element 88,505 (234 x 383}
Audio output 106 mW
Speaker 28 mm (1 '/s inches) dia.
Light source Internal light (built-in fluorescent lamps}
INput jack Audio/video input jack (A/V IN)
Output jack Earphone jack
External power input DC IN jack (6V)
Power requirement 6 V OC, see “Supplying the sower."
Power consumption Approx. 3W (DC)
Operating temperature — 5°C fo 40°C [41°F to 104°F)
Storage temperature —20°C to 60°C (—-4°F to 140°F)
Dimensions 99 x 84 x 38 mm (wih/d)}
(4x 3 %/ax 1 '/2 inches)
not inciuding projecting parts and
controls
Weight Approx. 230g (8 oz) not including
batteries
Supplied accessories Battery case (1}, Monitar stand (1),
Shading hoad (1), Bounce shoe (1),
AV signal connecting cord (1)
Design
and
specifications
are
subject
to
change
without
notice.
Symptom | Couseiremedy
No picture nor » The monitor is not connected to
sound video Camera correctly.
» Polarity of the batteries are
incorrect.
The batteries are exhausted.
The AC power adaptor is not fir
connected to the wail outlet.
Adjust the BRIGHT contro.
The built-in fluorescent lamps
light. (See page (@.)
The VOLUME control is turned
speaker down to the minimum.
* An earphone is connected.
No sound trom the
Dark picture - The batteries are exhausted.
