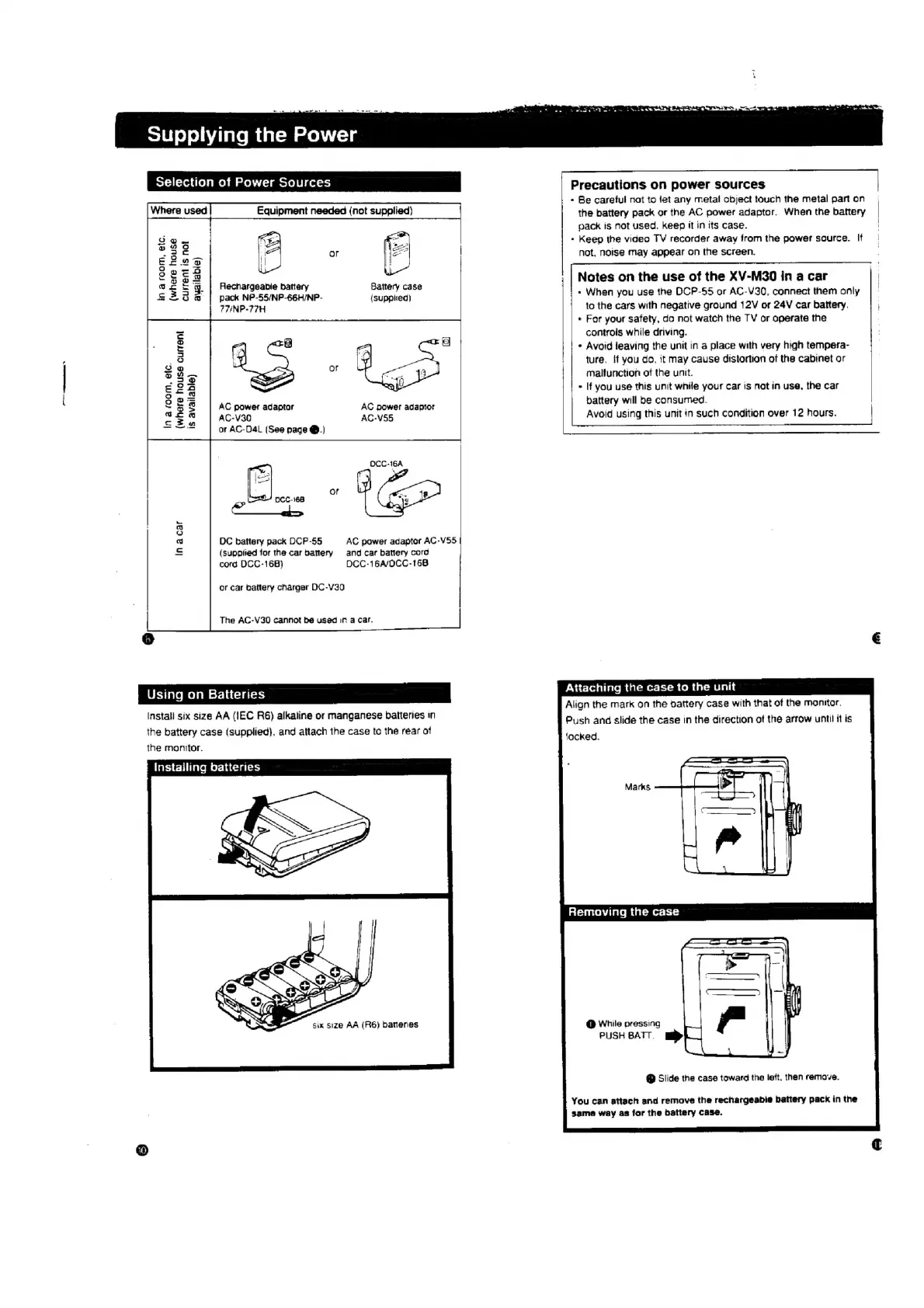

supplying the Power
Selection of Power Sources
Equipment needed (not supplied}
285
pee or
Efe
efta
oe = gy. Rechargeabie battery Battery case
£23 % | pack NP-55/NP-66H/NP- (supplied)
77iINP-77H
S <8
5
_ 9
Za or
og .
efs
82%
: 3 s AC power adaptor AG power adaptor
s=® | ac-v30 AC-V55
Soe or AC-D4L (See page @.)
| :
| + DoC-168
i 8
) DC battary pack DCP-55 AC power adaptor AC-V55 |
& (supplied for the car battery and car battery cord
cord DCC-168) DCC-16A4/DCC-16B
or car battery charger DC-V30
The AC-V30 cannot be used in a car.
Using on Batteries
Install six size AA (IEC R6) alkaline or manganese batteries in
the battery case (supplied), and attach the case to the rear of
the monitor.
Instailing batteries
Precautions on power sources
- Be careful not to fet any metal object touch the metal part on
the battery pack or the AC power adaptor. When the battery
pack is not used. keep it in its case.
- Keep the video TV recorder away from the power source. If
not, noise may appear on the screen.
Notes on the use of the XV-M30 in a car
« When you use the DCP-55 or AC-V30, connect them only
to the cars with negative ground 12V or 24V car battery.
+ For your safety, do not watch the TV or operate the
controls while driving.
* Avoid leaving the unit in a place with very high tempera-
ture. ff you do, it may cause distortion of the cabinet or
malfunction of the unit.
- If you use this unit while your car is not in use, the car
battery will be consumed.
Avoid using this unit in such condition over 12 hours.
Attaching the case to the unit
Align the mark on the battery case with that of the monitor.
Push and slide the case in the direction of the arrow until it is
flocked.
Removing the case
@ While pressing
PUSH BATT.
@ Slide the case toward the left. then remove.
You can attach and remove the rechargeable battery pack in the
same way as for the battery case.
