Sony XVS Series

14

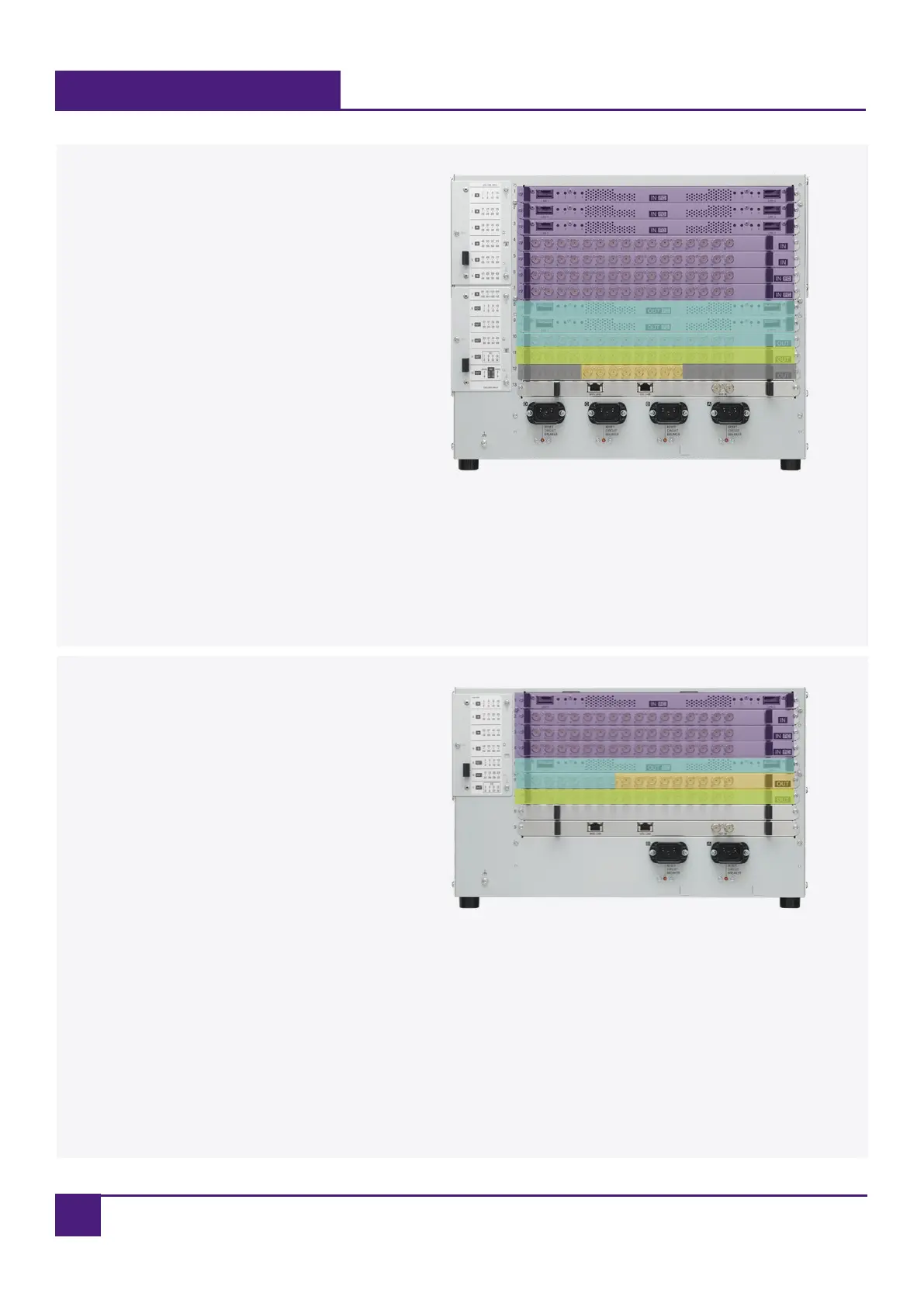

Configuration Options
XVS-7000
The XVS-7000 can be configured as follows:
• Up to 7 I/P boards – max 112 (HD) or
28 (UHD) inputs
• Up to 5 O/P boards – max 48 (HD) or
12 (UHD) outputs
• Each of the first three output boards
provides 16 (HD) or 4 (UHD)
assignable outputs)
• The fourth output board provides
dedicated outputs from the internal
format converter board (XKS-8460)
• The final board provides two multiviewer
outputs in HD or UHD
XVS-6000
The XVS-6000 can be configured as
follows:
• Up to 4 I/P boards – max 64 (HD) or
16 (UHD) inputs
• Up to 3 O/P boards – max 24 (HD) or
6 (UHD) outputs
• The outputs are arranged as follows:
on the first board are assignable
outputs 1-16, on the second board
are assignable outputs 17-24 plus
multiviewer outputs , on the third
board are dedicated outputs from the
internal format converter board
(XKS-8460)
PRIMARY INPUTS
(1-160)
Assignable O/P (1-16)
Assignable O/P (17-32)
Assignable O/P (33-48)
FC OUTPUTS (1-16)
Spare
Spare
MV OUT (1-2)
PRIMARY INPUTS
(1-64)
Assignable O/P 1-16
Ass OP (17-24)
FC Outputs (1-16)
MV OUT (1-2)
