Input/Output Options
The XVS series switchers have extremely flexible I/O options; each slot can be configured independently with
SDI (3G / 12G) or IP interfaces. SDI options are shown first – for IP options go to page 5.
• HD: The board provides 16 HD inputs
• UHD: The board supports 4 (quad) inputs
• HD: provides 16 inputs, all of which support pre-processing
• UHD: 4 (quad) inputs all of which support pre-processing. When up-converting an HD input to UHD, only the signals
connected to I/Ps 1, 5, 9 & 13 can be up-converted

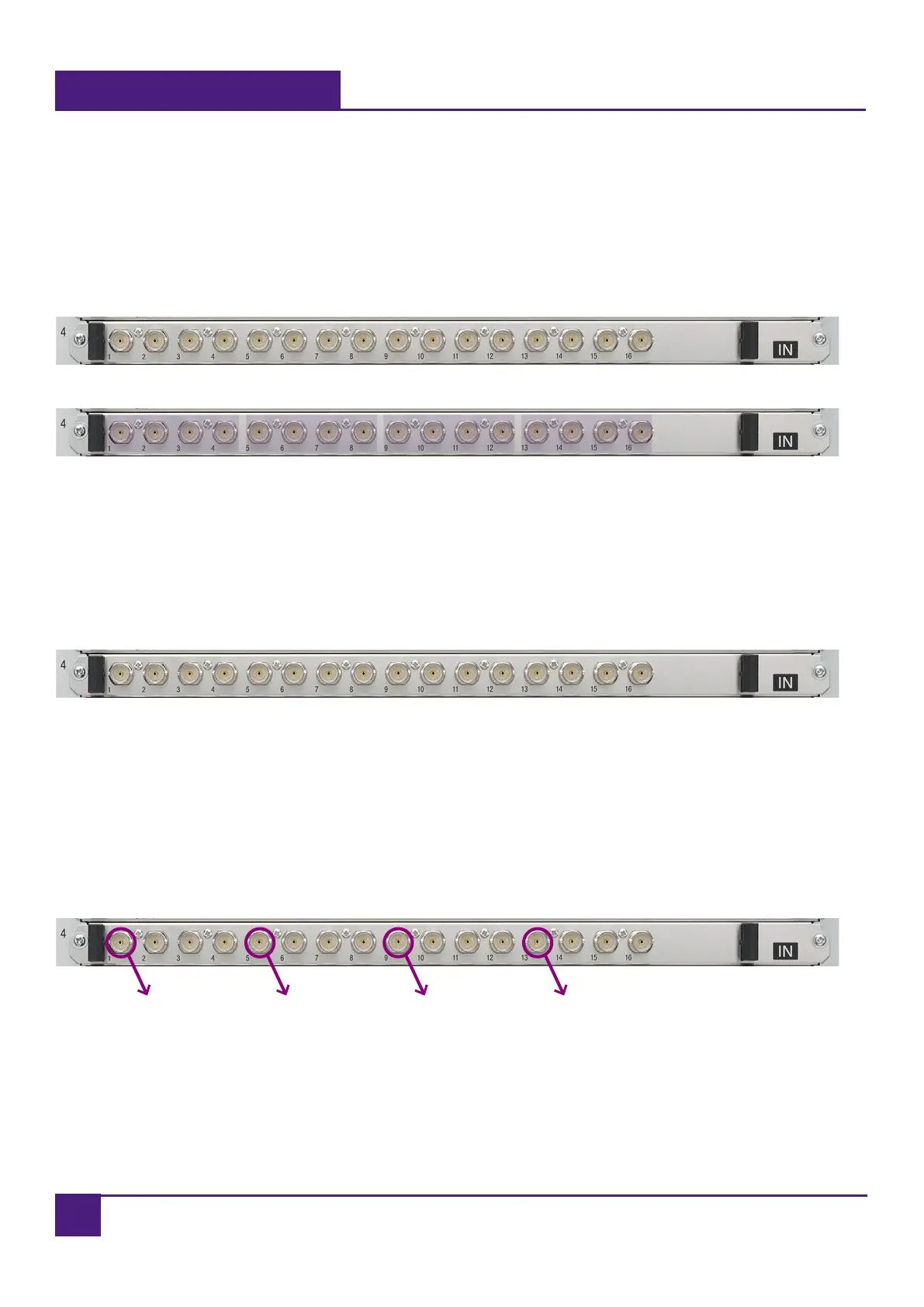

XKS-S8111
The XKS-S8111 input board is an SDI input board with pre-processing capabilities, physically identical to the
XKS-S8110. Pre-processing features include format conversion, frame synchronisation, full colour correction and
frame delay (adjustable from 1 to 8 frames).
SDI Input Boards for XVS-6000, 7000 & 8000
XKS-S8110
The XKS-S8110 is a simple SDI input board having BNC connectors with no additional pre-processing capabilities.
I/P 1
I/P 1
12G
I/P 2
I/P 2
12G
I/P 3
I/P 3
12G
I/P 4
I/P 4
12G
XKS-S8112
The XKS-S8112 is a 12G SDI input board with pre-processing capabilities including include format
conversion, frame synchronisation, colour correction and frame delay. It will also accept a 12G UHD SDI signal
on I/Ps 1, 5, 9 & 13.
• HD: provides 16 inputs, all of which support pre-processing
• UHD: 4 x 12G inputs all of which support pre-processing
• When up-converting an HD input to UHD, only the signals connected to I/Ps 1, 5, 9 & 13 can be up-converted
