ZS-YN7

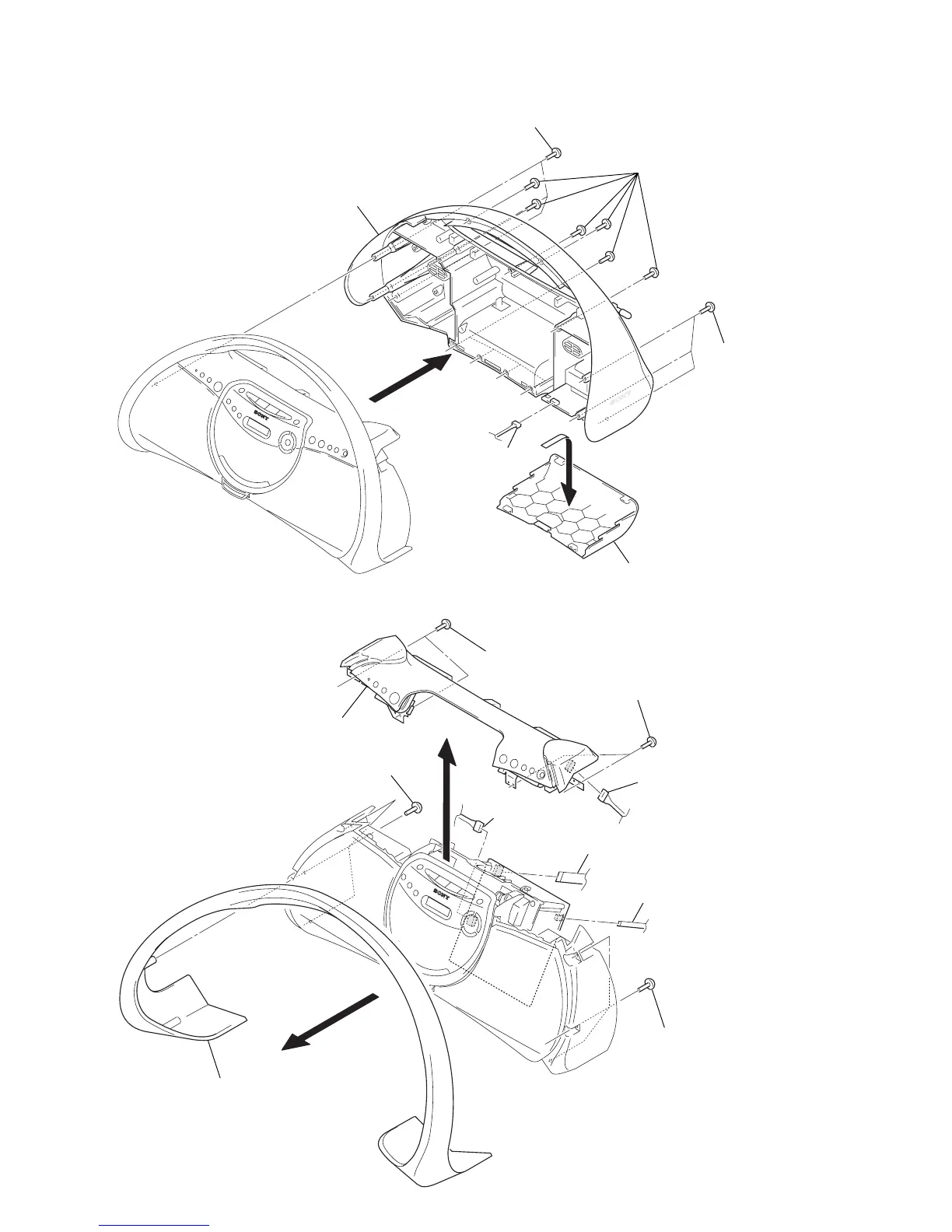

Note: Follow the disassembly procedure in the numerical order given.
3-2. CABINET REAR ASSY
3-3. CABINET (UPPER)
7 cabinet rear assy
1 battery lid
6 connector
(CN902)
2 three screws
(B2.6)
3 three screws
(B2.6)
4 nine screws
(B2.6)
5
1 three screws
(B2.6)
2 three screws
(B2.6)
3 handle (front)
4 flexible flat cable (6core)
(CN804)
6 connector
(CN301)
7 connector
(CN322)
5 flexible flat cable (3core
)
(CN802)
8 two screws
(B2.6)
9 two screws
(B2.6)
0 cabinet (upper)
