Folding Storage / Maintenance And Maintenance

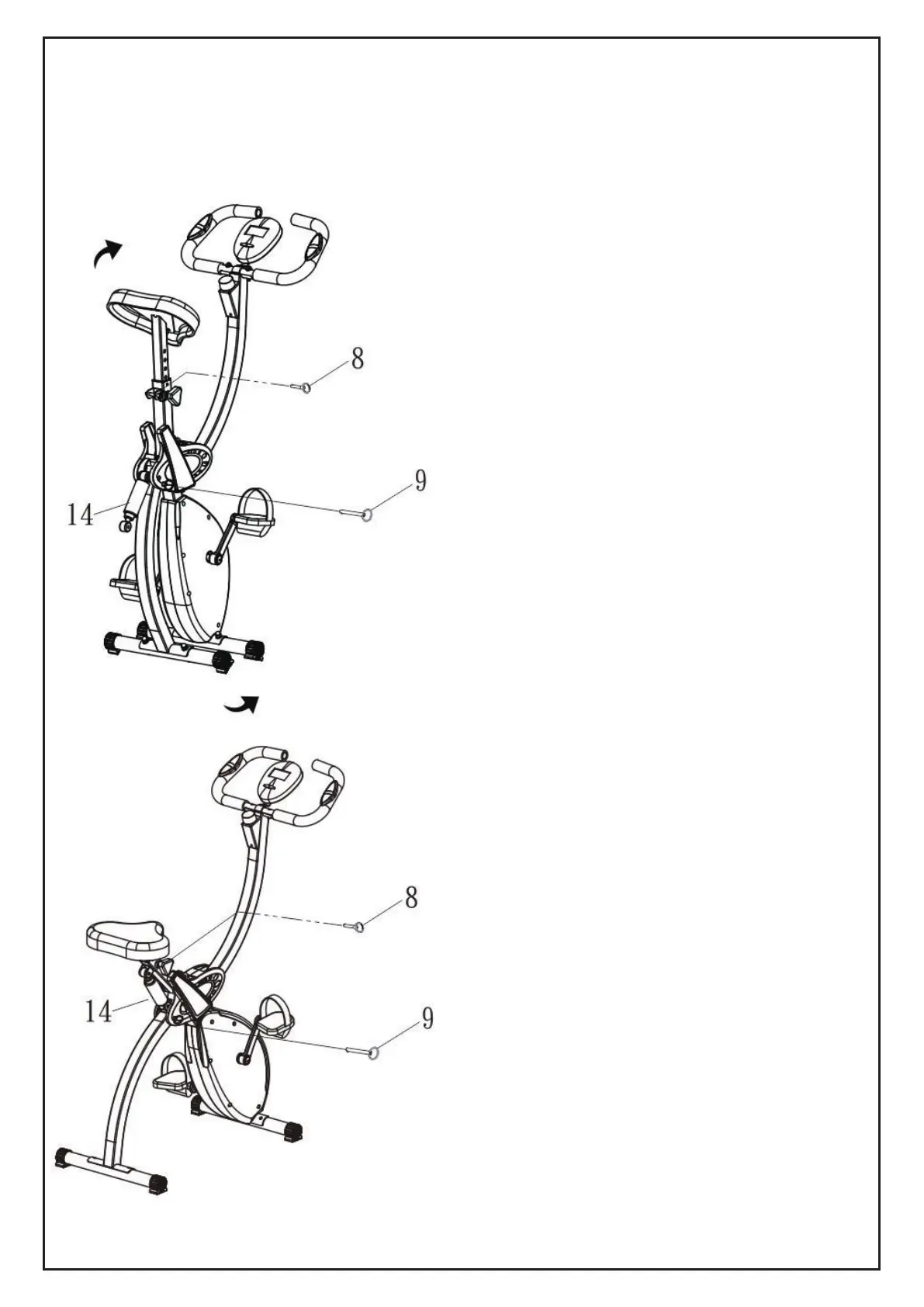

Folding main frame
Remove the mounting on the main
frame (# 9 latch (long)), remove the
fixed latch (short) # 8, when removing
the latch (short) # 8, put the hydraulic
cylinder # 14 in place, as shown Fold
and fold, please keep the product
fixed after folding, it is recommended
to place it horizontally to avoid
collision, causing fall or accident
Expand main frame
Remove the (# 9 dongle (long)) as shown
in the figure, remove the fixed bolt (short)
# 8, and take off the hydraulic cylinder
# 14 when removing the bolt (short) # 8.
After folding, please keep the product in
place. It is recommended to place it
horizontally to avoid collision, resulting
in falling or accident.
