5
Step three: assemble the cushion
Remove the (# 10 seat cushion) pre-assembled (# 12flat cushion) and
(# 13 flight cap). Install the seat cushion on the (# 11 seat tube telescopic
tube), and use an open-end wrench to fix and lock the flat cushion and
the nut.

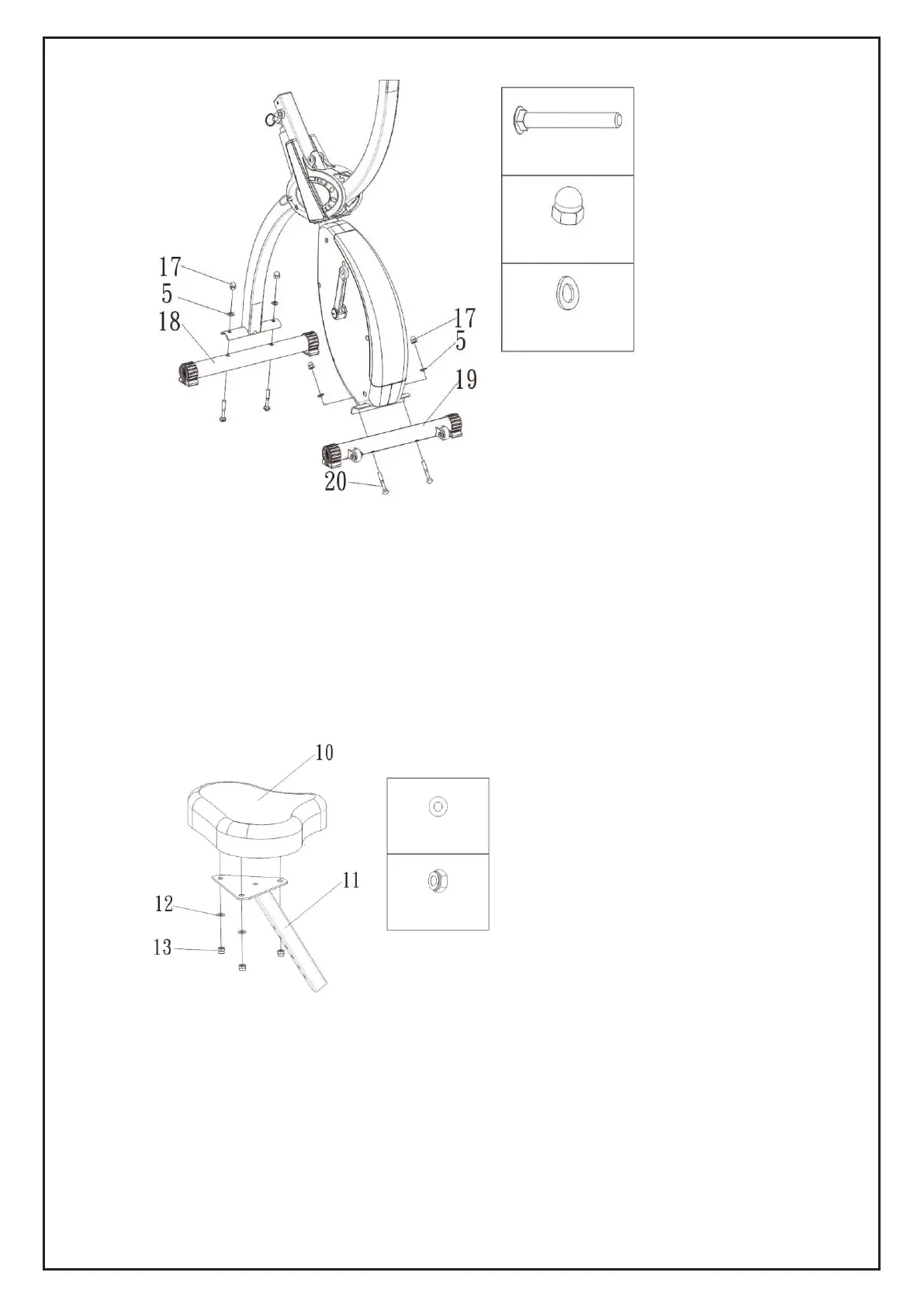

Step two: assemble the tripod
Use arc washer # 5, semi-circular head square neck screw # 20 and M8 cap
nut to connect and lock the rear foot tube # 18 to the main frame.
Use arc washer # 5, semi-circular head square neck screw # 20 and M8
cover nut to connect and lock front foot tube # 19 to the main frame.
20 :Round head
square neck screws
17: M8 cover nut
5: Curved gasket
12: Φ8.2 Gasket
13: M8 nut
