7
Assembly instructions

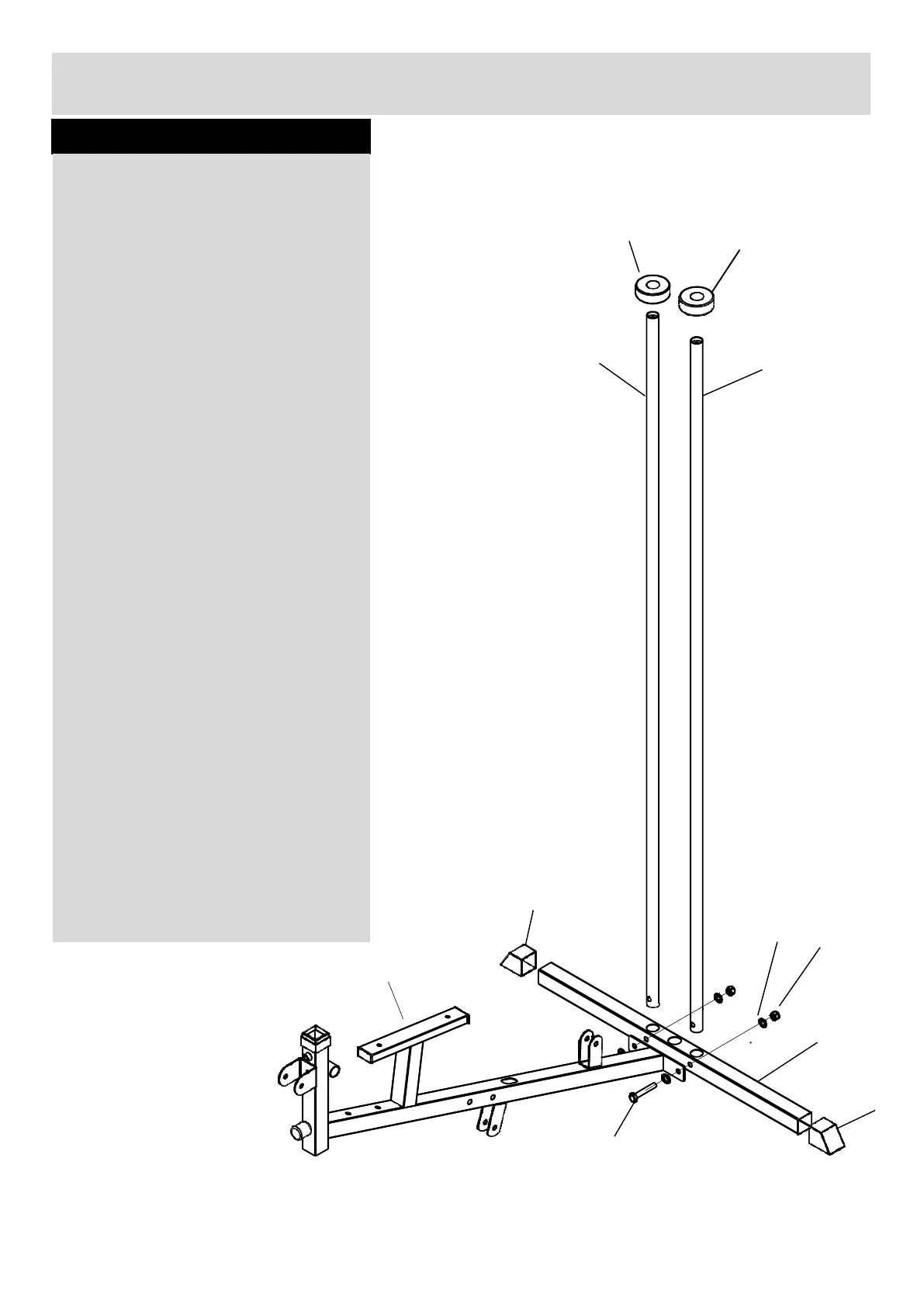

Step 1
Attach rear of the base frame (1) to
the Rear stabilizer (4). Fix using M10
×65bolts( 49)
,
Φ10 Washers (61)
and M10 nuts
(63)
Insert the Guide rods (18) into the
holes on the Rear stabilizer (4).
Slide 61mm Rubber bumpers (29)
down onto Guide rods (18).
29
29
18
18
21
1
61
63
4
21
49
1
× 4×
× 2
× 2
Fully tighten bolts.
Align the holes.
Note-The two M10X60 bolts(50)should be put
through the holison Guide Rods(18)as well.
.
To Next Page
