Sophos Access Points User Manual

Operating Instructions
9
Wireless Access Points
AP 30

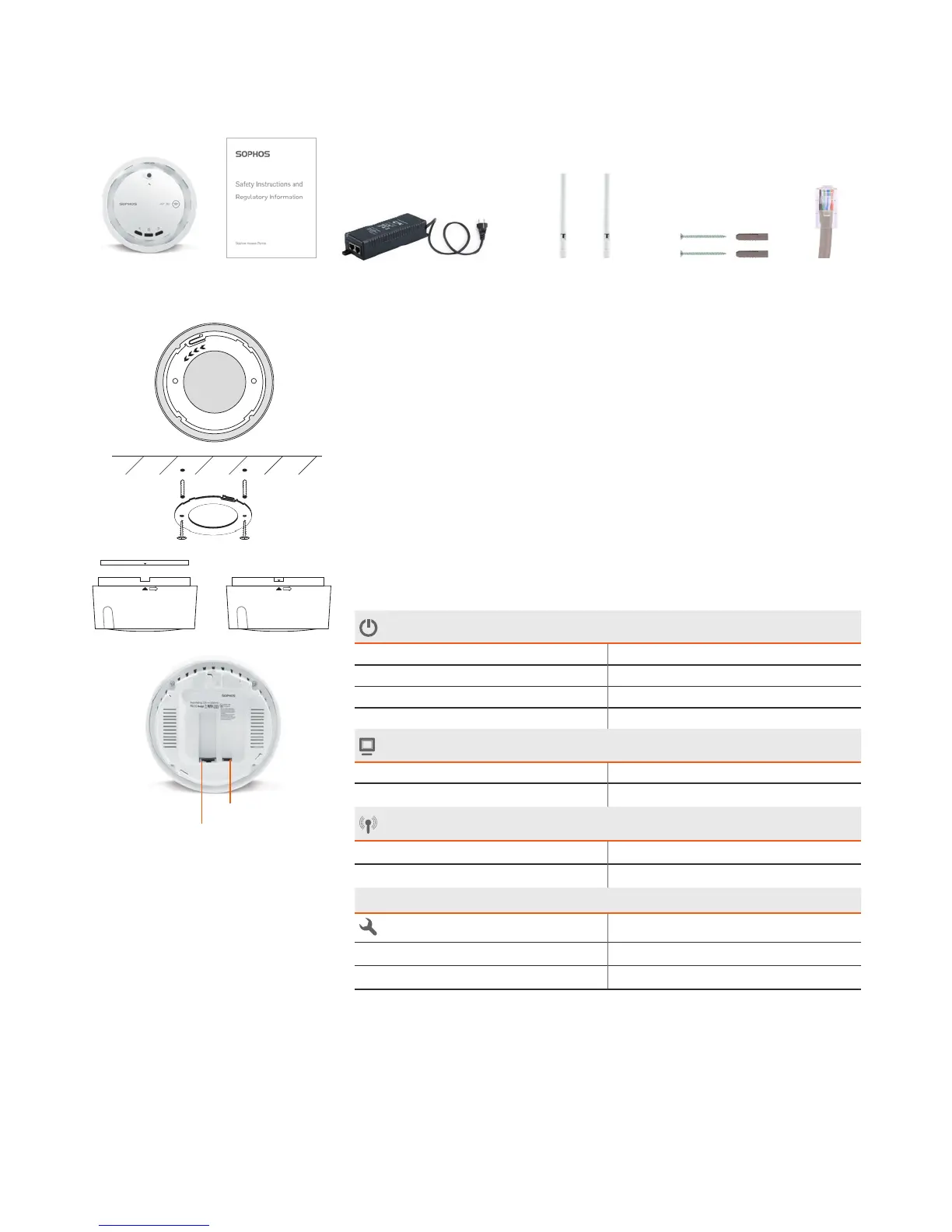

Scope of supply
Mounting instructions
The Sophos AP 30 can be mounted on the ceiling. Screws are included in delivery.
Use the screws from the scope of supply or screws whose dimensions correspond
with the mounting holes in the bracket.
1. Remove the bracket from the housing
Unlock the bracket on the backside by turning it (approx. 5°)
counter-clockwise. Then you can take off the bracket.
2. Mount the bracket on the ceiling
Use the screws and anchors from the scope of supply.
3. Place the access point on the bracket
Place the housing on the bracket and lock it by turning clockwise until stop.
Controls
Power (LED display)
Off Power off
On continuously Power on
Blinking rapidly Firmware update
Blinking slowly No connection to the Sophos UTM
LAN connection (LED display)
On continuously Network connection, no activity
Blinking Network activity
WLAN access (LED display)
On continuously Network connection, no activity
Blinking Network activity
Interfaces and buttons
Reset
Currently not supported
Ethernet 10/100 Base-TX interface
12 V DC IN Power
Power
10/100 Base-TX
Sophos AP 30 Security Notes Power-over-Ethernet (PoE)
injector + power cord
2 Detachable dipole antenna Ethernet cable2 screws and dowels
