Sophos RED 10 User Manual

Operating Instructions
3

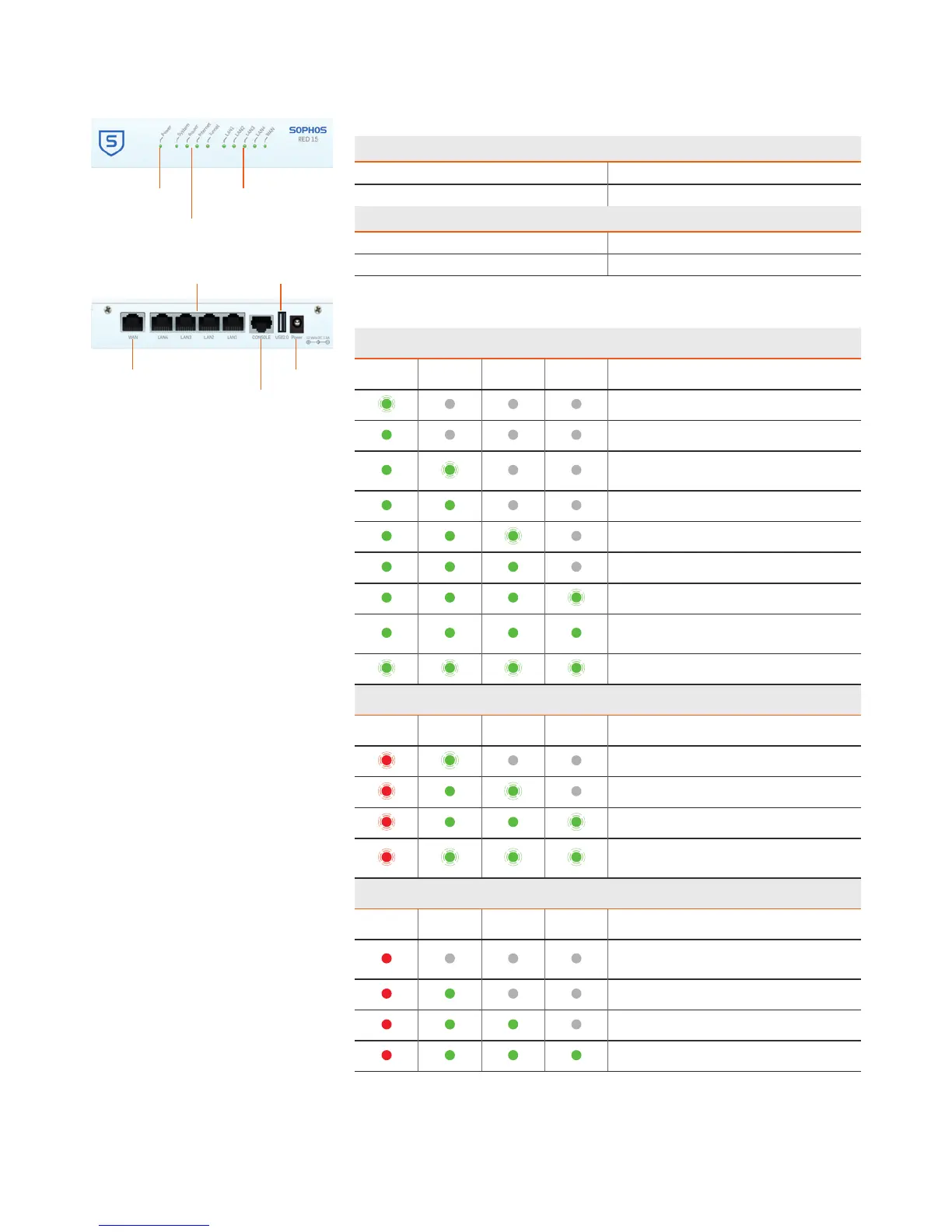

Sophos RED Appliances
Controls and LED Codes
Controls
Power
Off Power off
On continuously Power on
LAN connection
On continuously Network connection, no activity
Blinking Network activity
LED codes
LED booting codes
System Router Internet Tunnel Description
The RED device is booting
The RED device has finished booting
The RED device is connecting to
the default gateway/ router
The default gateway/router is reachable
The RED device is connecting to the Internet
The connection to the Internet has been established
The RED device is connecting to the UTM appliance
The connection to the UTM appliance
has been established
The RED device is installing a new firmware
LED GSM/UMTS failover codes
System Router Internet Tunnel Description
GSM/UMTS failover is active
The default gateway/router is reachable
The connection to the Internet has been established
The connection to the UTM appliance
has been established
LED error codes
System Router Internet Tunnel Description
DHCP or static address settings failed,
default gateway not reachable
Internet not reachable
No connection to UTM appliance
No configuration or firmware update failed
Status signal
10/100/1000
Base-TX ports
Power
1 x 10/100/1000
Base-TX ports
4 x 10/100/1000
Base-TX ports
Power
1 x USB port
Console

Sophos RED 10 Specifications

General

Brand	Sophos
Model	RED 10
Category	Network Hardware
Language	English
