Sophos RED Appliances Operating Instructions

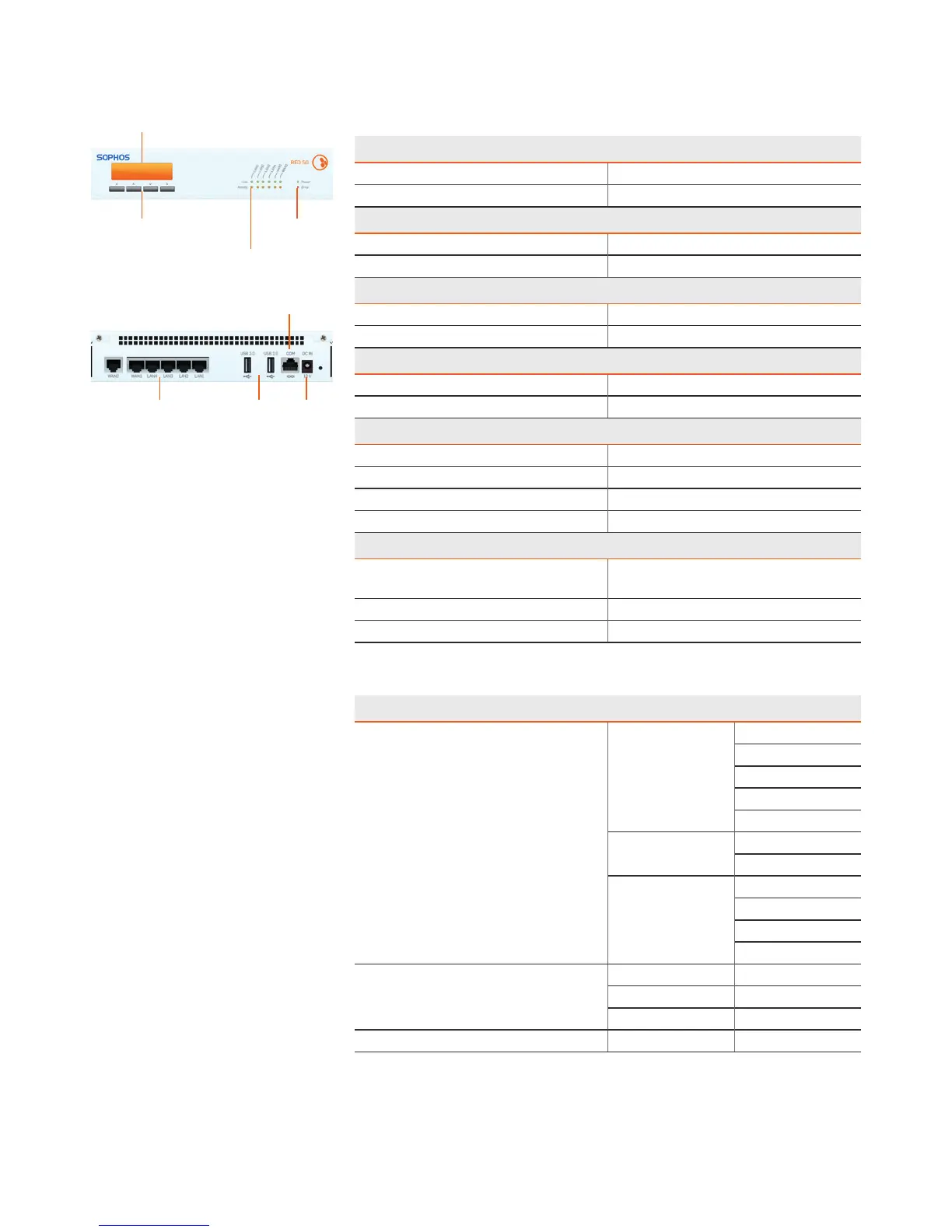

Controls and LCD messages
Controls
LEDs
Power
Off Power off
On Power on
Error
Off No error
On Error
LAN/WAN connection
Link (on continuously) Link established
Activity (flashing) Network activity
LCD and keys
LCD Display of 2 rows x 20 characters
Navigation keys 4 x keys to cycle through the LCD menu
Interfaces
WAN1-WAN2, LAN1-LAN4 6 x 10/100/1000 Base-TX interface
USB 2.0 2 x USB 2.0 interface
COM Serial console interface
DC IN 12 V Power
LCD messages
Booting up The RED device is booting
Shutting down The RED device is shutting down
Starting RED
ID $RED_ID
The RED device is starting (the displays shows
the RED ID as printed on the product label)
Starting RED
Network Setup
The RED device is configuring DHCP or a static setup
Starting RED
Try $uplink
The RED device is connecting to the
displayed uplink (wan1, wan2, or umts)
Starting RED
UTM $hostname
The RED device is connecting to the UTM appliance
Got new config The RED device has received a new configuration
Tunnel is up ($uplink)
UTM $hostname
The RED tunnel has been established; $uplink
can be wan1, wan2, or umts; $hostname can be
hostname or IP address of UTM appliance
ERROR
Invalid device ID
The RED device has not been provisioned correctly
Error
Power
Serial
console
USB 2.0 ports
LCD
10/100/1000 Base-TX ports
Navigation keys
10/100/1000 Base-TX ports LEDs
Power/Error LED
