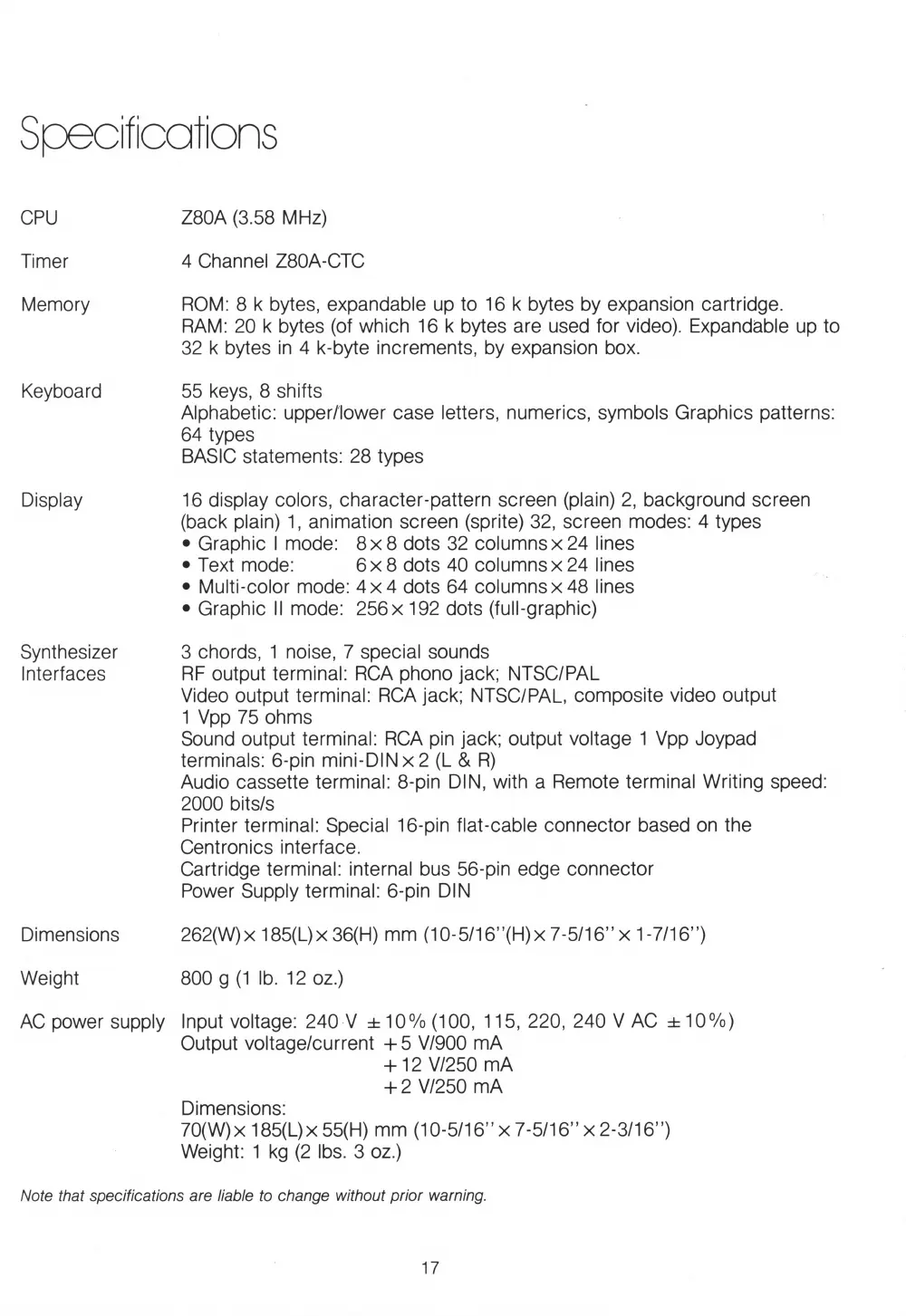

Specifications
CPU
Z80A (3.58 MHz)
Timer 4 Channel Z80A-CTC
Memory ROM: 8 k bytes, expandable up to 16 k bytes by expansion cartridge.
RAM: 20 k bytes (of which 16 k bytes are used for video). Expandable up to
32 k bytes in 4 k-byte increments, by expansion box.
Keyboard
55 keys, 8 shifts
Alphabetic: upper/lower case letters, numerics, symbols Graphics patterns:
64 types
BASIC statements: 28 types
Display
16 display colors, character-pattern screen (plain) 2, background screen
(back plain) 1, animation screen (sprite) 32, screen modes: 4 types
• Graphic I mode: 8x8 dots 32 columnsx24 lines
• Text mode: 6 x 8 dots 40 columns x 24 lines
• Multi-color mode: 4x4 dots 64 columnsx48 lines
• Graphic II mode: 256 x 192 dots (full-graphic)
Synthesizer
Interfaces
3 chords, 1 noise, 7 special sounds
RF output terminal: RCA phono jack; NTSC/PAL
Video output terminal: RCA jack; NTSC/PAL, composite video output
1 Vpp 75 ohms
Sound output terminal: RCA pin jack; output voltage 1 Vpp Joypad
terminals: 6-pin mini-DINx2 (L & R)
Audio cassette terminal: 8-pin DIN, with a Remote terminal Writing speed:
2000 bits/s
Printer terminal: Special 16-pin flat-cable connector based on the
Centronics interface.
Cartridge terminal: internal bus 56-pin edge connector
Power Supply terminal: 6-pin DIN
Dimensions
262(W)x185(L)x 36(H) mm (10-5/16”(H )x7-5/16” x 1-7/16” )
Weight
800 g (1 lb. 12 oz.)
AC power supply Input voltage: 240 V ±10% (100, 115, 220, 240 V AC ±10%)
Output voltage/current +5 V/900 mA
+ 12 V/250 mA
+ 2 V/250 mA
Dimensions:
70(W) x 185(L) x 55(H) mm (10-5/16’’ x 7-5/16’’ x 2-3/16”)
Weight: 1 kg (2 lbs. 3 oz.)
Note that specifications are liable to change without prior warning.
