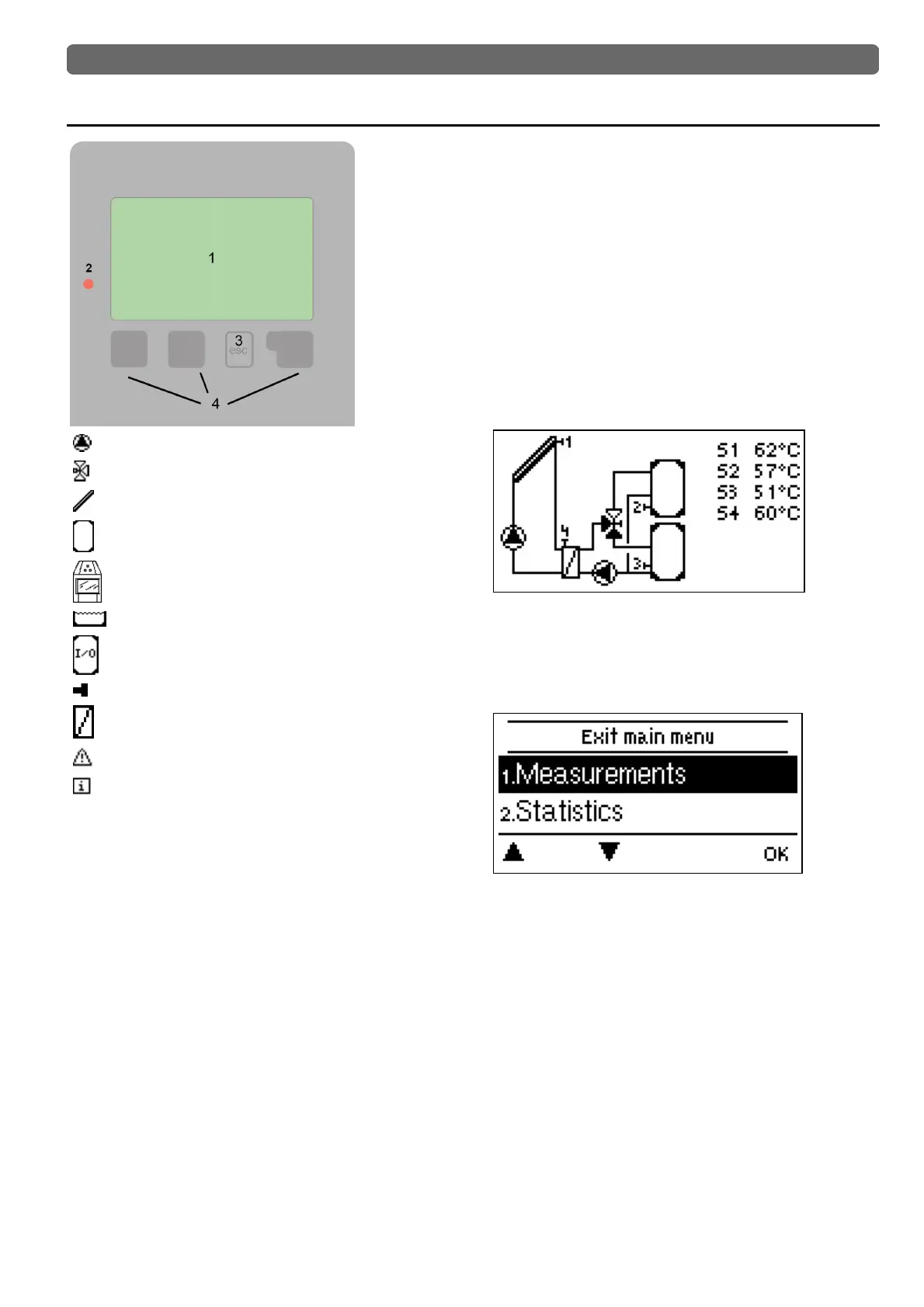

Operation
Display and Input
Pump (rotates when active)
Valve (direction of flow black)
Collector
Storage / buffer
Solid fuel boiler
Pool
Thermostat On/Off
Temperature Sensors
Heat exchanger
Warning/Error message
New information available
Further symbols can be found in the special
functions
The display‘s (1), extensive text and graphical mode,
enables simple, almost self-explanatory, operation of the
controller.
The LED (2) lights up green when a relay is switched on.
The LED (2) lights up red when operating mode ‚Off‘ is set.
The LED (2) flashes quickly red when an error is present.
Entries are made using 4 keys (3+4), to which contextual
functions are assigned. The ‚esc‘ key (3) is used to cancel
an entry or to exit a menu. If applicable, a request for con-
firmation appears to save the made changes.
The function of the other 3 keys (4) is shown in the display
right above the keys. The right-hand key generally has a con-
firmation and selection function.
The graphics mode appears if no key is pressed for 2
minutes or after exiting the main menu with ‘esc’.
The temperature overview appears when you press the.
left button. Tapping the button again leads back to
The graphic overview.
Hitting the "esc" key in the graphics mode takes you directly
to the main menu.
Examples for key settings:
+/- Increase / decrease values
▼/▲ Scroll down / up menu
Yes/No agree / reject
About further information
Back to the previous display
Ok Confirm selection
Confirm Confirm setting
13
